Installation
This chapter covers the physical mounting and connection of the SmartView
World.
Mounting
The initial step is to mount the SmartView World in an optimum position, where:
• It is in close proximity to the various computer systems that will be
connected to it.
• There is a power supply socket.
• There is an Ethernet connection for the remote IP section.
The SmartView World can be used on a desktop or mounted within a 19” rack.
For desktop applications, attach the supplied self-adhesive feet to the underside
to avoid damage to the desktop surface. For rack-mount applications, attach the
supplied brackets and mount the unit within the frame before connecting any
cables.

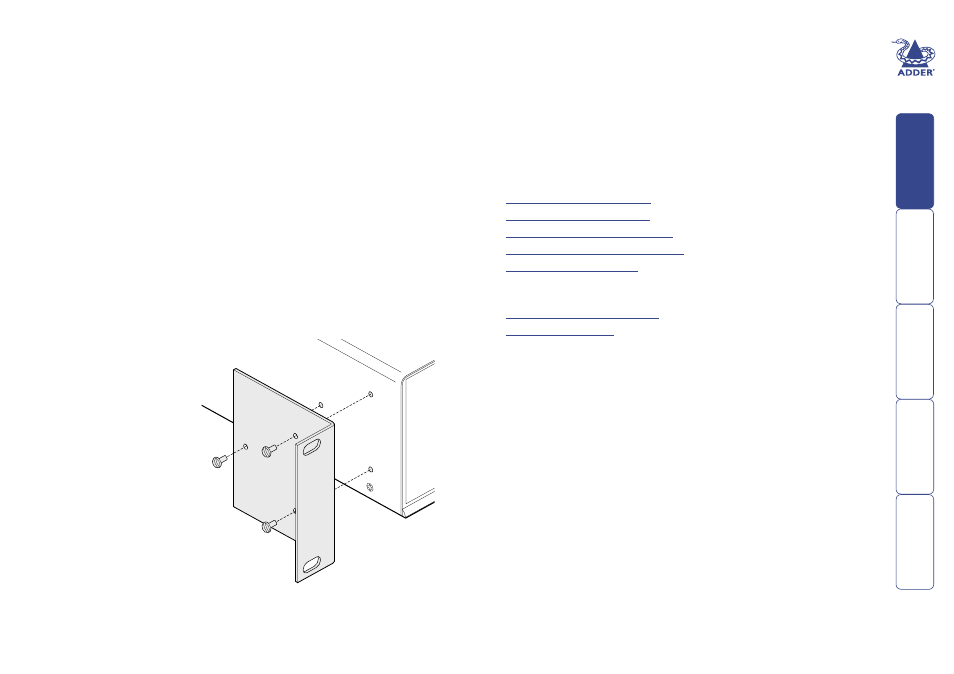

To attach the rack-mount brackets
1 On either side of the
SmartView World
casing, position a rack
mount bracket with
the slotted holes facing
out from the front of
the unit.
2 Secure the bracket
with three of the
supplied screws.
Connections
Installation of the SmartView World involves numerous connections, which can
be classified into the following basic groups:
•
•
•
Extended user port connections
•
Remote (IP) user port connections
•
There are also connections that can be made to achieve more advanced
configurations:
•
•
