Section 4: Electrical Installation
04/10 28 51205 Rev. 2

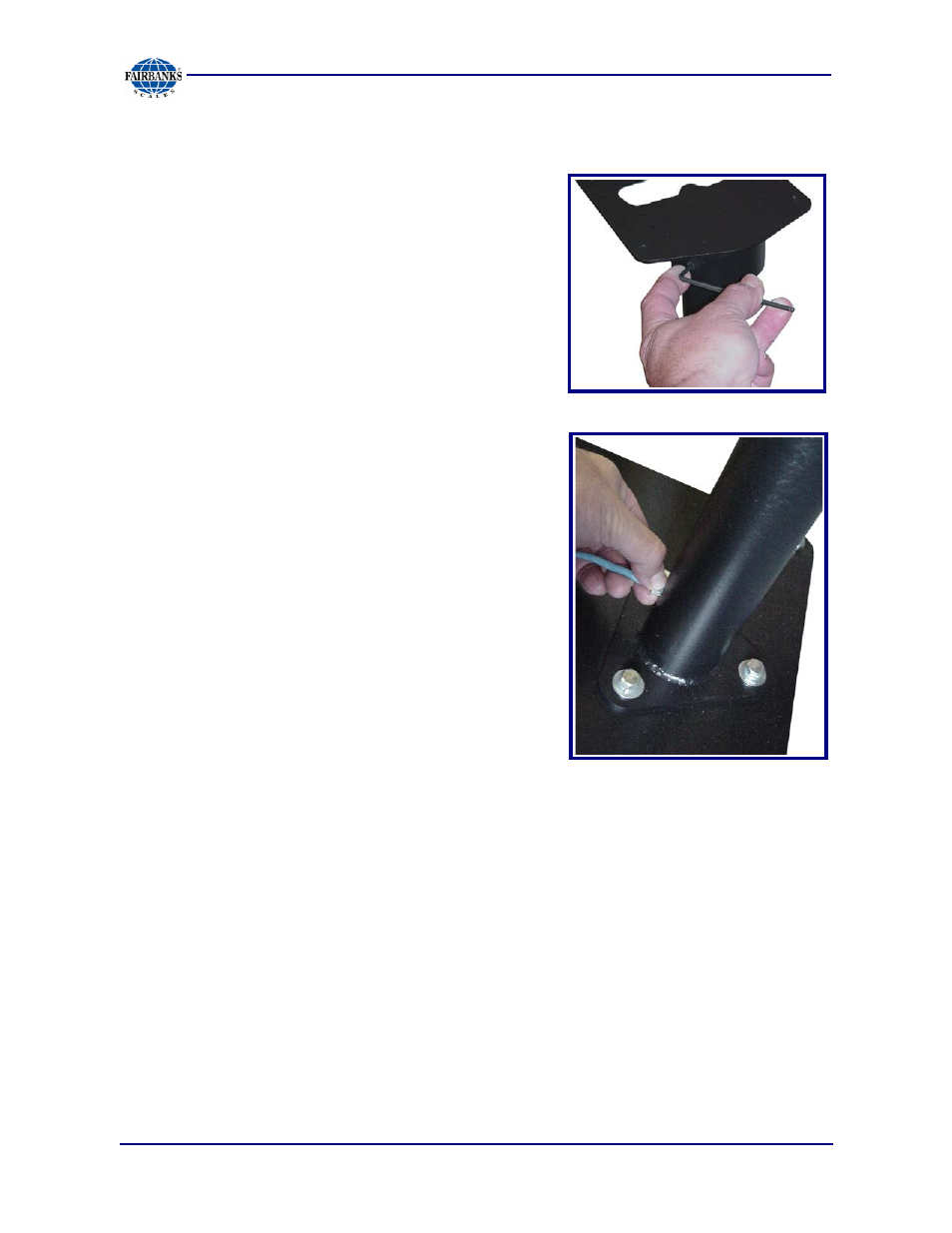

4.4.2. Pillar Installation Steps
1. To remove the Top Plate, loosen the three (3)
one quarter inch (¼”) Allen Screws.
2. Carefully run the Interface Cable into the bottom
Access Hole, up through the Pillar, and then
thread it out through the top Access Hole.
─ Allow extra cable slack to accommodate the
Instrument wiring.
3. Replace the Top Plate, then secure it into
position using the one eighth inch (
1
/
8
”)
Allen Wrench .
4. Install the Instrument Top Bracket, secure it with
the supplied hardware
5. Connect the Interface Cable to the Indicator.
─ Refer to the appropriate instrument service
manual for correct wiring information.
