Section 3: Scale Installation
04/10 17 51205 Rev. 2
3.2.5. Installing the Foundation
When the scale is installed on an existing flooring, the floor must be able to provide
adequate support.
─ Fairbanks Scales is not responsible for the integrity of the existing foundation.
1. Using the Fairbanks Prints, layout, position and level the Base Plates.
2. Grease and install the inner O-Ring into the Load Cell Cup.
3. Insert Load Cell Cup into the base plates.
4. Place the Load Cell Locating Tool next to each Base Plate.

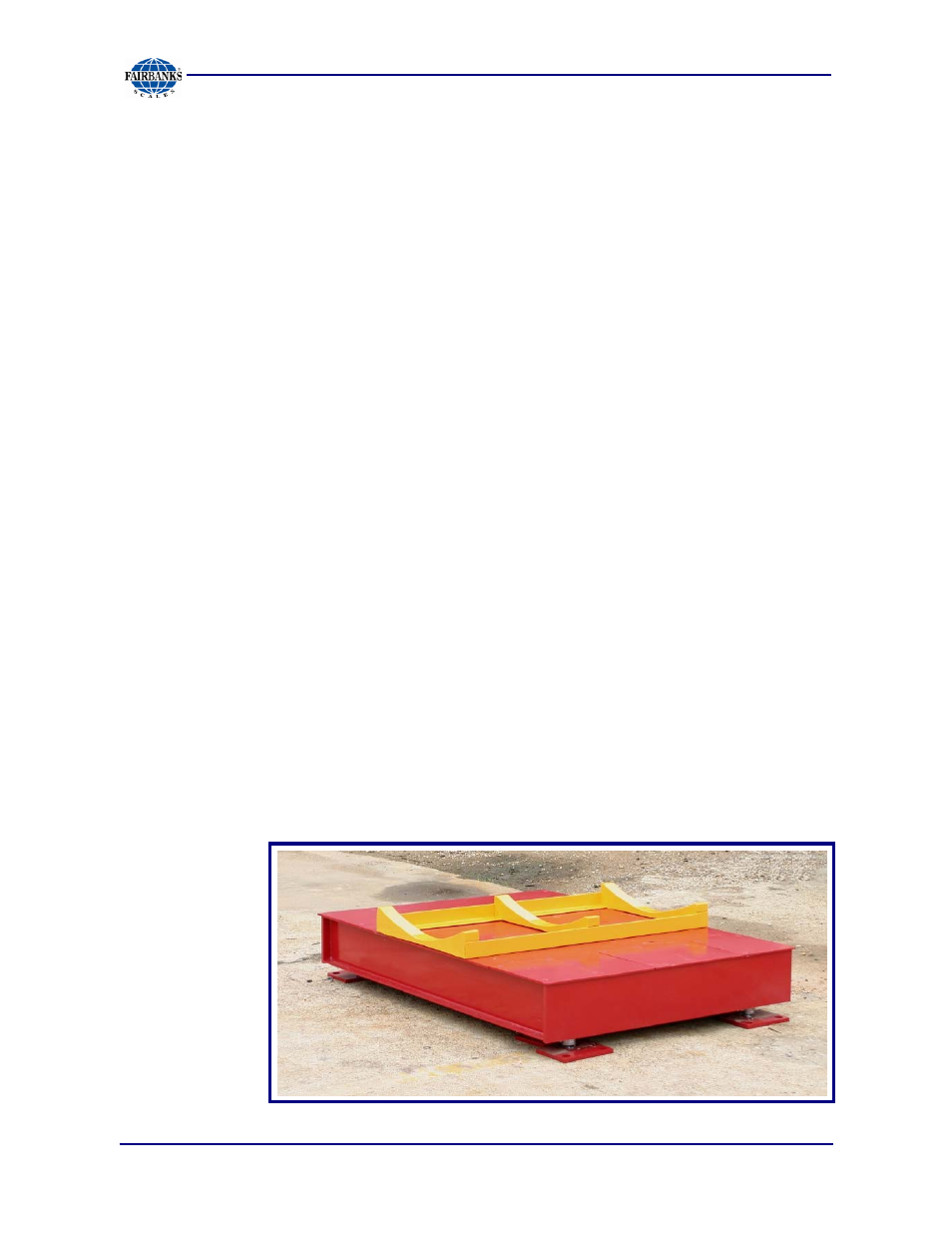

3.2.6. Installing the Platform
1. Place wooden cribbing blocks near the Scale, where the Platform will be placed.
─ The Platform will be set at a height slightly less than the Scale’s finished
height.
2. Place the hooks of the straps or chains into ALL four (4) of the lifting lugs welded
to the sides of the Platform.
─ No bolts are required.
─ The straps or chains should be long enough to form a 45° angle with the
platform while lifting.
3. Lift the Platform to a location above the four Load Cell Base Plates.
