Section 4: Electrical Installation
04/10 25 51205 Rev. 2
4.2.2. Load Cells to the SSC
NOTE: Used only for wiring Intalogix
™
Technology.

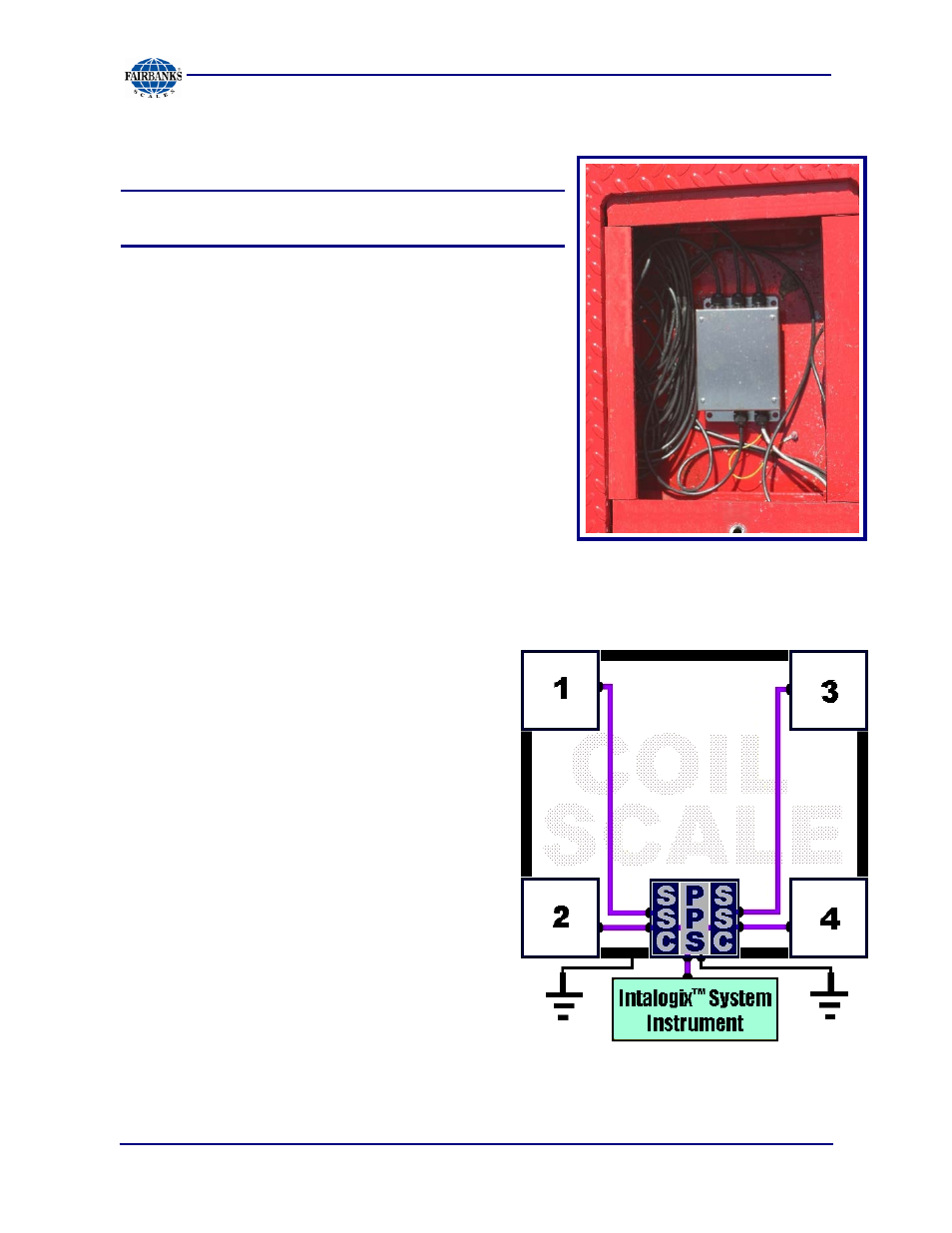

Wire load cells into each Smart Sectional
Controller (SSC) using the appropriate service
manual.
• The Intalogix™ SSC is optional, when used for
digital system
• SSCs have two load cell connections, TB1 and
TB2 .
─ The odd number load cell connects to TB1.
─ Even connects to TB2 .
4.2.3. Intalogix ™ Technology Load Cell Numbering
• Intalogix
™
Technology installations
use a specific numbering system for load
cells because of digital addressing of the
SSCs.
• With respect to the following starting
position, face the platform where the
indicator is located.
• The cell at the upper-left (far side) of the
platform is Cell One (1).
• The cell positions along the far side have
odd cell numbers .
• The near side locations have even cell
numbers.
4.2.4. Additional Wiring
When wiring the Indicator to the Platform and to the optional PPS connection, use
the appropriate Service/Installation Manual(s) for wiring instructions.
