SIDE MOUNTING - See diagram 2
1. Attach crossbar (11) to junction box (10). Set the crossbar so that the
longer blade is touching the junction box.
2. Open the EXIT housing. Feed the transformer input leads through side
hole, being sure to secure wire into wire guides molded at the edges of
the sign.
3. Attach sign to canopy (7) by inserting canopy into sign at an angle, then
twist to secure.
4. Make the proper supply lead connections. If using 120VAC, connect the
black and white leads to the building utility. If using 347VAC, connect the
red and white leads to the building utility. Cap off unused wire. If the
unit is self-powered, be sure to snap battery connector together.
5. Push excess wire into junction box and align holes in canopy (7) with
those in crossbar(11).Using screws supplied, tighten canopy to crossbar
so that canopy is securely fastened and tight against wall.
6. Snap in arrows ( 5 ) to EXIT panel ( 2 ) as required. Then snap EXIT
panel (2) to housing, top first and then bottom.
CEILING MOUNTING - See diagram3
1. Attach crossbar (11) to junction box (10). Set the crossbar so that the
longer blade is touching the junction box.
2. Open the EXIT housing. Feed the transformer input leads through top
hole, being sure to secure wire into wire guides molded at the edges of
the sign.
3. Attach sign to canopy by inserting canopy into sign at an angle, then twist
to secure.
4. Make the proper supply lead connections. If using 120VAC, connect the
black and white leads to the building utility. If using 347VAC, connect the
red and white leads to the building utility. Cap off unused wire. If the
unit is self-powered, be sure to snap battery connector together.
5. Push excess wire into junction box and align holes in canopy ( 7 ) with
those in crossbar (11). Using screws supplied, tighten canopy to crossbar
so that canopy is securely fastened and tight against ceiling.
6. Snap in arrows ( 5 ) to EXIT panel ( 2 ) as required.Then snap EXIT panel
( 2 ) to housing, top first and then bottom.

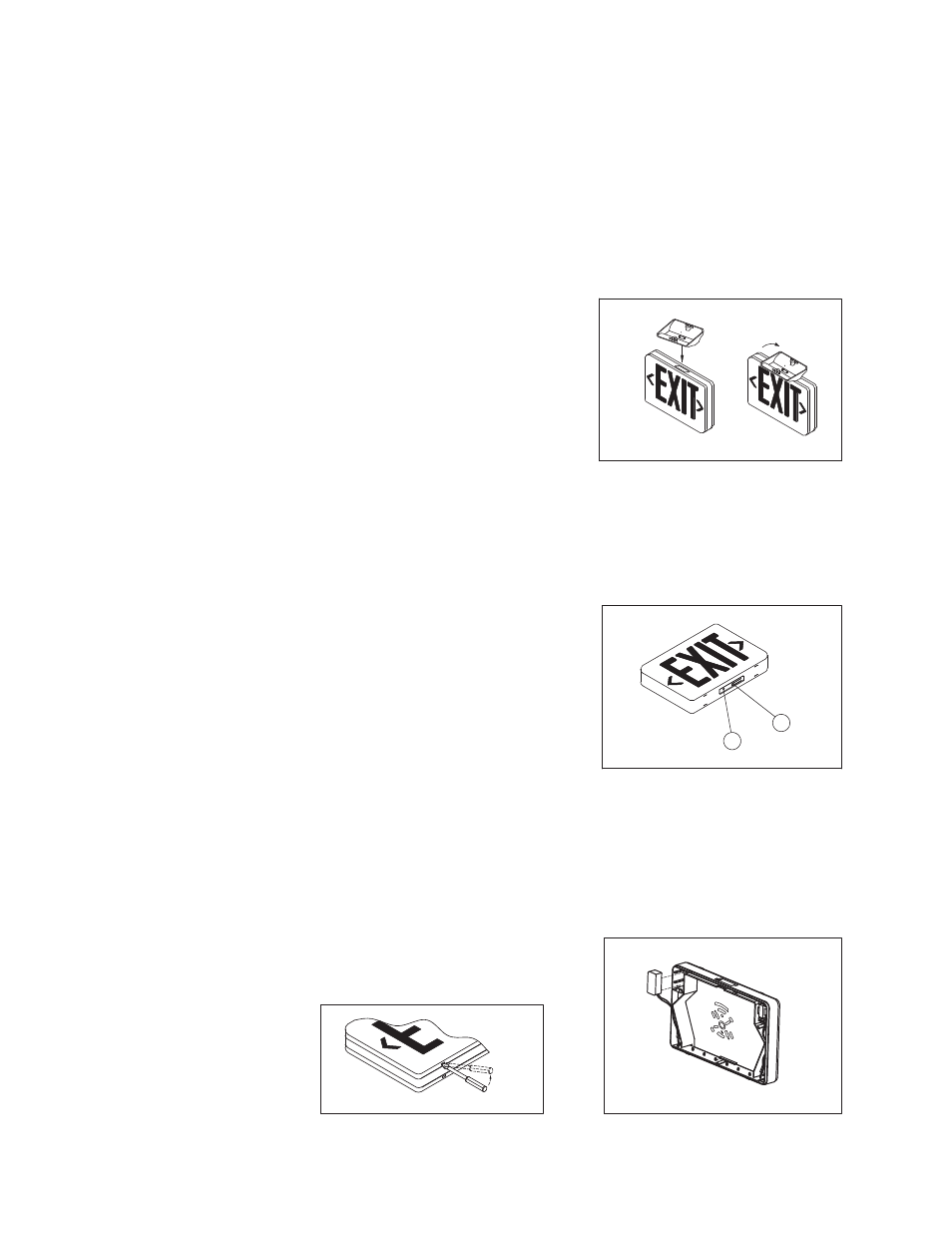

OPENING EXIT PANEL
Use flat blade screwdriver to
open. Insert screwdriver into
the slot and gently pry off the
panel.
CAUTION
Battery connector is shipped disconnected.
It must be connected at installation.
MANUAL TEST ING
1) Manual battery test switch
2) Red LED (indicates normal operation)
CAUTION
Trying to remove canopy after it is locked
in place may cause damage.
ASSEMBLING CANOPY TO HOUSING
Insert canopy into housing at a 20 degree
angle and twist. Quick snap is now firmly
locked.
