Maintenance 2000 XTC

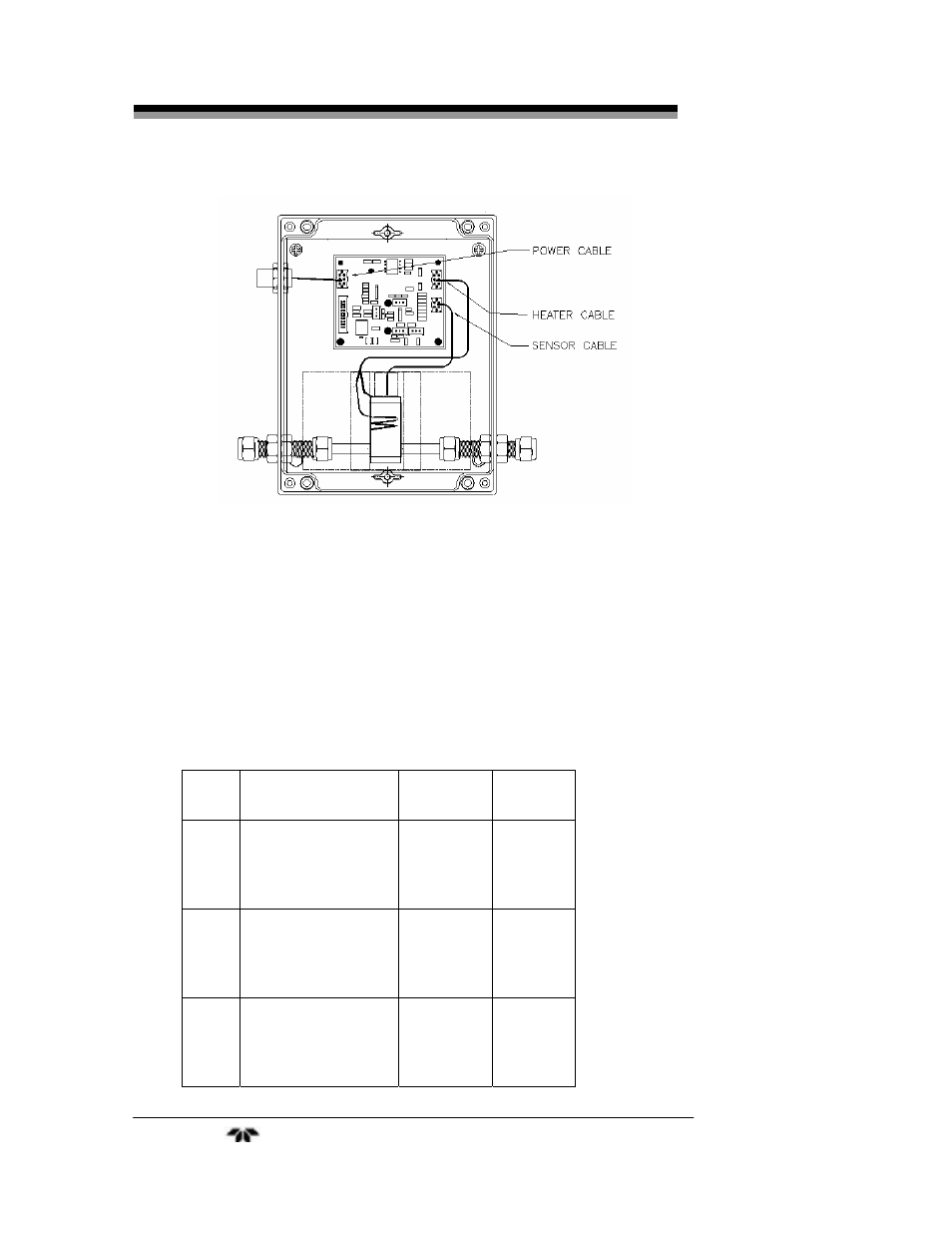

Figure 4-1: Cable Identification in Transmitter
4.3 Fuse Replacement
There are four fuses installed in the galvanic isolator module for
circuit protection. The main fuse (F1) is accessible after removing the fuse
holder cover. All other fuses require separating the 2 galvanic isolator
modules. See Figure 4-2 for fuse identification. Table 4-1 lists the fuse
rating, TAI part number, and the applicable circuit it serves to protect.
Table 4-2: Fuses
Fuse Circuit Fuse
Rating
TAI P/N
F1 24 VDC
Main Power 400 mA
Fast-
Acting
5x20 F1668
F2 &
F3 Heater Circuit /
Transmitter Power 160 mA
Fast-
Acting
5x20 F1697
F4 Output Signal 50 mA
Fast-
Acting
5x20 F1670
Teledyne Analytical Instruments 24
