84-G 1/01

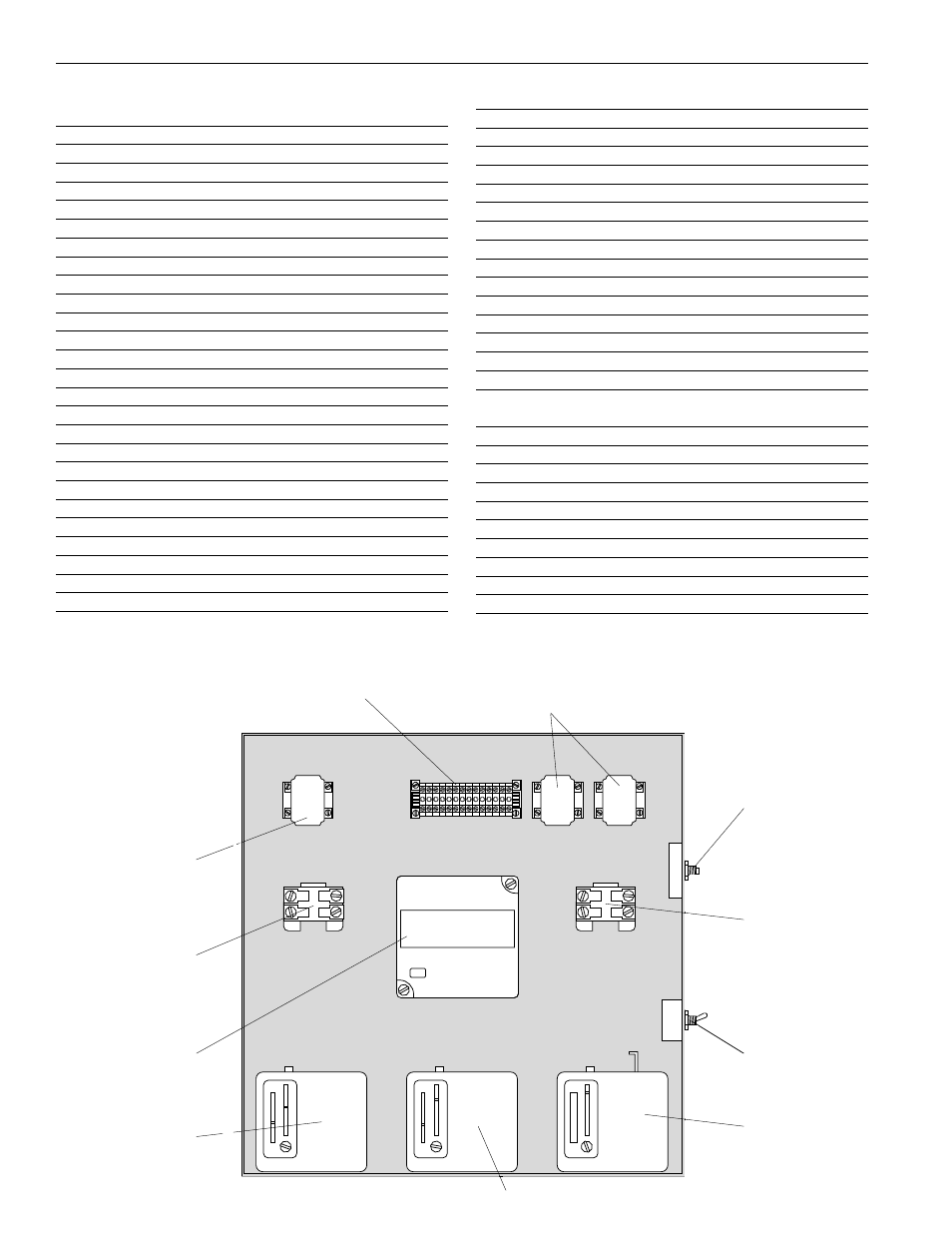

Parts
Water Level
Relay
Contactor/
Overload–3 Phase
(Upon Request) or
Starter Relay–1 Phase
For Feed Water
Pump Motor
Flame
Safe Guard/
Burner Control
Low Limit
Pressuretrol
(Optional)
Operating Pressuretrol
Terminal Block Low Water
Safety Relays
Low Water
Manual
Reset Switch
4-50 HP:
1 Phase Motor
Starter Standard
60 HP:
3 Phase Contactor/
Overload Standard
3 Phase Available
On 4-50 HP As Option
Power
On/Off Switch
High Limit
Pressuretrol
With
Manual Reset
Panel Box Parts
Part No. Relays HP
2-40-420 Fulton Pump Relay - 120V 4-100
2-40-421 Fulton Burner Relay - 120V 4-100
2-40-422 Base for Fulton Pump Relay 4-100
2-40-423 Base for Fulton Burner Relay 4-100
2-40-405 Fulton Pump Relay 220V 4-100
2-40-406 Fulton Burner Relay 220V 4-100
2-40-403 IDlDO-120V Relay 4-100
2-40-402 IGIDO - 120V Relay (manual reset) 4-100
2-40-400 IGlDO-A-120V Relay 4-100
2-40-401 ID2DO - 220V Relay 4-100
Part No. Switches HP
2-45-091 On/Off Switch 4-100
2-45-092 Manual Reset Switch 4-100
2-45-090 Night Switch for two (2) Pressuretrols 4-100
Part No. Motor Starter Relays (Single Phase) HP
2-40-200 Motor Starter Relay - 120V - 20 AMP 4-50
2-40-202 Motor Starter Relay - 120V - 30 AMP 4-50
2-40-201 Motor Starter Relay - 220V - 20 AMP 4-50
2-40-203 Motor Starter Relay - 220V - 30 AMP 4-50
Part No. Flame Safeguard Control HP
2-40-260 RM7895F Programmer 4-50
2-40-262 RM7800M Programmer 60-100
2-40-272* Display Module For 7800 Series Controls 60-100
*Standard on 60-100 HP; optional 4-50 HP.
Part No. Motor Contactors (Three Phase) HP
2-40-568 Contactor -AB -100- A09NA3- 220V 4-60
2-40-567 Contactor- AB -100- A09ND3-120V 4-60
2-40-641 Contactor -AB -100- A12NA3- 220V 80-100
2-40-642 Contactor- AB -100- A12ND3-120V 80-100
2-40-565 Overload - AB - BSB 16
2-40-657 Overload - AB - BSB 15
2-40-648 Overload - AB - BSB 22
2-40-571 Overload - AB - BSB 30
2-40-575 Overload - AB - BSC 10
2-40-643 Overload - AB - BSC 15
2-40-652 Overload - AB - BSC 24
2-40-572 Overload - AB - BSB 42
2-40-573 Overload - AB - BSB 60
2-40-574 Overload - AB - BSB 80
2-40-566 Overload - AB - BSB 90
Note: Contactor Overload depends on motor h.p. and voltage
Part No. Pressuretrols HP
4-40-050 Night Heating Pressuretrol Set Up 4-100
2-40-227 Pressuretrol L404A - 2-15 PSI 4-100
2-40-228 Pressuretrol L404A - 5-50 PSI 4-100
2-40-229 Pressuretrol L404A - 10-150 PSI 4-100
2-40-230 Pressuretrol L404A - 20-300 PSI 4-100
2-40-231 Pressuretrol L404C - 2-15 PSI 4-100
2-40-232 Pressuretrol L404C- 5-50 PSI 4-100
2-40-233 Pressuretrol L404C - 10-150 PSI 4-100
2-40-234 Pressuretrol L404C - 20-300 PSI 4-100
Note: Correct pressuretrol is based on boiler trim pressure.
