B
I
J
ON/OFF GAS HEAD
CAN PIVOT 360°
MODULATED GAS HEAD IS
FIXED ABOVE FAN HOUSING
CLEARANCE REQUIRED FOR
BURNER REMOVAL
E

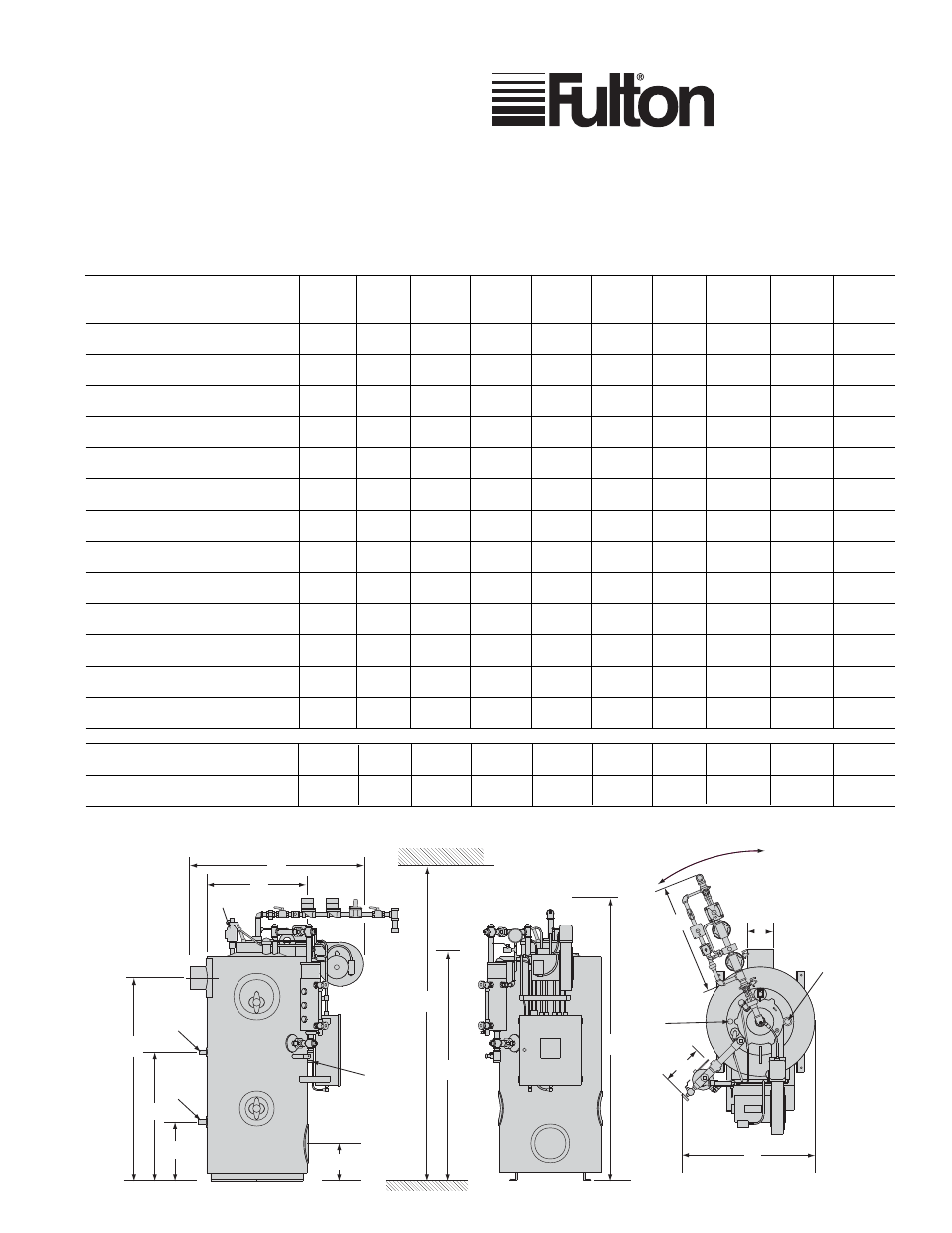

Top View Front View Side View
K
P
N
F
A
M
S
H
R
Q
O
G
C
D
L
Standard Models ICS/FB-A 4 6 9.5 10 15 20 25 30 50 60
Models ICX/FB-F 4 6 9.5 10 15 20 25 30
Unit Size: BHP 4 6 9.5 10 15 20 25 30 50 60
A. Boiler Height IN 47.5 57.5 67.5 63.5 69.5 72.5 75 82.5 87.5 93.5
MM 1207 1461 1715 1613 1765 1842 1905 2069 2223 2375
B. Boiler Height With Trim* IN 65 75 85 80.5 86.5 92.5 95 102 106.5 120
& Fuel Train Assembly MM 1651 1905 2159 2045 2197 2350 2413 2591 2705 3048
C. Overall Depth Stack IN 44 44 44 46 47 58 59 67 78 78
to Burner Fan Housing MM 1118 1118 1118 1168 1194 1474 1499 1702 1981 1981
D. Boiler Diameter IN 26 26 26 28 30 39 39 46 55 55
MM 660 660 660 710 760 990 990 1170 1400 1400
E. Overall Width IN 33 33 33 33.5 35.5 43 43 49 57 57
with Water Column MM 838 838 838 851 902 1091 1091 1244 1448 1448
F. Flue Outlet Diameter IN 6 6 6 6 8 10 10 12 12 12
MM 152 152 152 152 203 254 245 305 305 305
G. To Center of Flue Outlet IN 42 52 62 58 63 66 68 73.5 79 85
MM 1070 1320 1575 1473 1600 1675 1728 1867 2007 2159
H. Feedwater Inlet IN 27 33 33.5 33 33.5 34 34 34 35 35
MM 685 840 851 840 851 865 865 865 890 890
I. Handholes IN 19 19 19 19 19 19 19 19 20 20
MM 485 485 485 485 485 485 485 485 510 510
J. Blowdown Outlet IN 15 15 15.5 15.5 15.5 16.5 16.5 16.5 17.5 17.5
MM 380 380 394 394 394 420 420 420 445 445
K. Water Column Extension IN 14 14 14 14 14 14 14 14 14 14
MM 355 355 355 355 355 355 355 355 355 355
L. Gas Train Extension IN 22.5 22.5 25 21.5 20.5 25 25 27 22.5 34
(CSD-1) MM 572 572 635 546 521 635 635 686 572 867
M. Clearance Required IN 72 82 92 86 92 96 98 106 114 124
for Burner Removal* MM 1828 2083 2337 2184 2337 2438 2490 2692 2896 3150
Weights
Approx. Shipping Weight
LB 1400 1700 1900 2000 2280 3400 3500 4780 6526 7280
KG 635 773 862 910 1036 1545 1591 2173 2966 330
Approx. Operating Weight LB 1516 1833 2200 2200 2605 4042 4184 6197 8569 9531
KG 688 831 998 998 1182 1833 1898 2811 3887 4323
*This dimension is 6” less for oil fired units 4-50 HP and 12” less for oil fired units 60 HP.
NOTE: Recommended minimum clearance is 24” to the side and back of unit; 36” in front
Dimensions
Fulton Gas & Oil Fired
Vertical Tubeless
Steam Boilers
(Standard Burner)
Product Data Submittal
Fulton Models: ICS/FB-A and ICX/FB-F
29a-G 1/01
