Suggested Experiments
Experiment 1: Centripetal Force vs. Velocity
Introduction
In this experiment, you will vary the velocity by changing the voltage
to the electric motor as the centripetal force is continuously measured
by the Force Sensor. The radius and mass are held constant as the
velocity is increased.
Setup
Follow the equipment setup instructions on pages 5-7 of this manual
and the Experiment Tips that follow. When you are ready to begin the
experiment, open the appropriate DataStudio file on the setup disk.
Equipment Required (for use with
ScienceWorkshop sensors): Equipment Required (for use with
PASPORT sensors):
ScienceWorkshop Force Sensor (CI-6746) PASPORT Force Sensor (PS-2104)
Photogate Head (ME-9498A) Photogate Head (ME-9498A)
ScienceWorkshop interface (500, 700, or
750) (CI-6400 or CI-6450) Photogate Port (PS-2123)
Power Supply (12 v, 3A) (SE-8587) USB Link (2) (PS-2100) or Xplorer (2) (PS-
2000) or Power Link (PS-2001)
DataStudio Software (ver. 1.5 or higher) Power Supply (12 V, 3AA) (SE-8587)
Base support, clamps, and mounting rods DataStudio Software (ver. 1.5 or higher)
Base support, clamps, and mounting rods

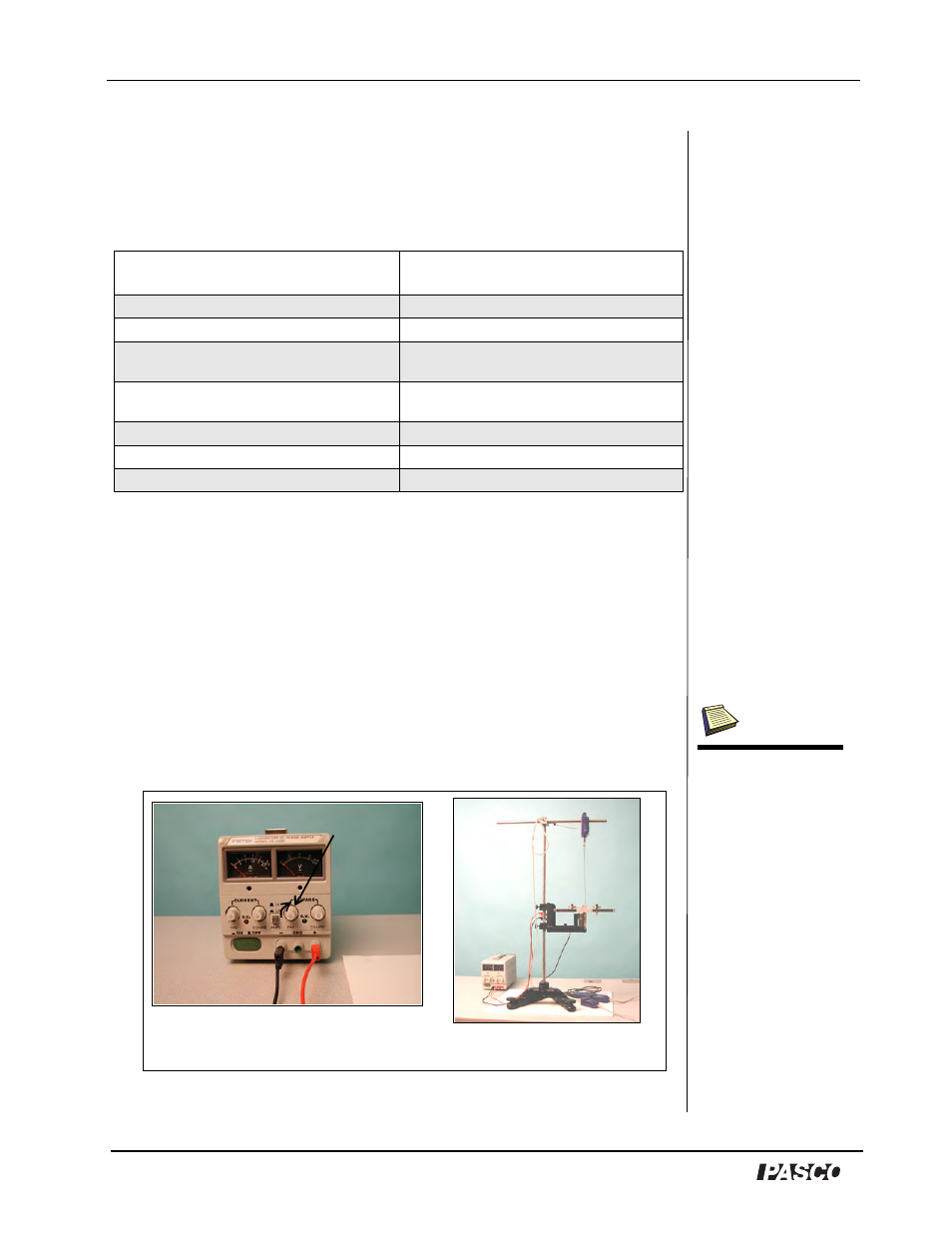

Figure 1a: Adjusting the
voltage on the Power Supply
Figure 1b: Complete setup
voltage
adjustment
knob
Note: If you do not have
a setup disk available,
follow the DataStudio
setup instructions in
Appendix B (for
PASPORT sensors) or C
(for ScienceWorkshop
sensors).
