Centripetal Force Apparatus

Model No. ME-8088

Experiment 3: Centripetal Force vs. Radius

Introduction

In this experiment, the velocity and mass are held constant as the
radius is varied. By lowering the Force Sensor, the radius increases.
As the radius increases, the “fixed mass” must be moved to a matching
radius to balance the rotating arm. Again, centripetal force is
measured by the Force Sensor.

Setup

Follow the equipment setup instructions on pages 5-7 of this manual
and the Experiment Tips that follow. When you are ready to begin the
experiment, open the appropriate DataStudio file on the setup disk.

Equipment Required (for use
with

ScienceWorkshop

sensors):

Equipment Required (for use with
PASPORT sensors):

ScienceWorkshop Force Sensor (CI-
6746)

PASPORT Force Sensor (PS-2104)

Photogate Head (ME-9498A)

ScienceWorkshop interface (500, 700,
or 750) (CI-6400 or CI-6450)

Photogate Port (PS-2123)

Power Supply (12 v, 3A) (SE-8587)

USB Link (2) (PS-2100) or Xplorer (2) (PS-
2000) or Power Link (PS-2001)

Base support, clamps, and mounting
rods

Power Supply (12 V, 3AA) (SE-8587)

DataStudio Software (ver. 1.5 or
higher)

Base support, clamps, and mounting rods

DataStudio Software (ver. 1.5 or higher)

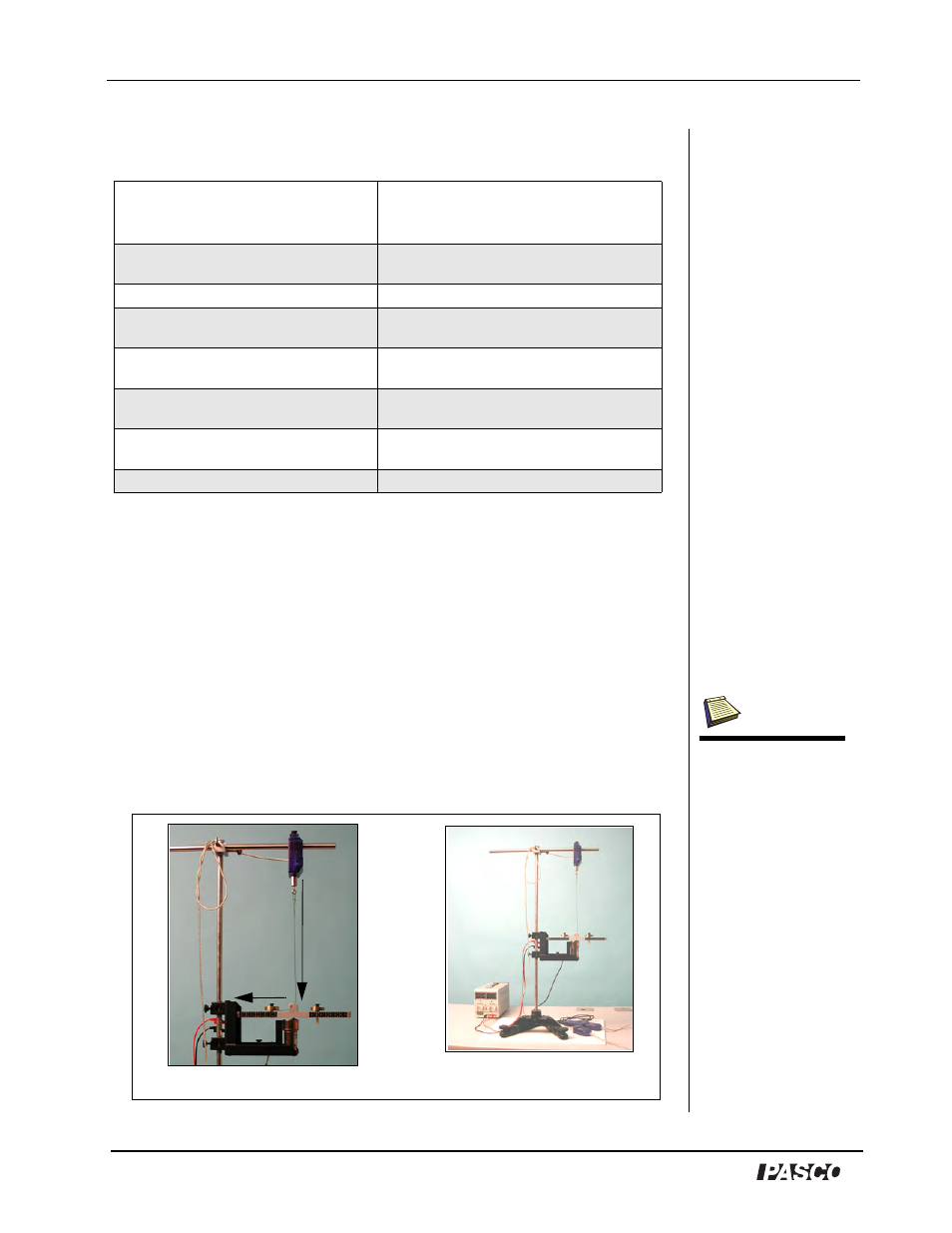

Figure 3b: Complete
setup

Figure 3a: Changing the radius

Note: If you do not have
a setup disk available,
follow the DataStudio
setup instructions in
Appendix B (for
PASPORT sensors) or C
(for ScienceWorkshop
sensors).
