Experiment 2: Centripetal Force vs. Mass
Introduction
In this experiment, the radius and velocity are held constant as the mass is
varied. By adding additional drilled masses to the holder, the mass of the
system is increased. Equal amounts of mass must also be added to the “fixed
mass” to balance the arm as it rotates. Centripetal force is directly measured
by the Force Sensor.
Setup
Follow the equipment setup instructions on pages 5-7 of this manual
and the Experiment Tips below. When you are ready to begin the
experiment, open the appropriate DataStudio file on the setup disk.
Equipment Required (for use with
ScienceWorkshop sensors): Equipment Required (for use with
PASPORT sensors):
ScienceWorkshop Force Sensor (CI-6746) PASPORT Force Sensor (PS-2104)
Photogate Head (ME-9498A) Photogate Head (ME-9498A)
ScienceWorkshop interface (500, 700, or
750) (CI-6400 or CI-6450) Photogate Port (PS-2123)
Power Supply (12 v, 3A) (SE-8587) USB Link (2) (PS-2100) or Xplorer (2) (PS-
2000) or Power Link (PS-2001)
DataStudio Software (ver. 1.5 or higher) Power Supply (12 V, 3AA) (SE-8587)
Base support, clamps, and mounting rods DataStudio Software (ver. 1.5 or higher)
Base support, clamps, and mounting rods

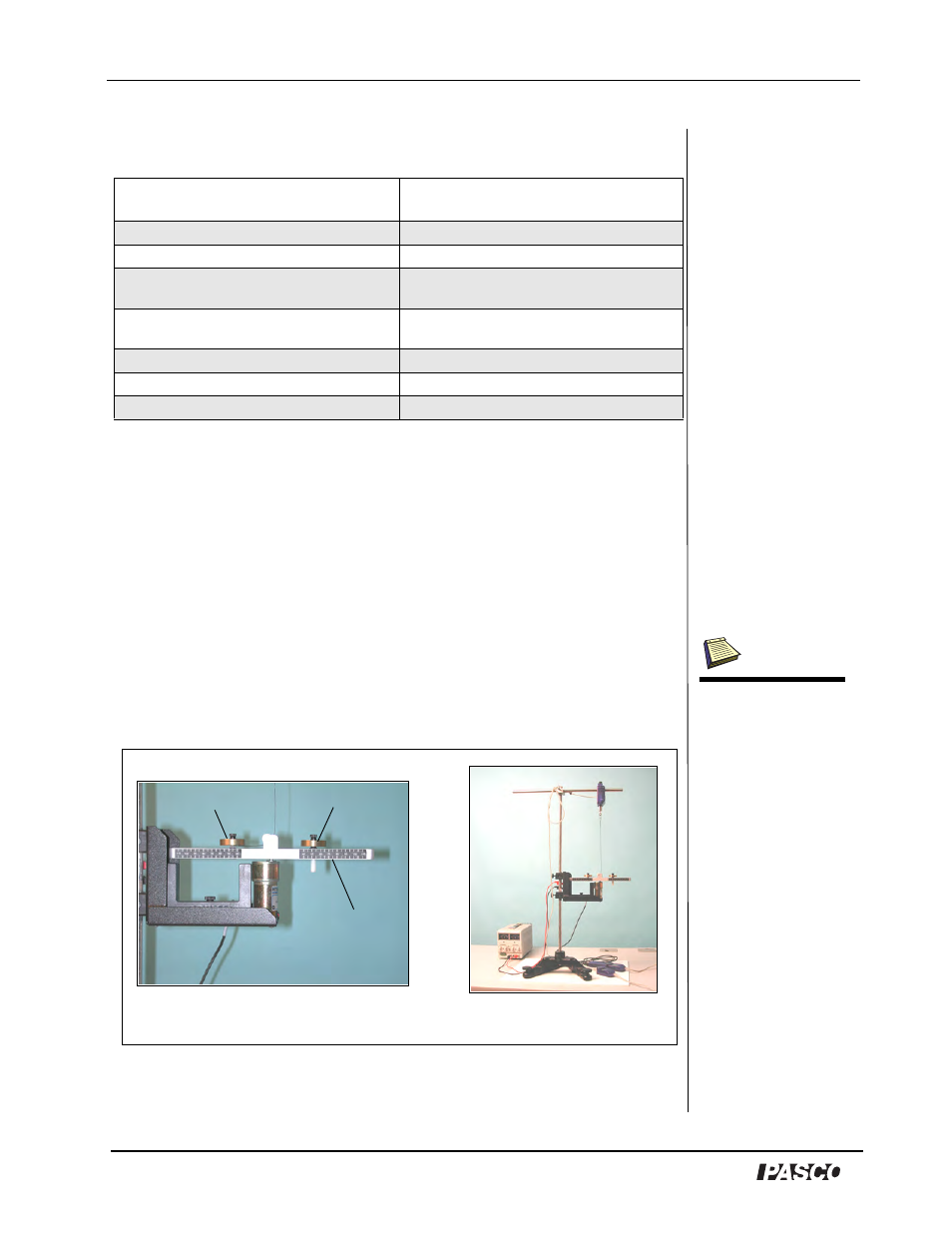

Figure 2b: Complete setup
Figure 2a: Free and fixed
Mass Holders
“Fixed” mass Free mass
Rotating Arm
Note: If you do not have
a setup disk available,
follow the DataStudio
setup instructions in
Appendix B (for
PASPORT sensors) or C
(for ScienceWorkshop
sensors).
