Setting the Service Weight for Traffic Classes
This switch uses the Weighted Round Robin (WRR) algorithm to determine the
frequency at which it services each priority queue. As described in “Mapping CoS
Values to Egress Queues” on page 3-160, the traffic classes are mapped to one of
the four egress queues provided for each port. You can assign a weight to each of
these queues (and thereby to the corresponding traffic priorities). This weight sets
the frequency at which each queue will be polled for service, and subsequently
affects the response time for software applications assigned a specific priority value.
Command Attributes
• WRR Setting Table 16 – Displays a list of weights for each traffic class (i.e., queue).
• Weight Value – Set a new weight for the selected traffic class. However, note that
Queue 0 is fixed at a weight of 1, and cannot be configured. (Range: 1-31)
Web – Click Priority, Queue Scheduling. Highlight a traffic class (i.e., output queue),
enter a weight, then click Apply.

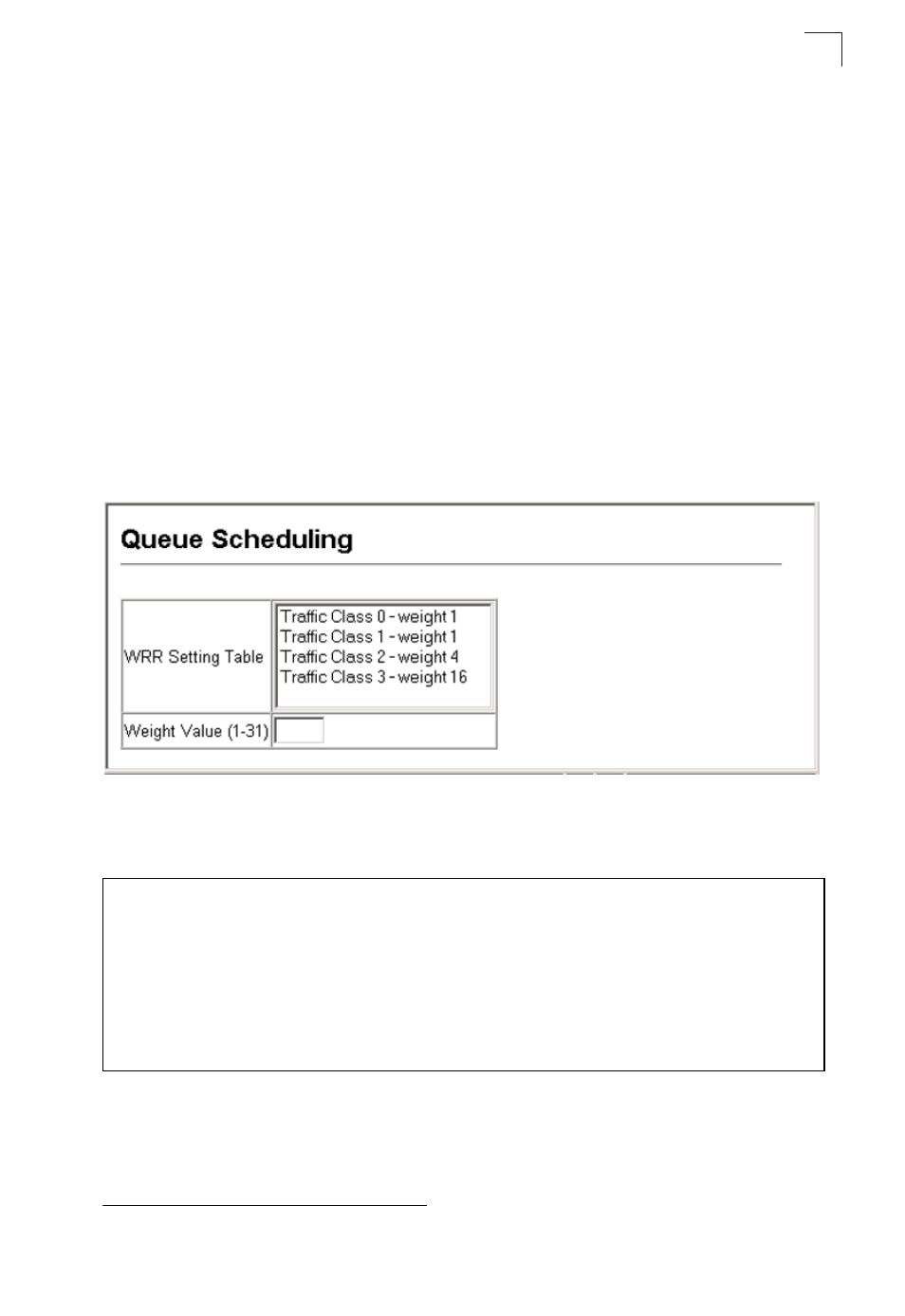

Figure 3-91 Configuring Queue Scheduling
CLI – The following example shows how to assign WRR weights to each of the
priority queues.
16. CLI shows Queue ID.
Console(config)#queue bandwidth 6 9 12 4-200
Console(config)#exit
Console#show queue bandwidth
4-202
Queue ID Weight
-------- ------
0 1
1 6
2 9
3 12
Console
