Configuring a MAC ACL
Command Attributes
• Action – An ACL can contain any combination of permit or deny rules.
• Source/Destination Address Type – Use “Any” to include all possible addresses,
“Host” to indicate a specific MAC address, or “MAC” to specify an address range
with the Address and Bitmask fields. (Options: Any, Host, MAC; Default: Any)
• Source/Destination MAC Address – Source or destination MAC address.
• Source/Destination Bitmask – Hexidecimal mask for source or destination MAC
address.
• VID – VLAN ID. (Range: 1-4094)
• Ethernet Type – This option can only be used to filter Ethernet II formatted
packets. (Range: 0-65535)
A detailed listing of Ethernet protocol types can be found in RFC 1060. A few of the
more common types include 0800 (IP), 0806 (ARP), 8137 (IPX).
Web – Specify the action (i.e., Permit or Deny). Specify the source and/or
destination addresses. Select the address type (Any, Host, or MAC). If you select
“Host,” enter a specific address (e.g., 11-22-33-44-55-66). If you select “MAC,” enter
a base address and a hexidecimal bitmask for an address range. Set any other
required criteria, such as VID or Ethernet type. Then click Add.

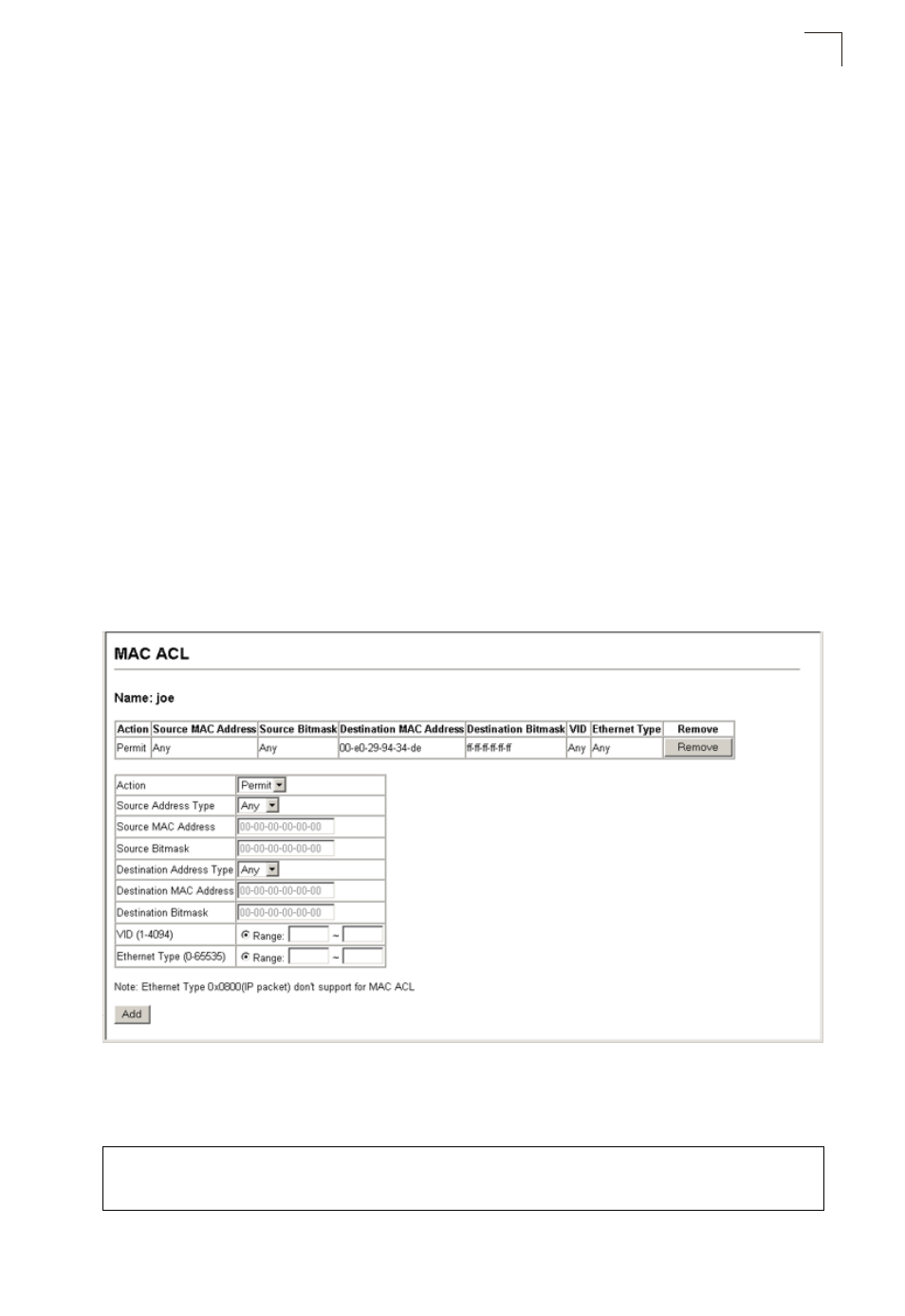

Figure 3-51 ACL Configuration - MAC
CLI – This rule permits packets from any source MAC address to the destination
address 00-e0-29-94-34-de where the Ethernet type is 0800.
Console(config-mac-acl)#permit any host 00-e0-29-94-34-de
ethertype 0800 4-111
Console(config-mac-acl)#
