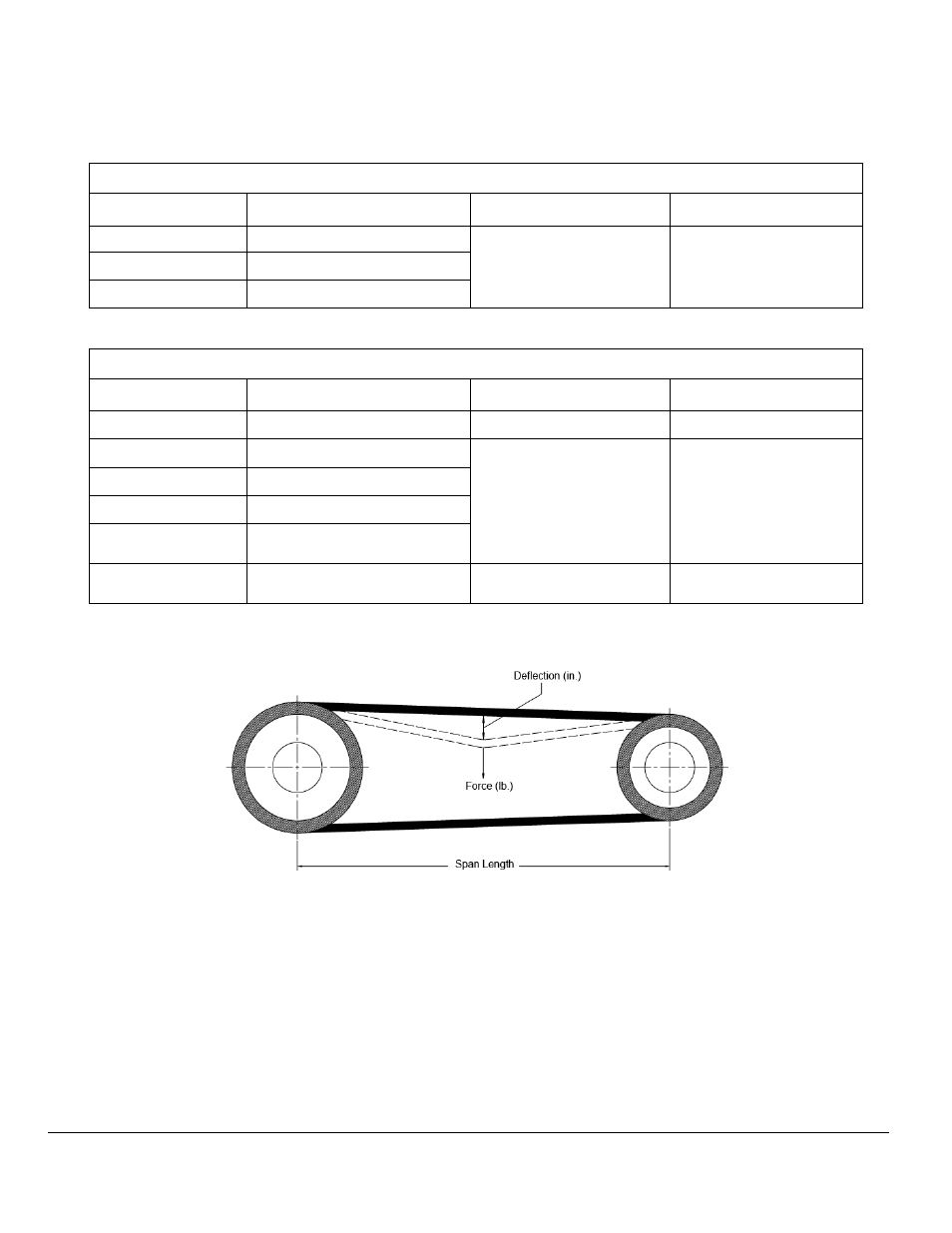

Belt Tension Settings
Table 8: CC1200 Belt Tension Settings
Model Number Engine Type Belt Tension Setting
CC1209RS 9HP Robin-Subaru
PJ Type 280-20 Groove 0.11 in. at 0.6 lb Force CC1209HS 8HP Honda GX270
CC1213HS 11HP Honda GX390
Table 9: CC1300XL Belt Tension Settings
Model Number Engine Type Belt Tension Setting
CC1309HS-XL 8HP Honda GX270 3VX315 0.18 in. at 5.7 lb Force
CC1313HS-XL 11HP Honda GX390
3VX300 0.17 in. at 5.7 lb Force
CC1305E1-XL 5HP Baldor Electric 1 PH
CC1305E3-XL 5HP Baldor Electric 3 PH
CC1310E3 20-XL
10HP Baldor Electric 3 PH
(
w/ switchbox and 20” guard)
CC1313HS 20-XL
11HP Honda GX390
(w/ 20” guard)
3VX315 0.18 in. at 5.7 lb Force
Deflection (in.) should be equal to number of inches listed in chart
above when force (lb.) listed in chart above is applied to belt using
tension gauge.
