CC1200-CC1300XL Concrete Saw Manual
17
Flange Guard
Installing the Flange Guard
1. Fit the tapered mount on the backside of the
flange guard over the tapered blade guard
mount on either the belt guard (left side of saw)
or the frame (right side of saw).
2. Insert the lock pin through the hole on the
tapered blade guard mount to secure
(CC1200).

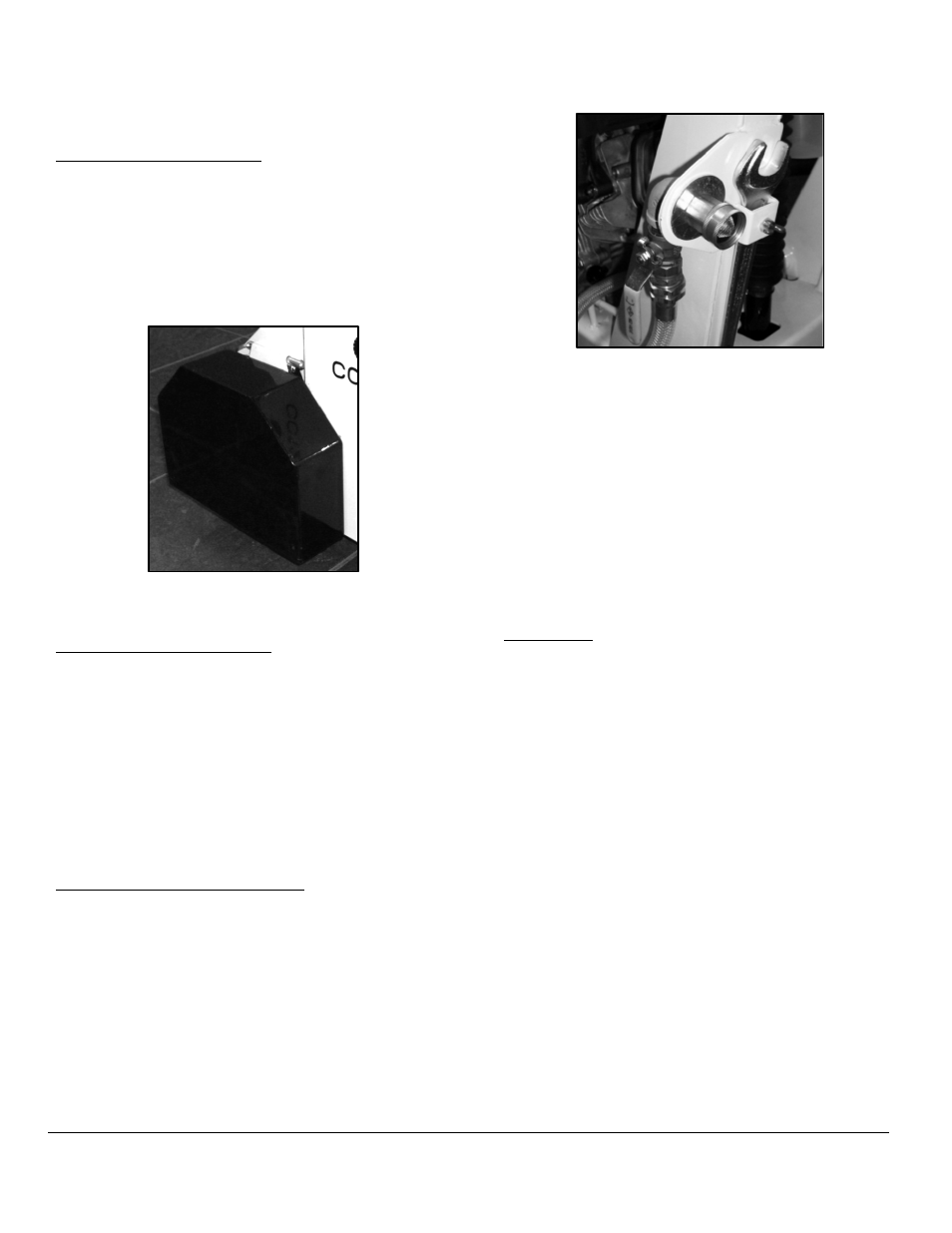

Figure 16: CC1200 Flange Guard
Removing the Flange Guard
1. Remove the lock pin from the flange guard
(CC1200).
2. Lift the guard off of the tapered blade guard
mount.
Water System
The water system cools the blade and minimizes
dust when cutting.
Water Valve and Supply Hose(s)
Note: Always test the water
supply for adequate pressure and flow prior to
cutting.
1. Connect the water source hose to the water
supply fitting.
Figure 17: Water Supply Fitting
2. Connect the water supply hose to the blade
guard. Note: Disconnect and reconnect the
hose when moving the blade guard to the
opposite side of the saw
3. Turn on the water valve to start the water flow
and turn off the water valve to stop the water
flow. The water flow between these two points
increases/decreases based on the valve’s
position.
.
Note: Turn on the water just before
cutting to avoid wasting water
Water Tank
.
The water tank (optional item) decreases airborne
dust when wet cutting. Note: The water tank cannot
be used with the electric motor saw
• Connect the water tank’s water supply hose to
the blade guard prior to operating the saw.
.
Handwheel
The handwheel raises and lowers the saw and
blade. Note: The saw can be raised and lowered
with the engine off.
