CC1200-CC1300XL Concrete Saw Manual
13
Operating the CC1200 and
CC1300XL
Handlebars
The handlebars help the operator guide and
maneuver the saw.
Adjusting the Handlebars
1. Remove the screws securing the handlebars to
the frame.
2. Holding the handlebar grips, move the
handlebars up or down (matching the holes on
the handlebar shaft to the holes on the frame)
to adjust the handlebars to the desired height.
3. Secure the handlebars to the frame.

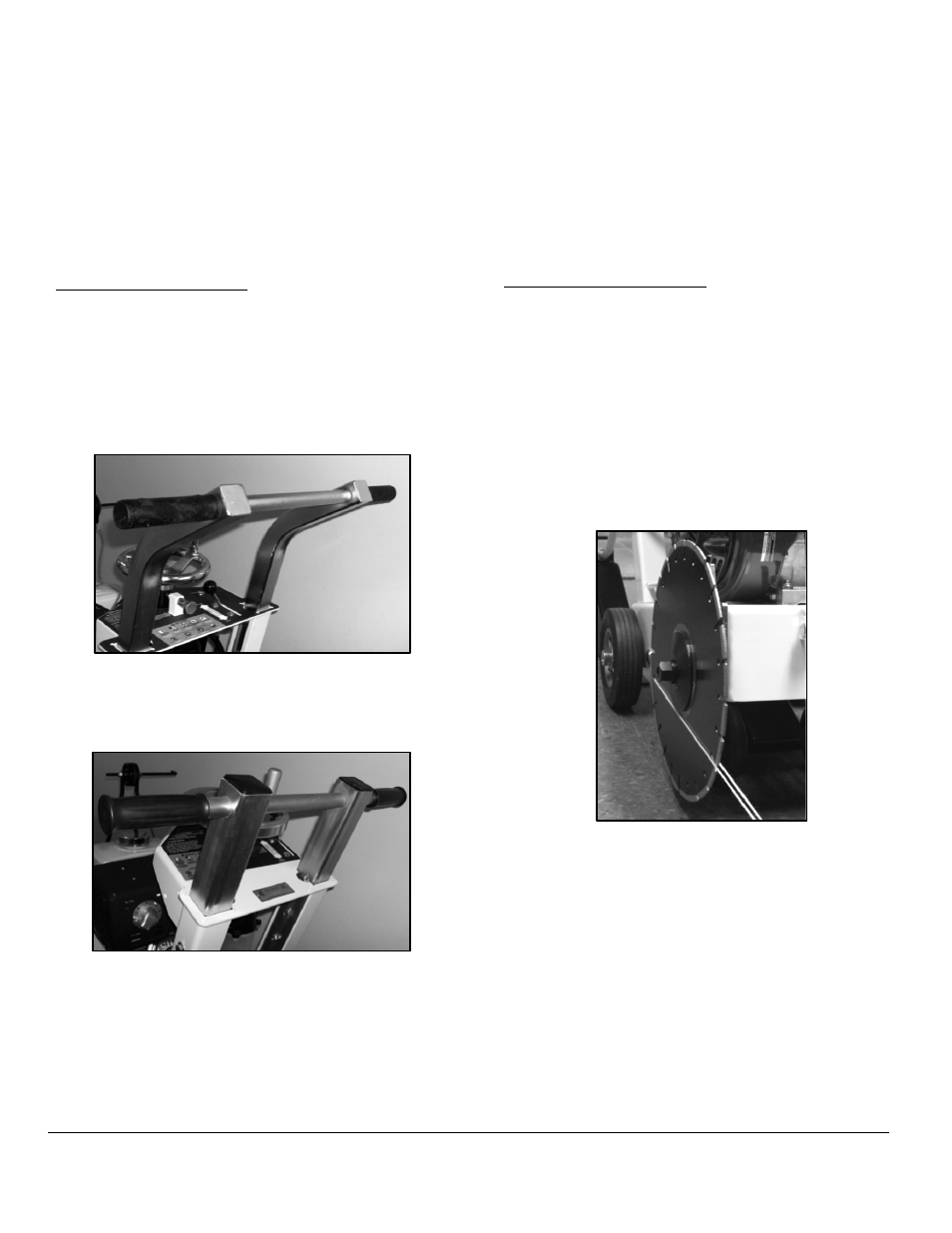

Figure 7: CC1200 Handlebars
Figure 8: CC1300XL Handlebars
4. Adjust the handlebar height as necessary.
Front Pointer
The front pointer helps the operator follow the
cutting line.
Adjusting the Front Pointer
1. Remove the looped end of the shorter pointer
rope line from the handlebar grip.
2. Lower the front pointer frame to the ground.
3. Divide an 8–10 ft piece of string in half.
4. Place the looped end of string into a gullet on
the backside of the blade.
5. Place one string line up against the backside of
the blade and one string line up against the
front side of the blade. Holding the string ends
in one hand, tension the lines out toward the
pointer rod.
Figure 9: String Line and Blade
6. Loosen the nuts securing the pointer rod.
7. Adjust the pointer rod to place the pointer tip in
between the tensioned string lines.
8. Retighten the nuts to secure the pointer rod.
9. Lift the front pointer frame off the ground when
the cutting task is complete.
10. Place the looped end of the rope line around
the handlebar grip.
