24
Axle
Lubricate both flange block bearing grease fittings
every 40 hours of operation.
Adjustment Shaft
Lubricate the adjustment shaft grease fitting every
100 hours of operation. Lubricate the adjustment
shaft flange block bearing grease fitting every 100
hours of operation.
Inner Blade Flange
The inner blade flange may be taken off of the
blade shaft to clean/replace the part.

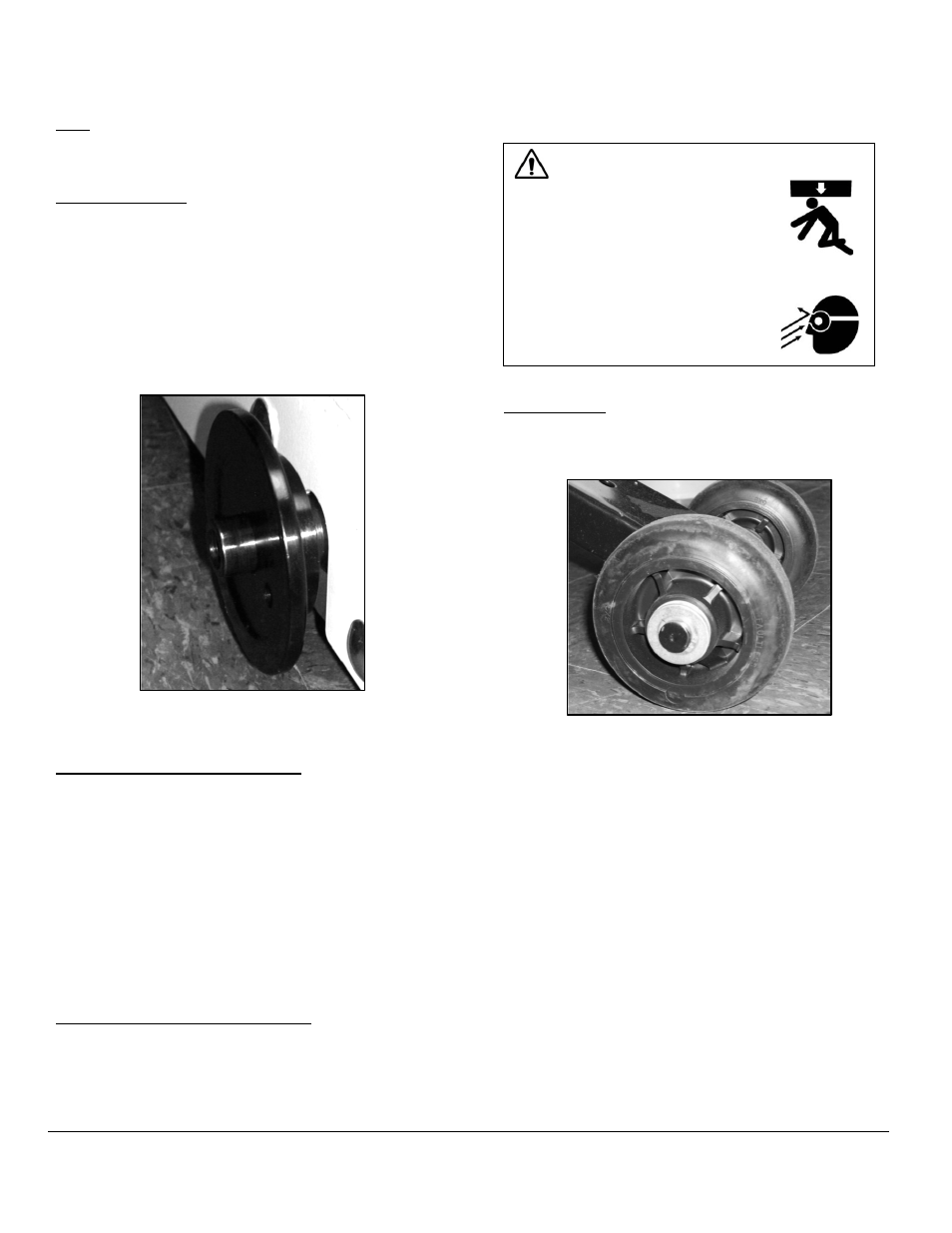

Figure 22: CC1200 Inner Flange
Installing the Inner Blade Flange
1. Inspect the inner blade flange for damages and
clean or replace as necessary.
2. Place the flange onto the tapered portion of the
blade shaft.
3. Apply Loctite 262 (red) or an equivalent to the
setscrew threads.
4. Place the setscrew into the flange’s setscrew
hole and tighten the screw down to the blade
shaft key to secure the flange. Note: Always
make sure the flange is secure prior to
operating the saw
Removing the Inner Blade Flange
.
1. Remove the setscrew from the back of the inner
blade flange using an Allen wrench.
2. Remove the flange from the blade shaft.
Wheels
WARNING
• Raise the saw to a proper
height for easy access when
working underneath the saw,
and place jack stands or
blocks under frame edges at the front and
back of the frame.
• Always wear safety glasses
when removing retaining
rings.
Front Wheels
Inspect the front wheels regularly for damages or
wear and replace as necessary.
Figure 23: CC1300XL Front Wheels
1. Raise the saw to gain access to the front
wheels.
2. Remove the setscrews from the set collar
(CC1200). Remove the retaining ring using
retaining-ring pliers (CC1300XL).
3. Remove the set collar and wheel from the
wheel shaft (CC1200). Remove the washer and
wheel from the wheel shaft (CC1300XL).
4. Place a new wheel onto the wheel shaft and
slide it to the back of the shaft.
5. Place the set collar against the wheel on the
wheel shaft (CC1200). Place the washer
against the wheel on the wheel shaft
(CC1300XL).
6. Tighten the setscrews into the set collar to
secure the wheel (CC1200). Snap the retaining
