Detroit Radiant Products Company SV Series - Manual (Page 19)

105
106
26A/B/E*
21B, 220
20C/D*
82
26A/D*
65I
1220
1289
1243
1526A
1215
828
1266
1232
533
1255
THCS
1229
1297 19B
113
579
SV Series
19
* Optional upgrade or add-on item.

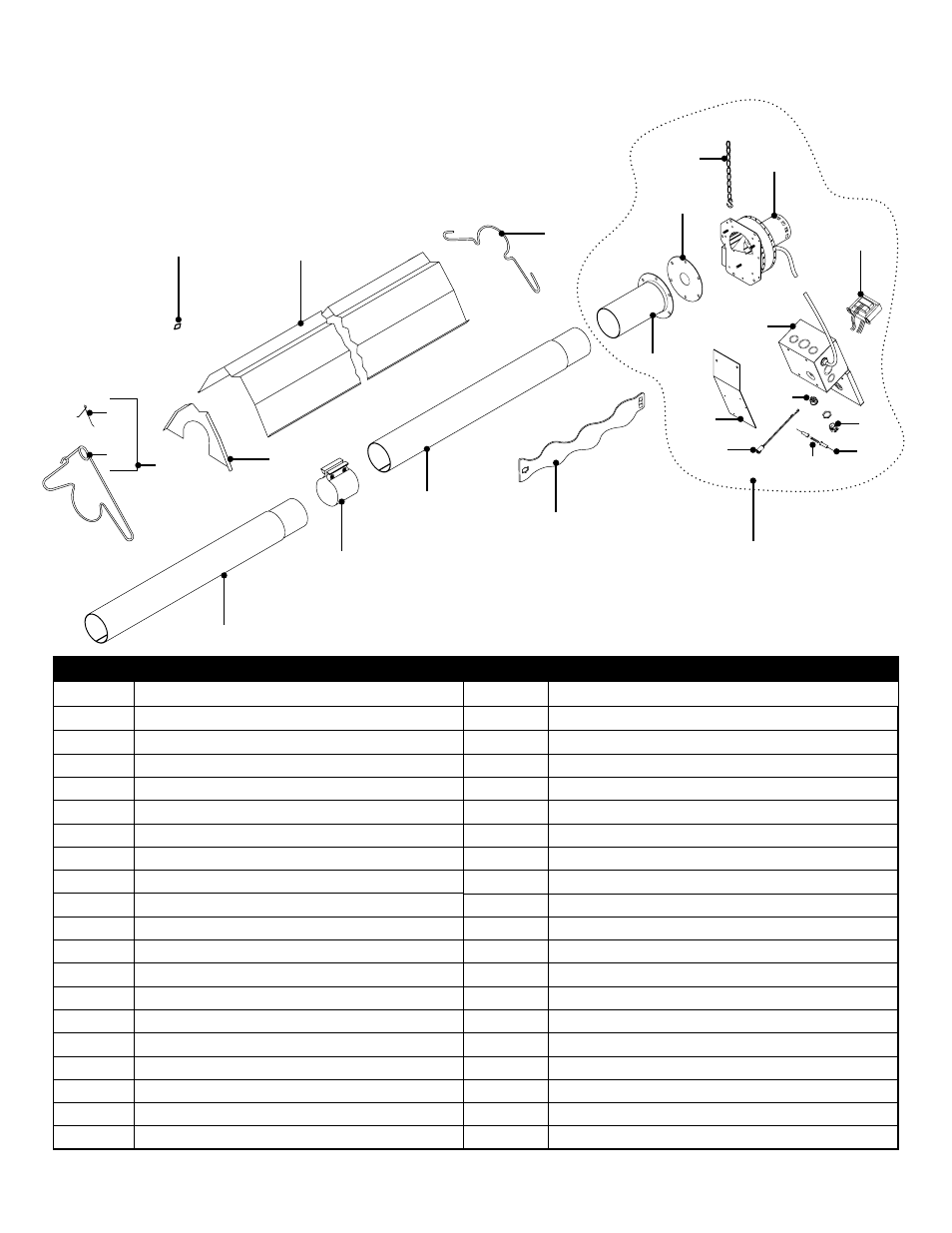

Figure 5.2 • Tube & Reflector Components
Co
mb
ust
ion
Cha
mb
er(
s)
Rad
ian
t Em
itte
r Tu
be
(s)
Part No. Description Part No. Description
TP-219 Differential Vinyl Sensing Tube (burner) TP-1250 24V Mini Igniter
TP-220 Stainless Steel Tube Clamp (175 & 200 MBH) TP-1251 Self Diagnostic Ignition Module
TP-221 Mini Igniter Gasket TP-1255 Full Exhauster Assembly (TP-1215, TP-1266, TP-1243)
TP-222 Flame Rod TP-1266 Power Box Assembly (individual parts below)
TP-222A Flame Rod Wire TP-533 120V Conduit Connector
TP-223 Gas Manifold TP-828 Power Box 24V Yellow Indicator Light
TP-301 Center Panel TP-1220 Power Box Mounting Bracket
TP-303 End Panel, Right TP-1229 Fuse Holder
TP-321 Ignition Plate Gasket TP-1232 Terminal Plug
TP-329 Terminal Block TP-1289 Exhauster Mounting Tube
TP-579 4 in. Wire Hanger w/o Tension Spring TP-1297 Fuse
TP-804 Burner Control Box Outer Shell (50-175 MBH) TP-1526A 75VA Transformer with Foot Mounts
TP-828 Yellow Operational Ind. Light (Qty. 2) TP-1280 16” Burner Tube with Flange
TP-832 Thermostat Terminal Strip TP-1283 Mini Igniter Plate
TP-1202 End Panel, Left TP-APS Atmospheric Pressure Switch (see below)
TP-1204 Burner Control Box Outer Shell (200 MBH) TP-264B Differential Pressure Switch, 50 to 75 MBH
TP-1215 Exhauster Pump TP-264E Differential Pressure Switch, 100 to 125 MBH
TP-1240A 24V Gas Valve - Natural Gas Assembly TP-1264A Differential Pressure Switch, 150 to 175 MBH
TP-1241A 24V Gas Valve - LP Gas Assembly TP-264F Differential Pressure Switch, 200 MBH
TP-1243 Blower Restrictor Plate - Specify Model THCS Exhauster Assembly Security Chain
5.0 Parts • Heater Components and Parts List
