1.0 Introduction
3
Overview
The intent of this manual is to provide information regarding general safety, installation, operation and
maintenance of the tube heater. For complete assembly and installation instructions, use this Tube Heater
General Manual in conjunction with the Series Insert Manual that accompanies this piece. You must read,
and understand, the instructions and safety warnings in
both manuals before installing the tube heater.
Heater Components*
Prior to installation, verify that the heater’s gas type and voltage (as listed on the rating plate) match that of
your application. Also verify that you have received all heater contents included with your tube heater.
Refer to the Series Insert for a list of the kit contents for your Series heater. Materials not included in the
heater kit contents (e.g., screws, vent material, terminals, etc.) are the responsibility of the installer. Notify
your product representative or Detroit Radiant Products of any discrepancy or missing kit contents prior to
installing unit.
Tube Hanger
Reflector
Reflector Center Support
10 ft. Primary/
Secondary
Combustion
Chamber(s)
Baffles
Reflector End Cap with Clips*
Tube Clamp
Burner Control Box
SS Flex Connector*
Radiant
Tube(s)

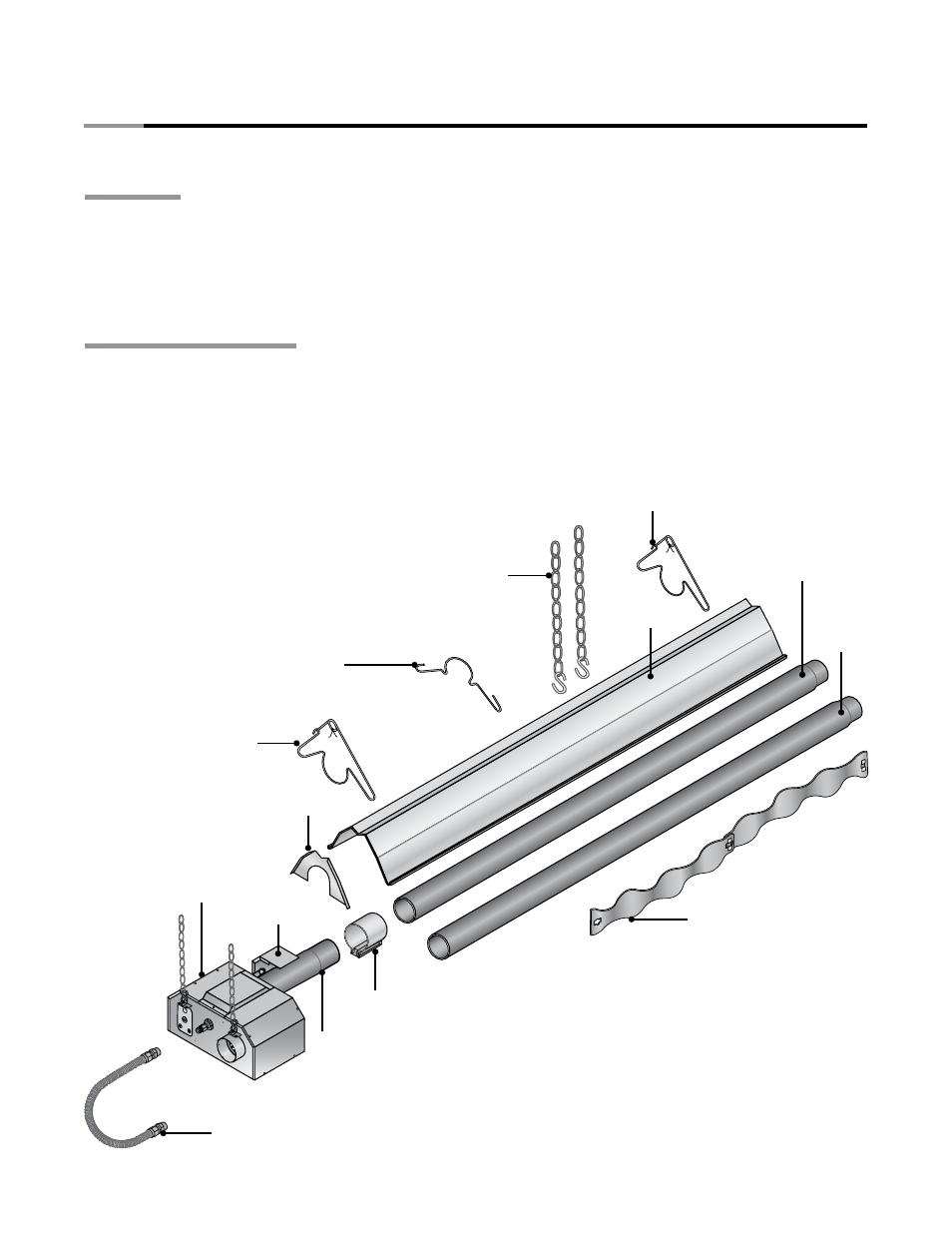

Figure 1.1 • Heater Components*
1.0 Introduction • Overview • Heater Components
Igniter/
Sensor Box
Chains are not provided in kit.
Optional accessory. P/N: THCS
16 in. Burner Tube
* Not all items illustrated may be provided with your heater.
Refer to kit contents of the Series Insert Manual.
Tube Hanger
