For 45 degree hanging angle use two

S-hooks and two #1 double-loop chains.

For variety of hanging angles, use the Brass

Knuckle (P/N: BK) fitting with a #1 double-

loop chain and S-hook.

45°

30°

15°

U-Tubes can be mounted at a

15, 30 or 45 degree angle with two

suspension points, using two Brass Knuckle

(P/N: BK) fittings, #1 double-loop chains and S-hooks.

U-Tubes can be mounted from a single suspension

point using a Single Mounting Bracket (P/N: SMB)

with five S-hooks and #1 double-loop chains.

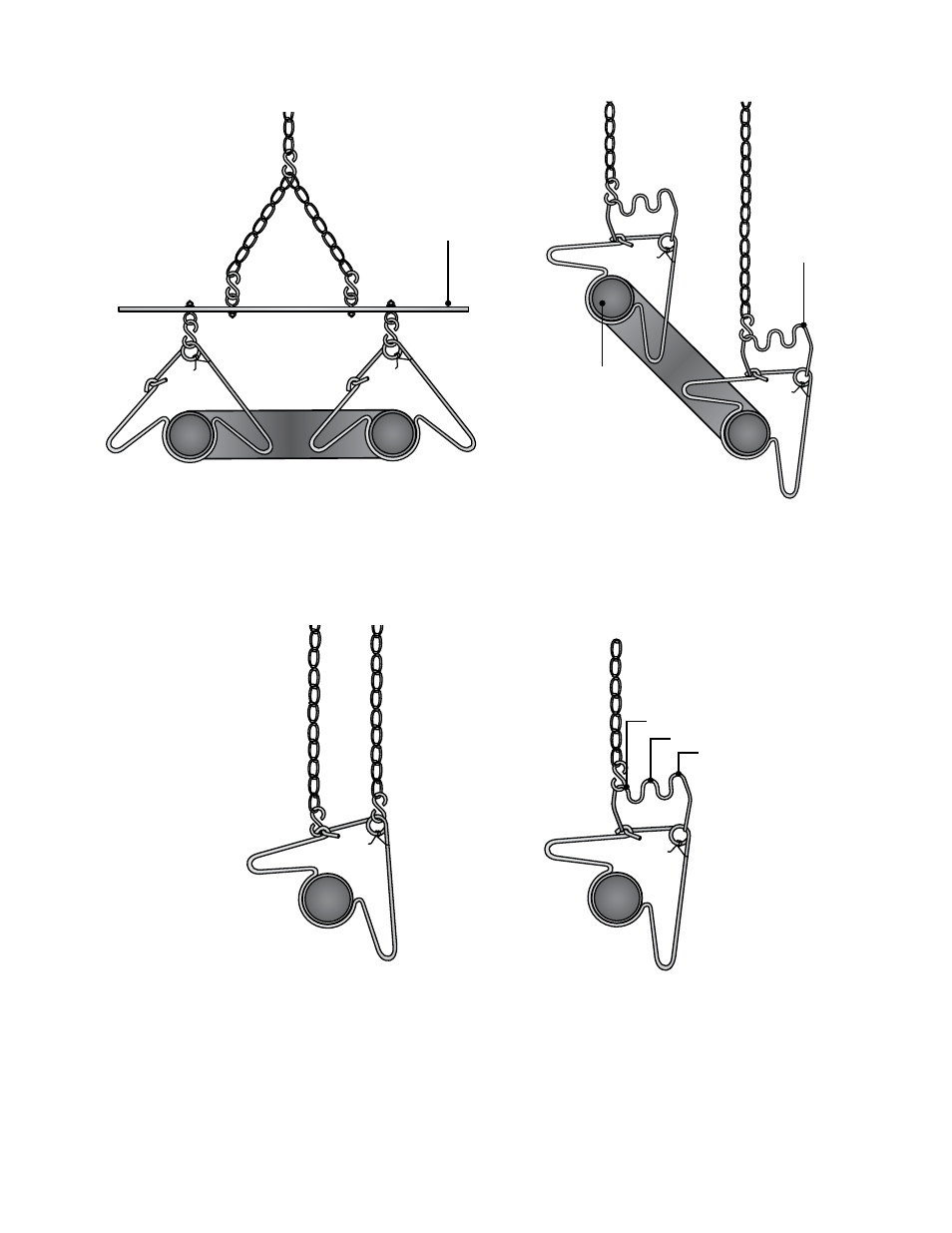

Figure 3.6

U-Tube Hanger Mounting Options

Figure 3.7

Angled Hanger Mounting Options

3.0

Installation

Hanger Placement and Suspension

Exhaust

End

Single Mounting

Bracket

Brass Knuckle
