Reflector Assembly

3.0

Installation

Reflector Assembly

To install the reflectors (see figure 3.16):

Attach the reflector center supports onto radiant tubes.

NOTE: On models equipped with a single

reflector center support, place at mid-point of primary combustion chamber.

Slide each reflector section through the hangers and adjust the reflector tension spring (if applicable)
into the V-groove on the top of the reflector. The reflectors should overlap approximately 4 inches.

To prevent the reflectors from shifting, secure the reflector sections together using sheet metal screws,
except at the expansion joint (see Chart 3.6).

NOTE: Installer to supply sheet metal screws.

Attach reflector end caps (if applicable), with polished finish inward, to each end of the reflector run.
Secure with clips.

Reflectors, and reflector accessories, direct infrared energy to the floor level. The reflector assembly
depends on the heater configuration, proximity to combustibles and space surrounding the heater.
Before you begin assembly, determine if the use of reflector accessories are necessary (see Chart 3.5).

SERVICE

ACCESS PANE

L

CONTROLS & GAS VA

LVE COMP

ARTMENT

1. Disconnect gas & electricity

.

2. Remove four (4) thumbscrews

.

3. Remove top cove

r.

4. Swing hinged panel downward.

KEEP COVER IN PLACE. REMOVE FOR SER

VICE ONLY.

SERVICE ACCESS PANEL

FAN COMPARTMENT


1.
Disconnect gas & electricity.

2. Remove top cover (2 thumbscrews).

3. Remove tsix (6) 1/4” screws.

4. Lift and remove panel.

KEEP COVER IN PLACE. REMOVE FOR SERVICE ONLY.

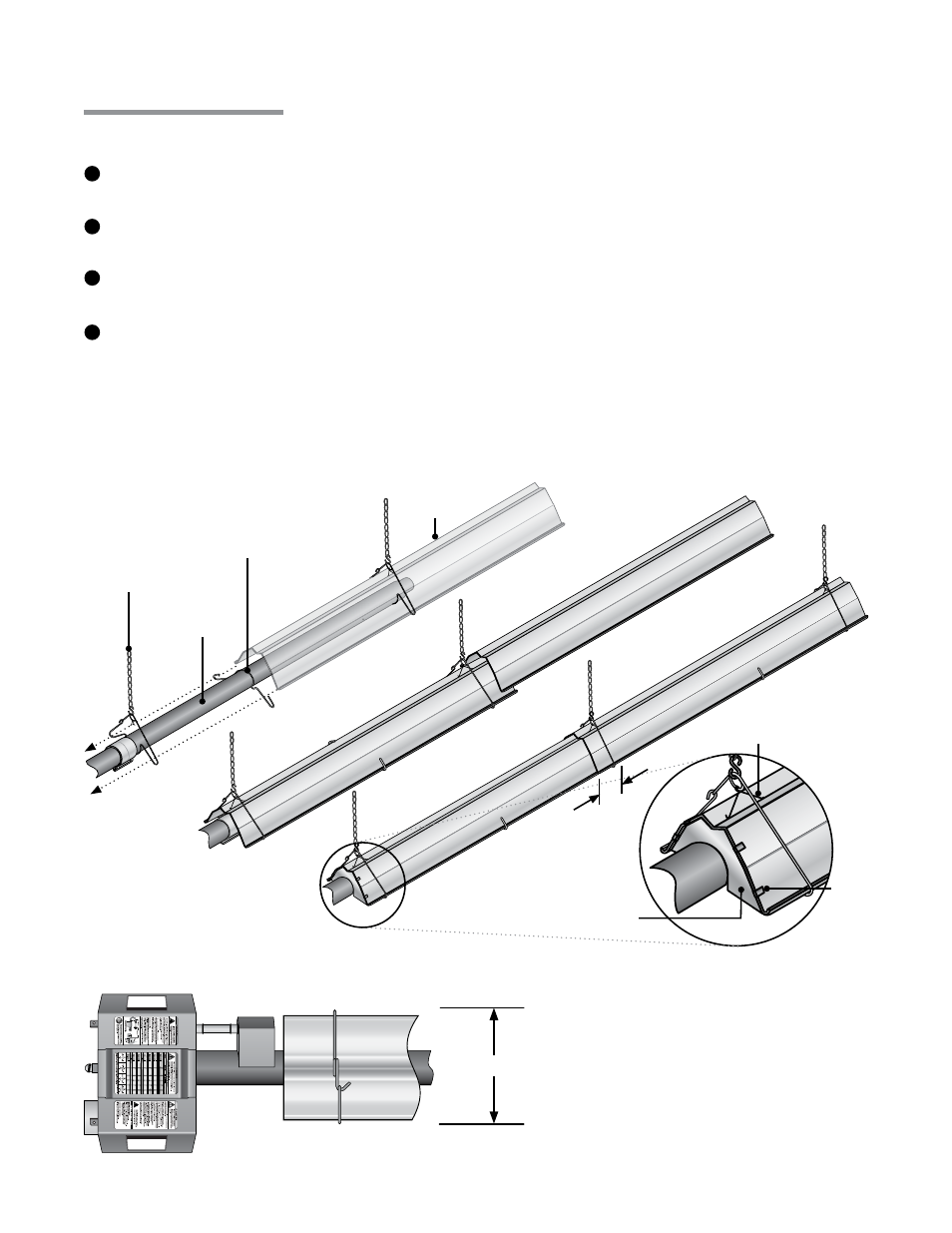

Figure 3.16

Reflector Assembly

Reflector

4” Overlap

Reflector Center

Support

Radiant

Tube

Hanger

and Chain

Reflector End Cap

Reflector Tension

Spring

Clips

13.75”

Figure 3.17

Width of Installed Reflector - Top View

2

1

3

4
