3.0 Installation • Burner Control Box Suspension
Burner Control Box Suspension
Suspending the burner control box must be done in accordance with applicable codes listed in the Safety
section and these instructions.
The burner control box must be in straight alignment with all radiant tubes and level. Contact your local
distributor or the factory to see if your application allows for the rotation of the burner control box.
Determine the mounting chain locations for hanging the burner control box.
Fasten beam clamp, screw hook or other type of suspension anchor to hanging point.
Attach S-hook and #1 double loop chain (P/N: THCS) to anchor. Check that it is securely connected.
Attach chain assemblies and S-hooks to mounting brackets on the burner control box. Adjust chain lengths
until level and in straight alignment with radiant tubes. Burner sight glass will be visible from the floor.

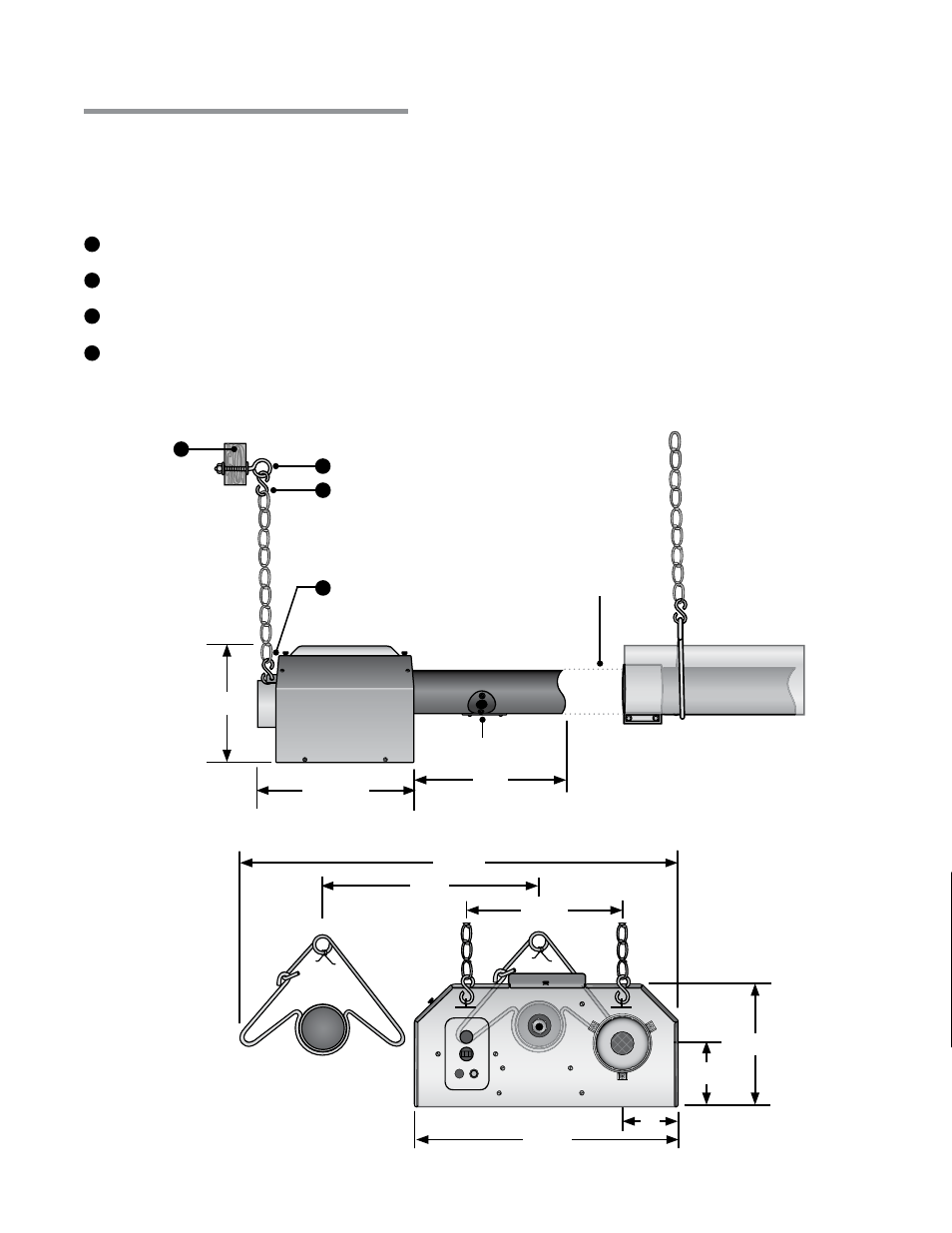

Figure 3.14 • Burner Control Box Assembly • Side View
Burner Sight Glass
Burner Control Box tube is in
straight alignment with 10’
Primary Combustion Chamber
Figure 3.15 • Burner Control Box with U-Bend • End View
1
2
3
4
1
2
3
4
