MOD 30ML Replacement for MOD 30 Instruments
APPENDIX A

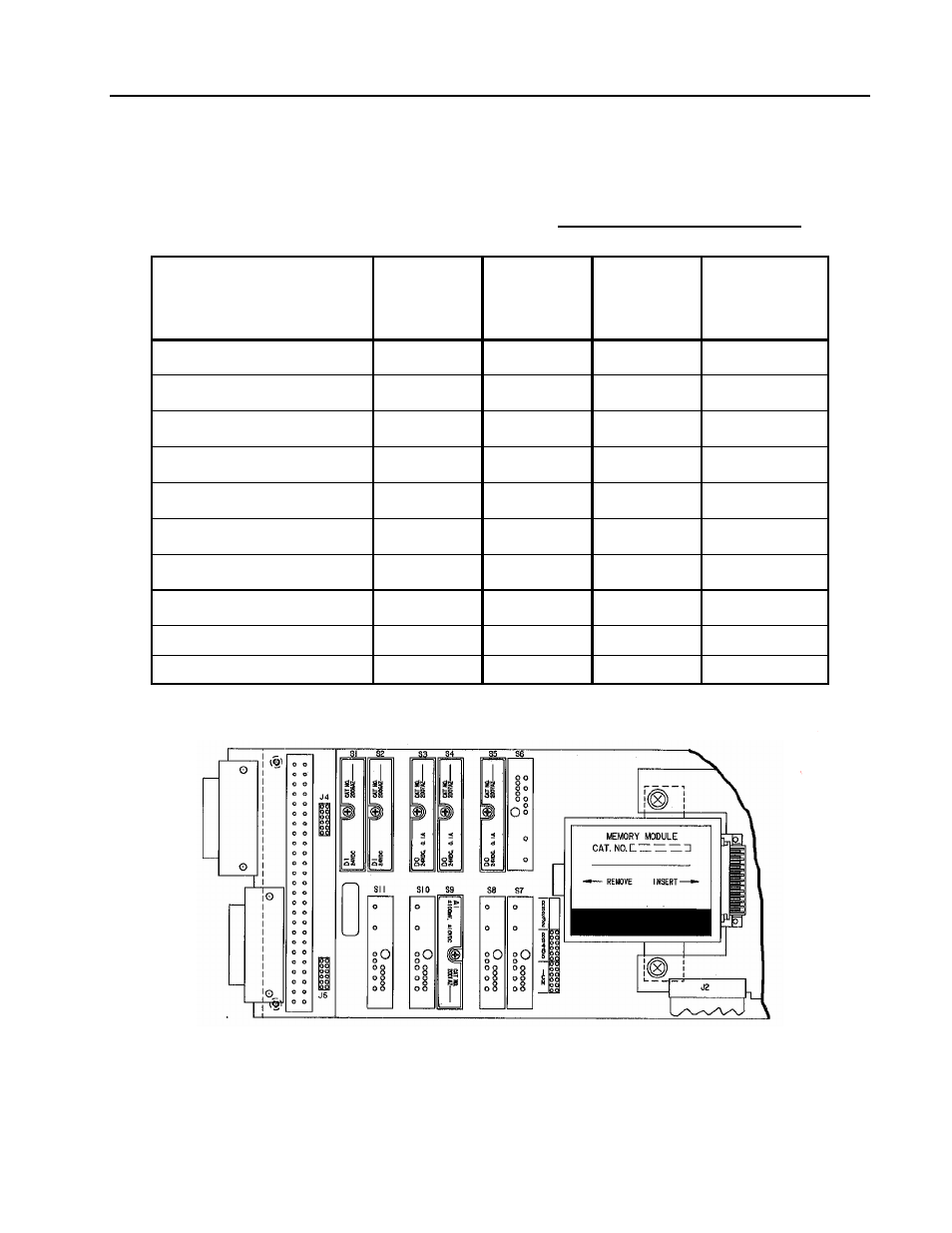

I/O MODULE PLANNING FORM FOR MOD 30 CONTROLLER
MOD 30ML Replacement for Controller No.
Signal
I/O Module
Location
I/O Module
Catalog
No. Module
Package*
(option 2)
No Module
Package
(check if
used)
Digital Input No. 1 S1 2006A
Digital Input No. 2 S2 2006A
Digital Output No. 1 S3 2007A
Digital Output No. 2 S4 2007A
Digital Output No. 3 S5 2007A
Analog Input No. 3 S9 2001A
Analog Input No. 1 & 2 Built-in ////////// //////////
Analog Output No. 1 & 2 Built-in ////////// //////////
Built-in Communication Built-in //////////
ICN Module S7 & S8 2030N
* Factory installed package.
Note: Locations S6, S10 and S11 are not used for a controller.
28
