MOD 30ML Replacement for MOD 30 Instruments

PRODUCT DESCRIPTION

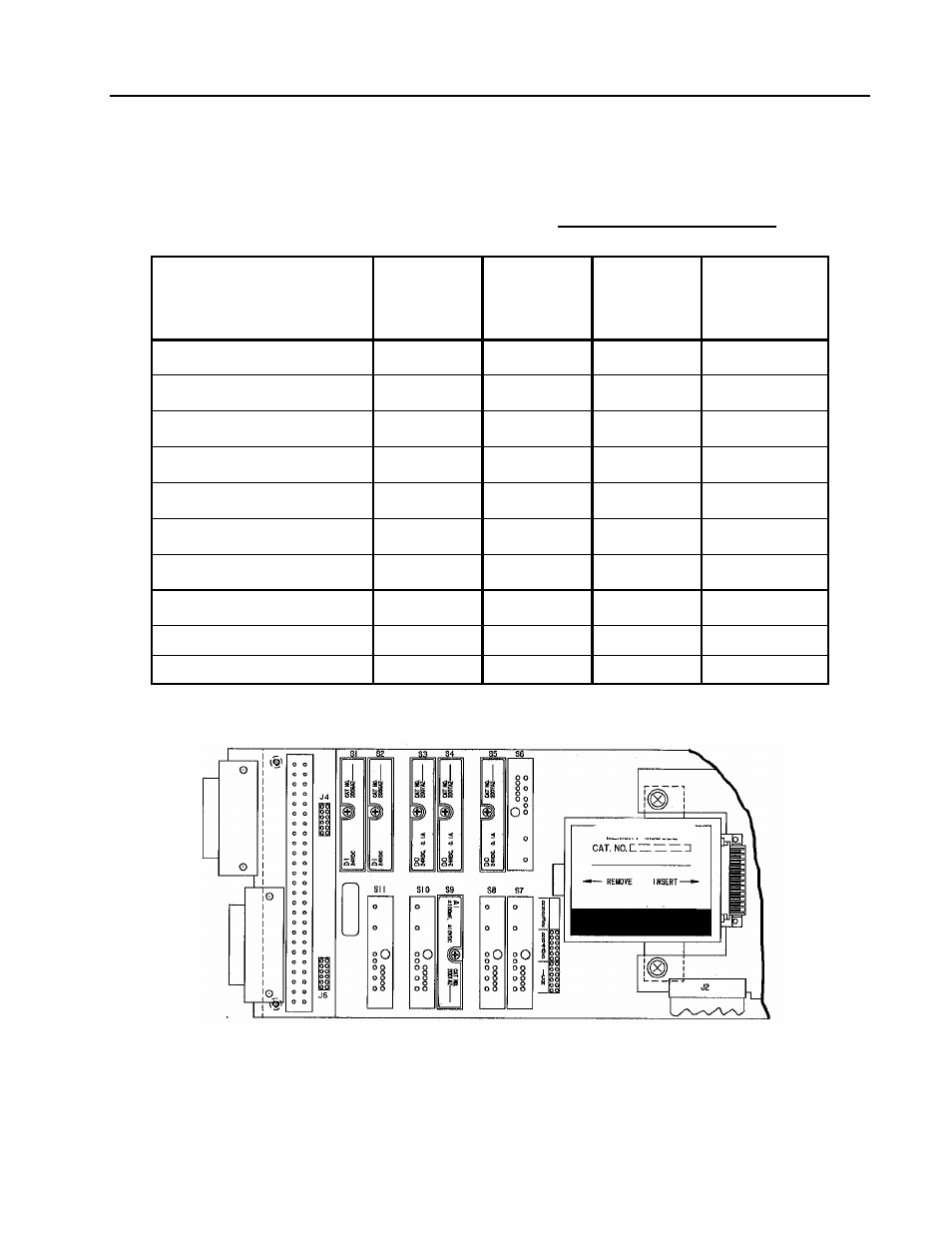

I/O MODULE PLANNING FORM FOR MOD 30 CONTROLLER

MOD 30ML Replacement for Controller No. FIC-102

Signal

I/O Module
Location

I/O Module
Catalog
No.

Module
Package*
(option 2)

No Module

Package
(check if

used)

Digital Input No. 1

S1

2006A

X

Digital Input No. 2

S2

2006A

Digital Output No. 1

S3

2007A

X

Digital Output No. 2

S4

2007A

X

Digital Output No. 3

S5

2007A

Analog Input No. 3

S9

2001A

X

Analog Input No. 1 & 2

Built-in

//////////

//////////

Analog Output No. 1 & 2

Built-in

//////////

//////////

Built-in Communication

Built-in

//////////

RS-232

ICN Module

S7 & S8

2030N

X

* Factory installed package.

Note: Locations S6, S10 and S11 are not used for a controller.

Figure 2-1 Example of an I/O Planning Form for a Controller Replacement
