MOD 30ML Replacement for MOD 30 Instruments
REPLACEMENT PROCEDURE

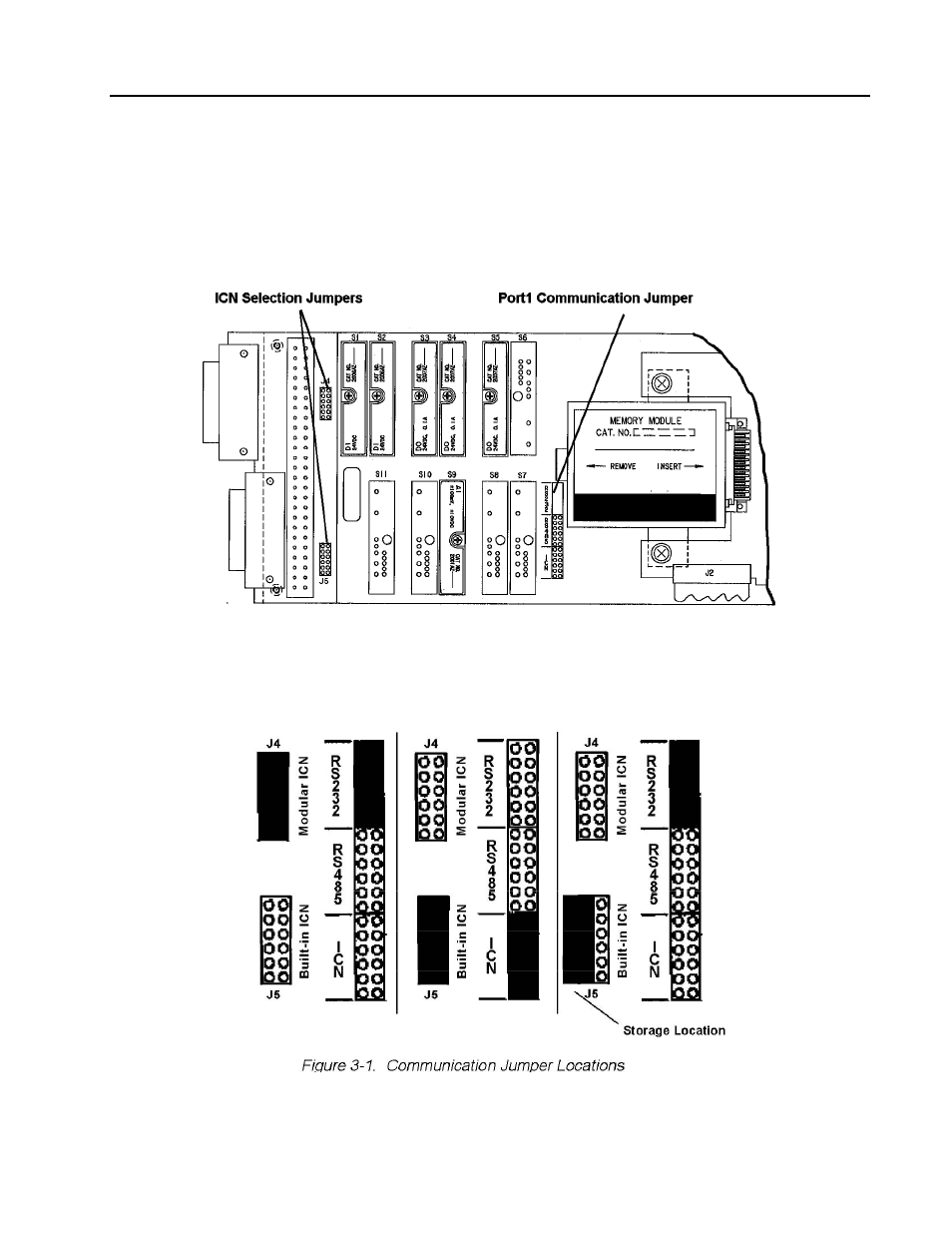

3. Position the communication jumpers, Figure3-1, as follows:
• If an ICN Module is installed, place the jumpers as shown for ICN and RS-232.
• If the ICN is to use the built-in communication circuit (no ICN module), place the
jumpers as shown for ICN ONLY.
• If the ICN is not being used, place the jumpers as shown for RS-232 ONLY.
4. Insert the instrument into its housing and tighten the screws to draw the front panel tight
against the housing.
Communication Jumper Locations
ICN & RS-232
ICN Only
RS-232 Only
21
