3.2 Fill Solvent cleaning tank with at least 5 litres of Acetone (see caution note below) Maximum
20 litres. Use smaller white filler cap opening to do this. Replace cap (Do not fill solvent tank
through the large RED cap.)
Caution Note- DO NOT FILL the cleaning tank with solvent when the machine is fitted with
the SP3-NSH non solvent water based cleaner system tank. Use only water based cleaner in
these circumstances. E.g. RST-5 and HtwoO proprietary liquid cleaning systems
The SP3 NSH tank is marked as such and is distinguished by external electrical heater
attached.
3.3 To enable access to fill the Catalyst bottle, first the black plastic catalyst feed pipe bottle top
union must be loosened to release the grip on the catalyst feed pipe. With this done, unscrew
the white bottle cap and fill bottle with the appropriate catalyst for Polyester resin to be used.
Replace cap and finger tighten the catalyst feed pipe once the filter end is immersed and is
touching the bottom of the catalyst bottle.
3.4 Place resin pickup pipe into suitable drum of pre accelerated polyester resin. Secure pipe so
that as resin container becomes empty (Lighter) the resin feed pipe does not pull the container
over causing a spillage. Also place resin recirculation pipe end securely into resin
container.
3.5 Remove grey frp. ratio arm guard (two M6 cap screws) and remove lower stainless steel
resin pump guard (two side M5 button cap screws) When screws are removed the stainless
steel lower cover guard can be removed by sliding up 10mm before withdrawing from chassis.
The resin lube cup can now be filled. Fill resin pump Lubrication cup (Gold block at top pump
body) with pump lube.

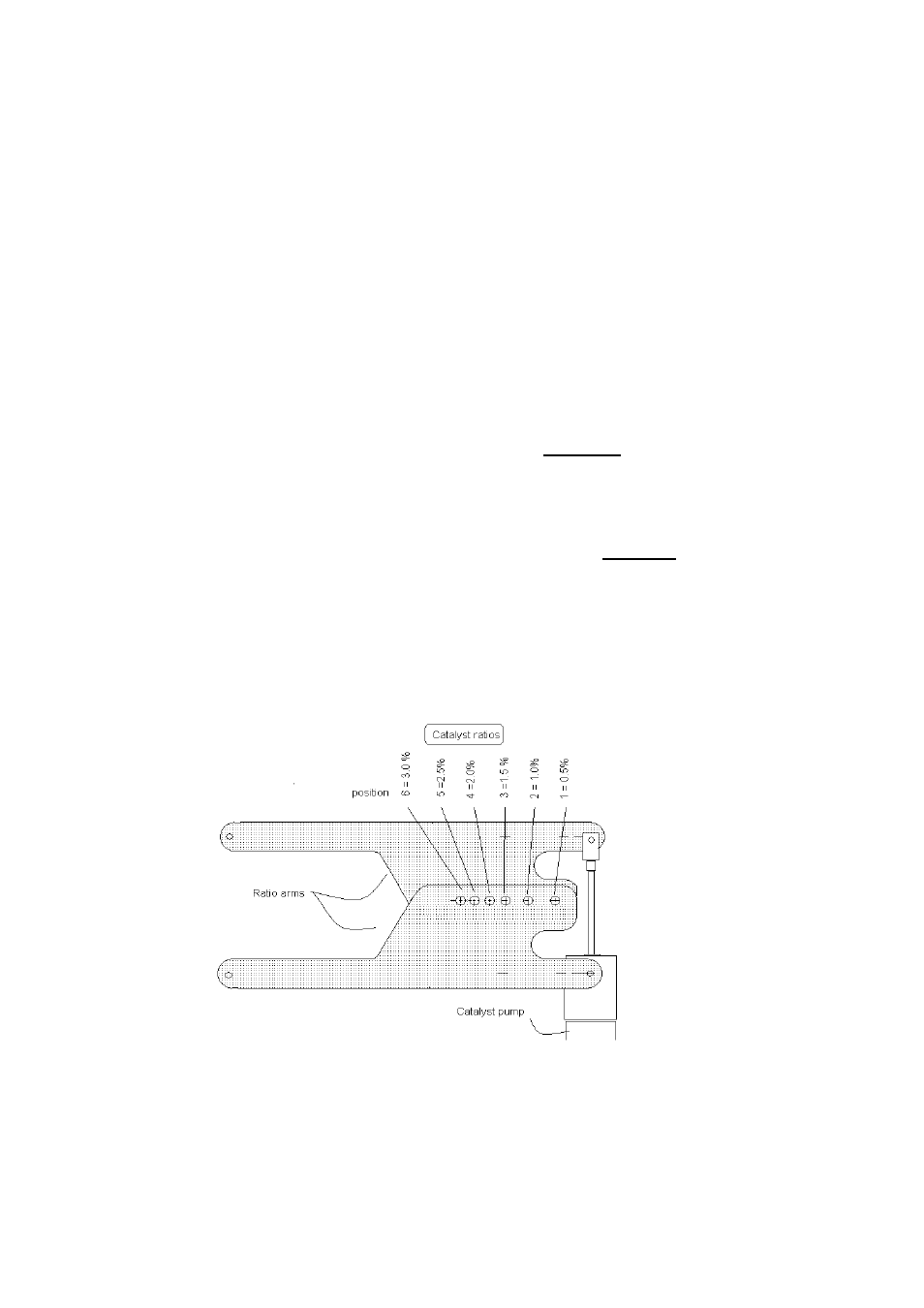

3.6 Set Catalyst ratio to 3%. Pivot bolt in position 6. (Figure 30) above
