insufficient volts the lower yellow light will flash. If this condition is observed immediately renew
the battery.
Gel time Changes
If the gel time is to be reset to another time interval it is necessary to access the rear of the
RGA enclosure. Here will be found a small blue adjuster wheel on the box rear face. By
rotational switching clockwise the time will be increased and decreased if rotated anti clockwise
As previously stated, the time before the alarm is activated can be selected by the user, based
on the resin system being utilised. On the SSB machine model it is necessary to open the
control fascia to access this RGA rear position. This is achieved by setting the rotary switch,
located on the rear of the RGA, to the position for the required time as specified in the following
table.
SWITCH SETTING Pump inactivity time (minutes)
0 0.25
1 0.5
2 1
3 2
4 3
5 4
6 5
7 6

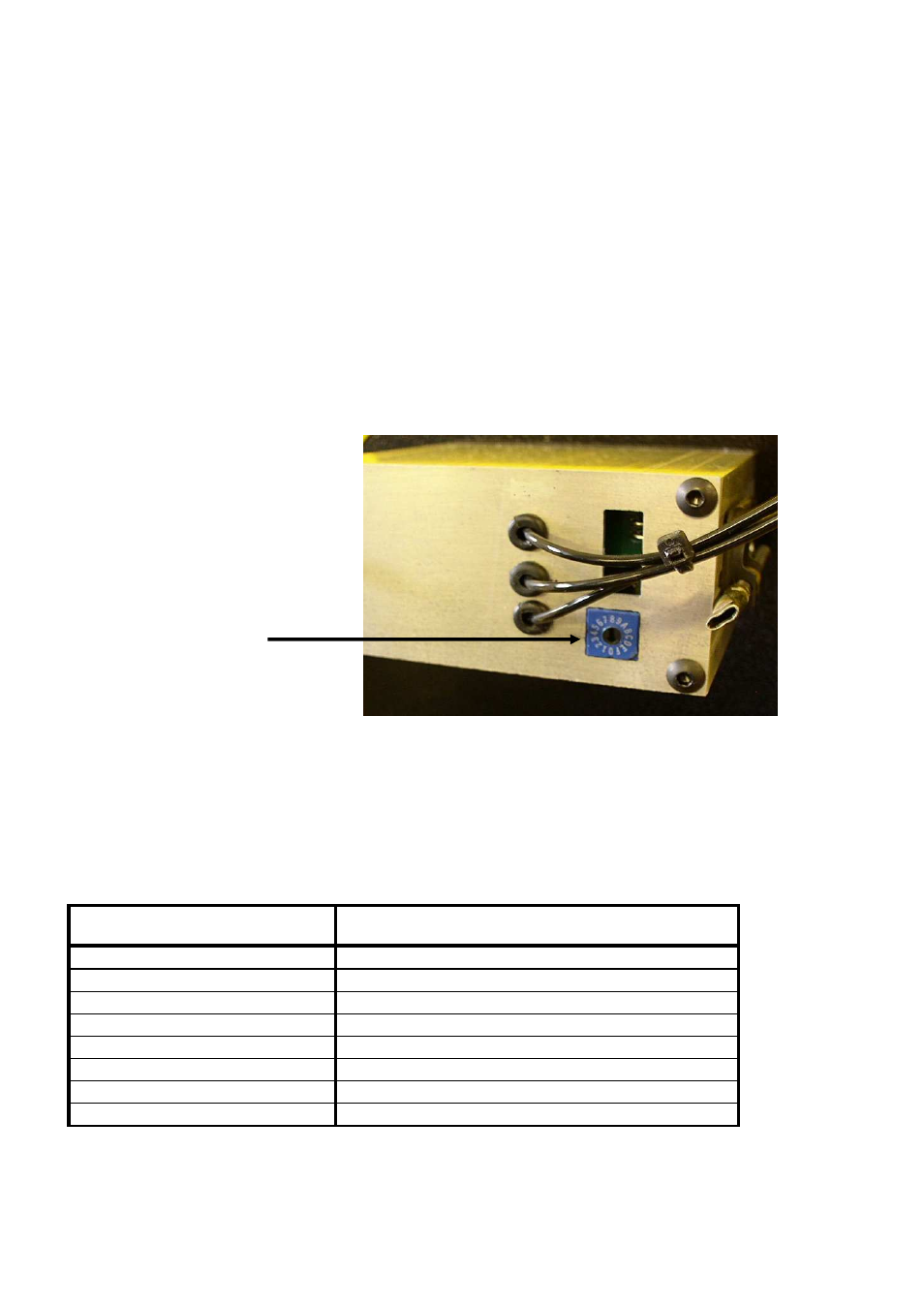

RGA Alarm time set switch.
Use small screwdriver to
adjust. DO NOT force beyond
stops
