Magnum Venus Plastech PATRIOT SSB Commissioning and instruction User Manual
Page 20
SSB_Auto Instructions Issue 05
Page20
The valve should only need servicing if air or catalyst is noted to weep from between the air
cylinder 6078 and Stainless steel body 6067. In this case the O ring 3316 should be renewed.
If catalyst appears to weep back to the catalyst bottle during injection mode then the internal
spool O rings (6004) need replacing.
If catalyst is observed to weep from the injection nozzle during recirculation mode then the small
front O ring (6079) needs replacing. .

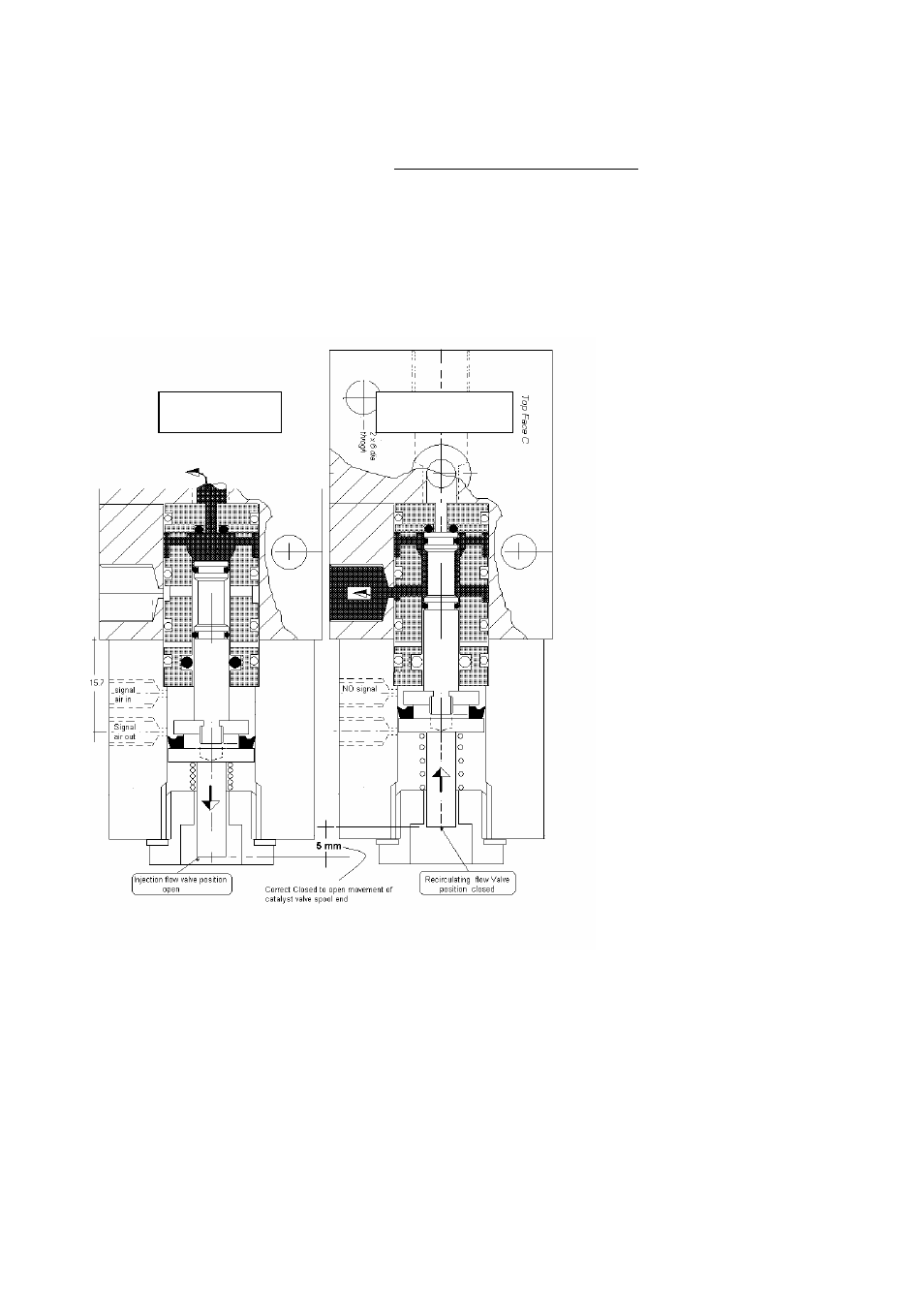

Illustration of Catalyst
Auto valve cross
section showing
catalyst flow and
correct position of air
actuator for
A. injection flow
And
B. recirculation flow
Injection
Recirculation
