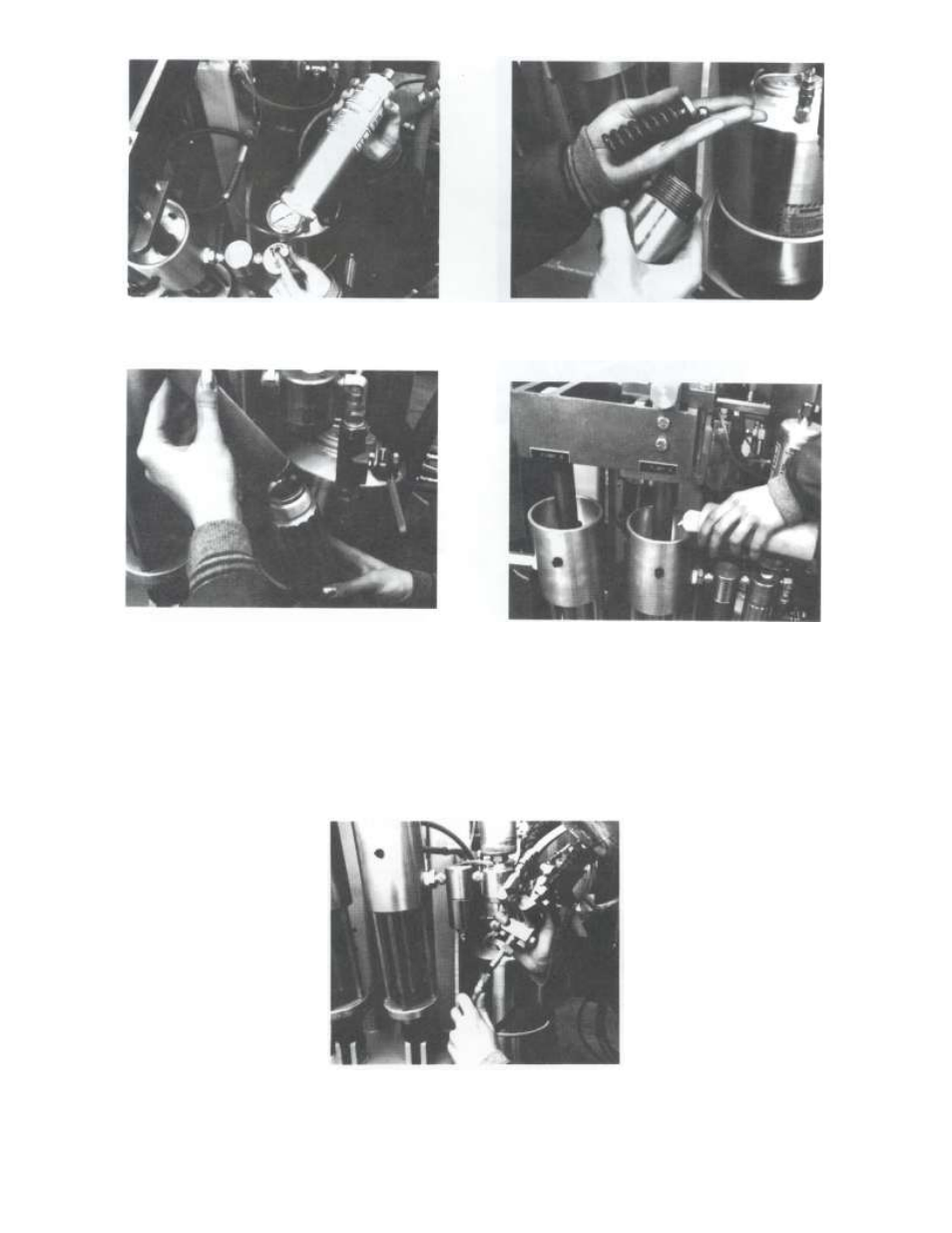

(Figure 32. Disassemble Accumulators) (Figure 33. High Pressure Relief Valve) .
(Figure 34. Clean Filters) (Figure 35. Fill Pump Shaft Oil Cups)

Thoroughly wash all components with the proper solvent. Flush solvent through the high-pressure
relief valve hose by using the special gun adaptor fitting supplied with the unit. (See Figure 36)

During this procedure, the pump filters should also be thoroughly cleaned. Liberally apply appropriate
lubricant to all threads to prevent thread damage when filters are reinstalled.

Thoroughly clean pickup wand pipes with solvent and cover pickup wand screens with plastic film to
prevent moisture contamination.
(Figure 36. Purge High Pressure Relief Hose)
