CHAPTER 9

WEEKLY MAINTENANCE


Maintenance Procedures

DANGER: Never Remove Accumulator Safety cover When Pressure Is Present in The Variable-Stroke Pump
Accumulator!

Preferably Friday evening or the last workday of the week, perform the following maintenance steps:

Clean the high pressure relief valve system and accumulators.

Clean fluid filter with proper solvent.

Bleed all water traps, compressor system and water trap located on air manifold (on pump pivot support

bracket) (see Figure 30).


Check and fill the following lubrication systems:

Check air motor pump oiler attached to power head, (see Figure 31) and fill lubrication systems if

needed.

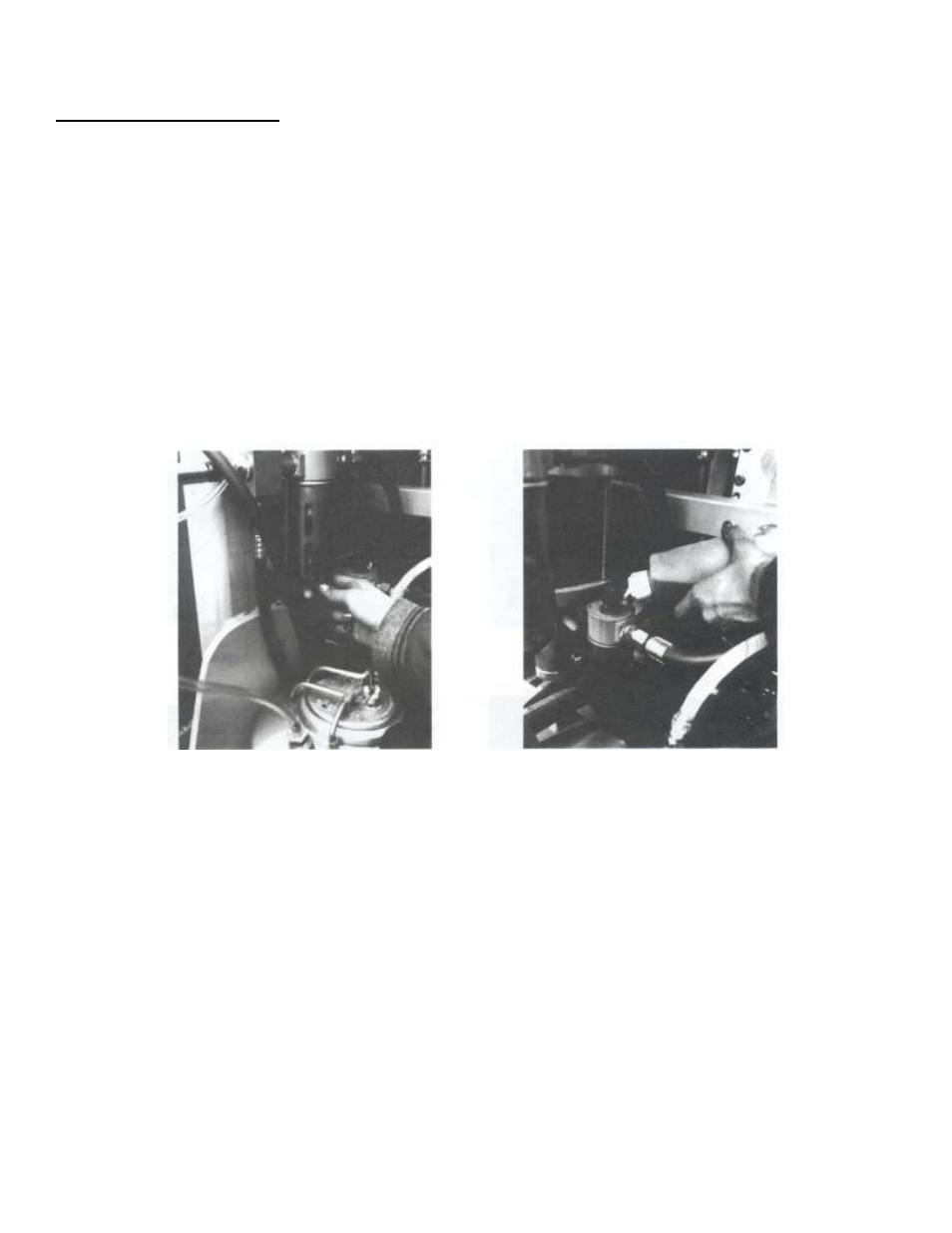

(Figure 30. Bleed Water Traps)

(Figure 31. Fill Pump Oiler)


DANGER: Failure To Clean Pressure Relief Valve System Can Result In Rupture Of Accumulators, Hoses, Or
Heaters!

Clean both pump accumulators on a weekly basis, as well as the high-pressure release valve (located between
the variable-ratio pump and its filter) using the following procedure:

Disassemble both accumulators, the filter, and the high pressure relief valve (see Figures 32, 33, 34).

Remove charging valve caps from accumulators. Shield eyes from valve and release all air and fluid

pressure charge from accumulators. (Refer to “REMOVE PRESSURE,” and “REMOVE AIR
PRESSURE.”).

FLUID “PUMP R” AND “pump h”: shaft lubrication cups must be filled to 1” depth (see Figure 35).
Check pump shaft for signs of gelled material which indicates a need to replace pump shaft packings.
