Magnum Venus Plastech DP-1000 (EPO3) User Manual
Page 11

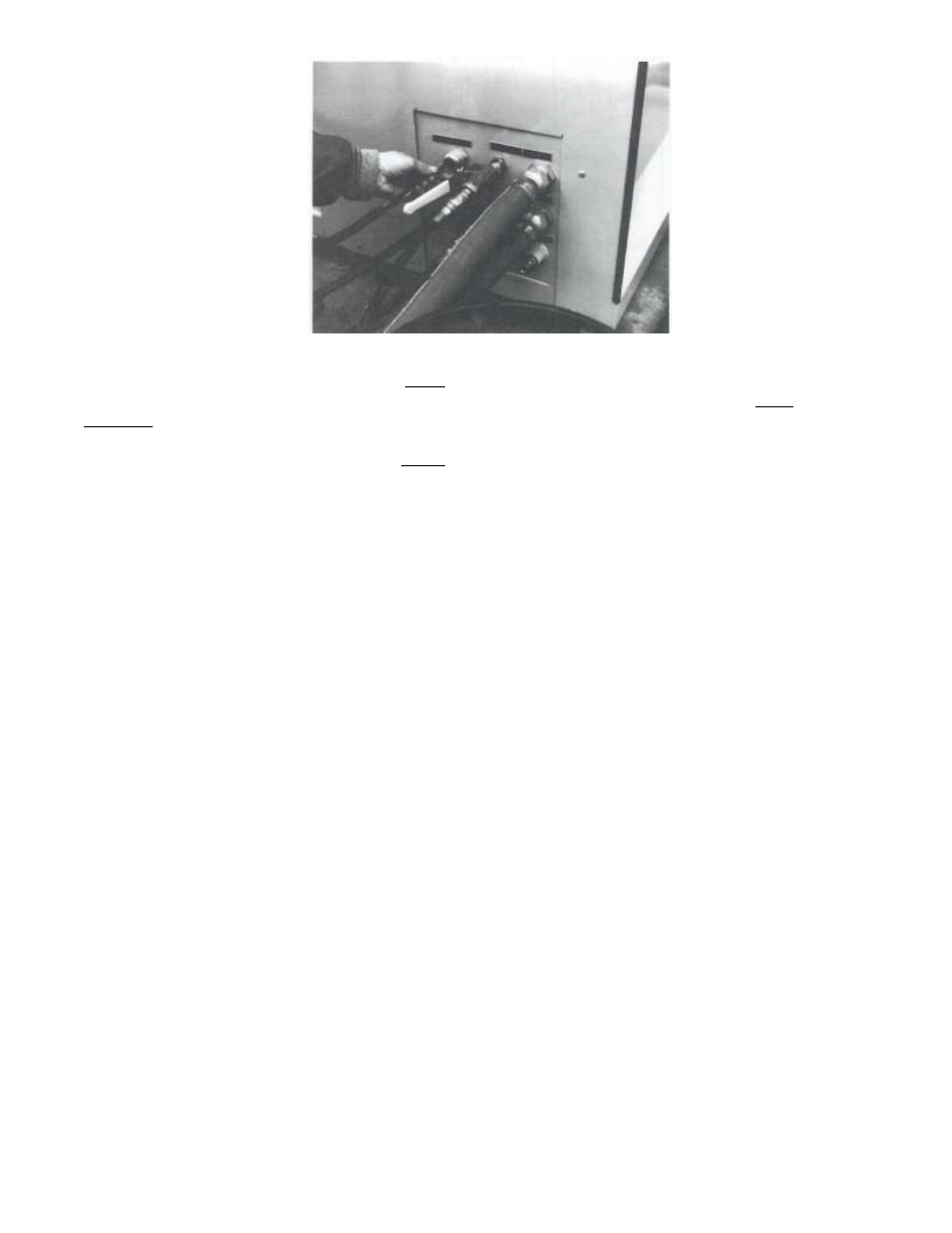

(Figure 4. Power Supply Connection)
Install gun hoses at OUTLET PANEL with black supply hoses and recirculation hoses attached at left side
of right panel according to fitting sizes (see Figure 3). Be extremely careful to attach the resin and
hardener recirculation hoses to the proper fitting or material cross-over can occur. Use colored tape to
color-code hoses according to material.
Place pickup wands into barrels or attach green hoses to bottom fitting on bulk containers. Place
recirculation hoses into proper containers, being careful not to mix hoses and move materials between
containers. Colored tape should be applied to the hoses to ensure material is not accidentally crossed
over.
Attach Air Lines
WARNING: Air Pressure Should Not Exceed 120 psi!
Install air line (at least ½” diameter) to unit and air compressor capable of at least 40 cfm. Attach air lines
to right side of INLET hose panel.
