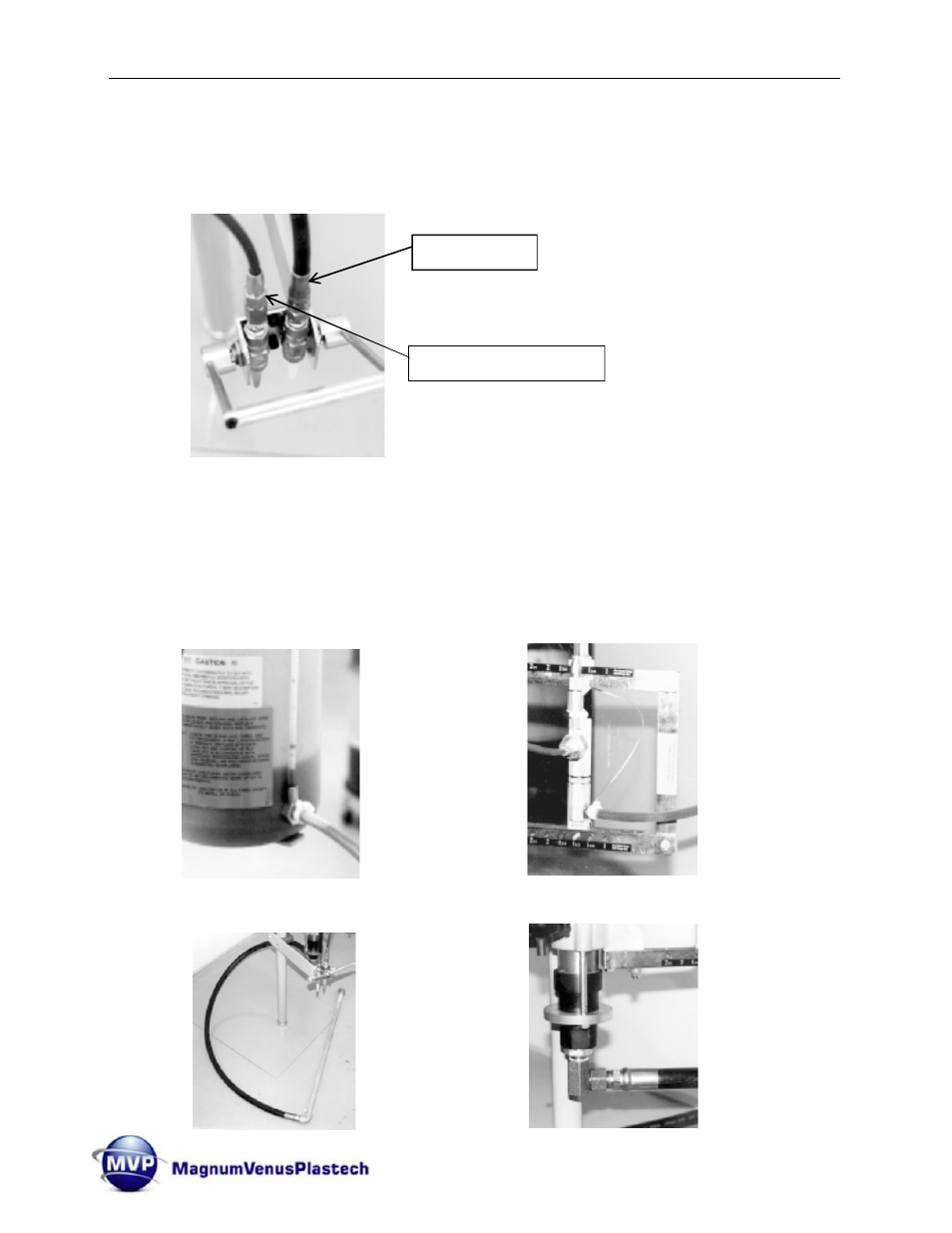

Hose Connections:
1. Resin Hose – connect the resin hose from the pump to resin valve on the dispense
head. (See Fig. 4)
Fig. 4
2. Catalyst Hose – connect the catalyst hose from the catalyst pump output to the
dispense head. (See Fig. 4)
3. Catalyst Return Hose – connect the catalyst relief valve back to the top of the
catalyst jug.
4. Catalyst Pump Feed Hose – connect the outlet of the catalyst jug to the catalyst
pump inlet. (See Fig. 5 & 6)
Fig. 5
5. Resin Pump Pickup Wand Assembly – connect the pickup wand to the resin pump
inlet. (See Fig. 7 & 8)
Fig. 7
Resin Hose
Catalyst Hose
Fig. 6
Fig. 8
