Quick Shot Operations Manual
Rev. 03/2013 Page | 18
Getting Started:
Warning: before preforming any operations on the Quick Shot be sure read and
follow all Safety information.
MATERIAL REQUIREMENTS:
1. Minimum of 5 gallons of resin
2. Minimum of 1 gallon of catalyst

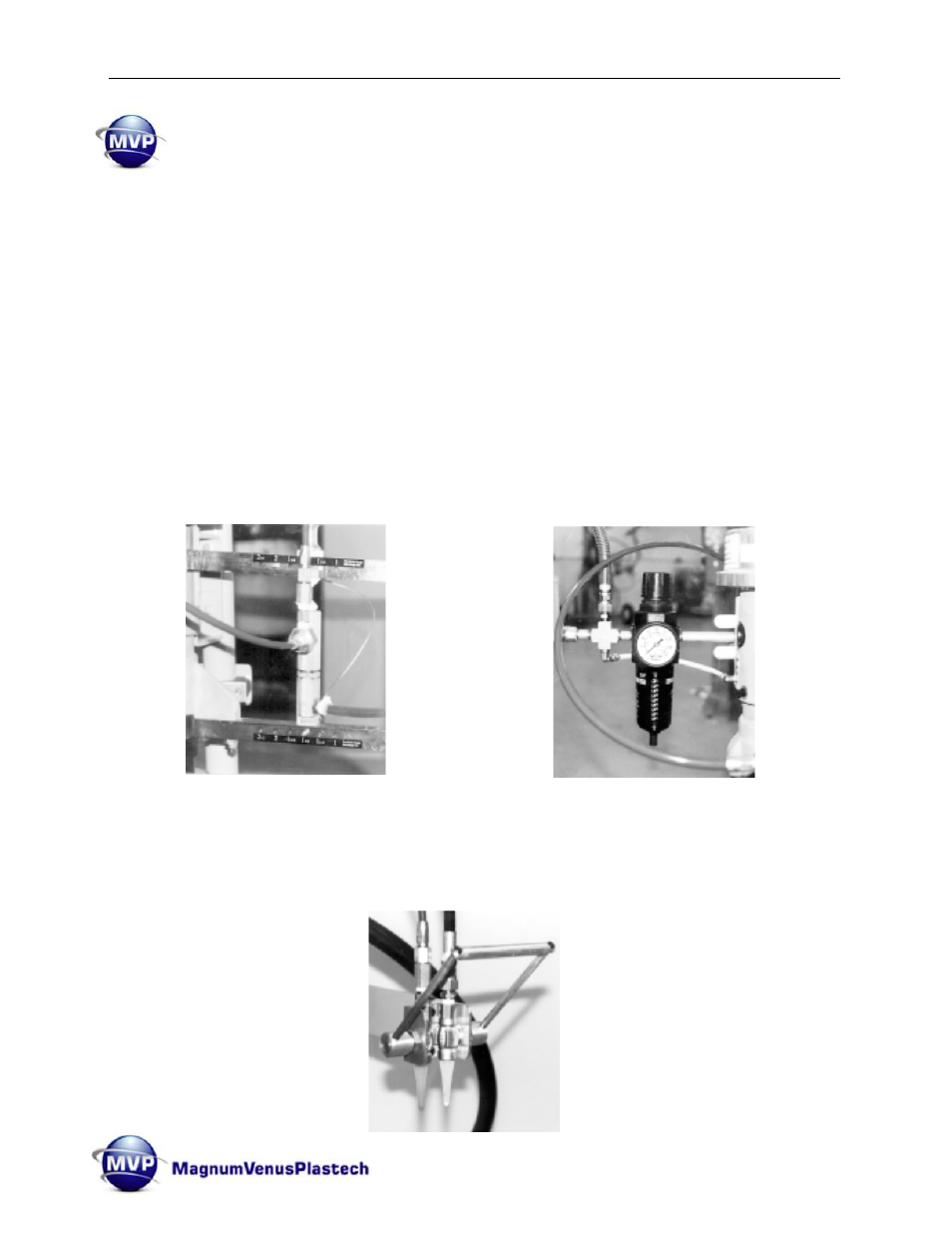

CONTROLS:
There are only 3 basic control features on the Quick Shot:
1. Catalyst pump movement along the slave arm to increase or decrease catalyst
percentages. (See Fig. 1)
Fig. 1
2. Adjustment to the air regulator/filter knob that increases air pressure to the resin
pump. (See Fig. 2)
3. Parallel Ball Valve Assembly that turns the resin and catalyst supply on or off.
(See Fig. 3)
Fig. 3
Fig. 2
