Quick start instructions – Magnum Venus Plastech Quick Shot User Manual
Page 19
Quick Shot Operations Manual
Rev. 03/2013
Page | 19
Quick Start Instructions:
1. Prime resin pump
2. Adjust the catalyst percentage
3. Prime Catalyst pump
4. Slowly increase pump air regulator to desired output.
5. Check all hoses for fluid and air leaks

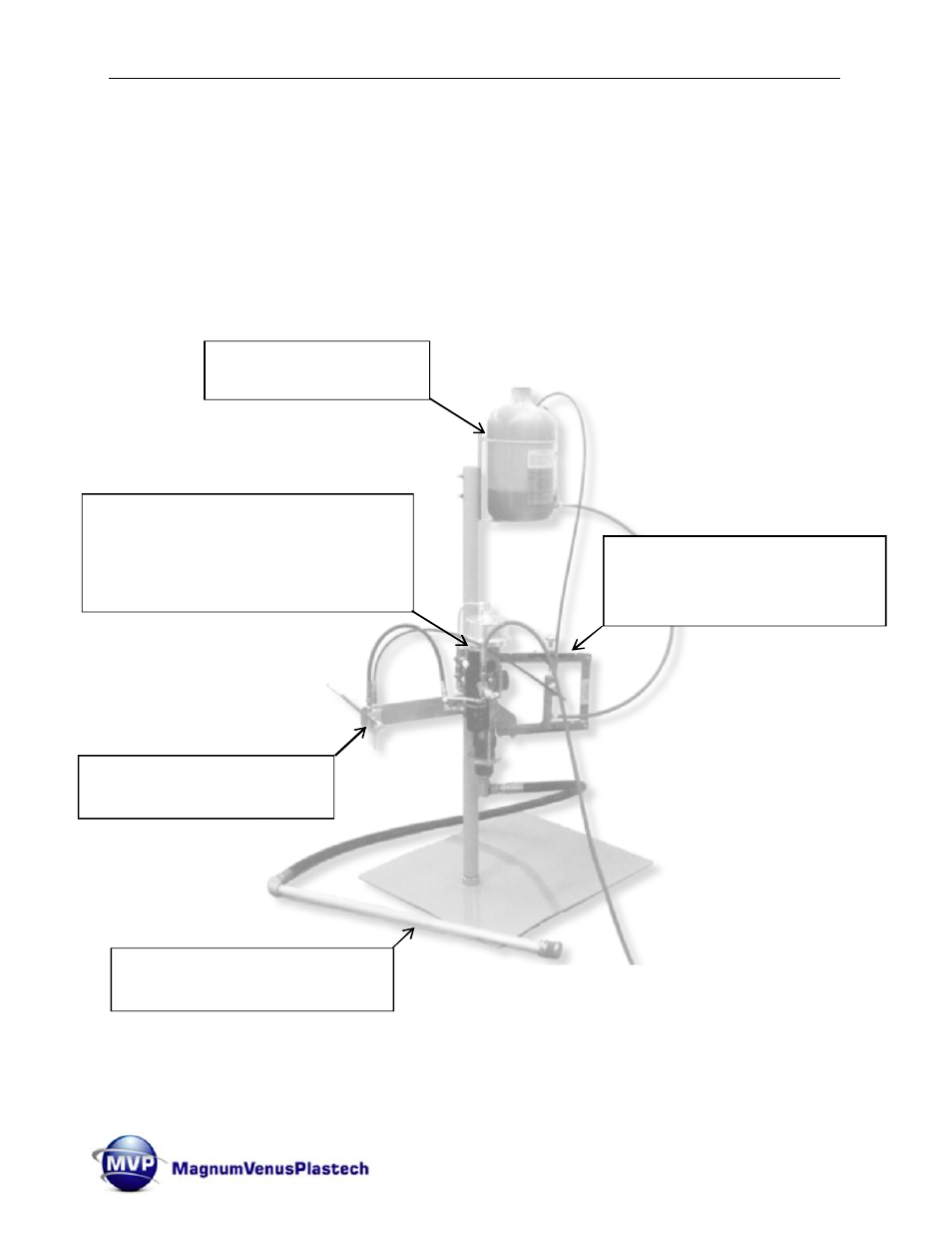

Fill the Catalyst Jug at
least half full of catalyst.
Set the Material Output by increasing
the Pump air pressure regulator.
CW = Increase
CCW= Decrease
Adjust the catalyst percentage
by moving the Catalyst Pump
on the Slave Arms.
Activate the Dispense Head
to dispense catalyst & resin
Resin Suction Wand Assembly
– Resin Supply
