Installation overview
This manual assumes a meter system and an LCR-II Lectrocount register is installed on the truck. Only the physical
and electrical installation of the DMS will be covered. Specific installation requirements will vary with the model of
vehicle and the configuration of the existing meter system.
InsTallaTIon
Components supplied with the dMs
• DMS CPU Module
• DMS Lap Pad
• Mounting Brackets
• Ground Strap Kit
• Epson Printer (optional)
• Printer Power Cable (w/ printer)
• Printer Data Cable (optional)
Parts supplied by Installer
• All conduit/cable glands
• All fittings
• Hardware for mounting brackets
• Non-standard cables or cable extensions
vehicle system Checklist
� Ensure the vehicle produces at least 12.6 VDC to reliably power the DMS, LectroCount register, and
control valve solenoids. Consult the manuals of each component for power consumption requirements.
� Clean any corrosion from the battery terminals and battery cable to guarantee a solid connection.
� Charge the battery in accordance with manufacturer’s specifications.
� Check the alternator capacity and ensure it can meet the demands of the DMS, LectroCount register,
printer, control valve solenoids, and all other electrical components.
� Inspect the electrical equipment on the vehicle, and ensure it is properly installed and operating correctly.
� Determine whether the the vehicle is grounded positively or negatively. Consult Liquid Controls if the vehicle
has a positive ground.
� Run the vehicle at a low idle with all accessories on (including the hose reel). Ensure that the voltage does
not drop below +9 VDC. If the voltage falls under +9 VDC, the LectroCount register will power down.
dMs InsTallaTIon
Before beginning the installation, review the Vehicle System Check list on this page and ensure the vehicle is in the
correct condition to run the DMS.
1. Mount the DMS in the cab of the truck.
2. Ground the DMS.
3. Connect the data cables for the LCR-II, the printer, the DMS lap pad, and other components.
4. Connect power to the DMS.

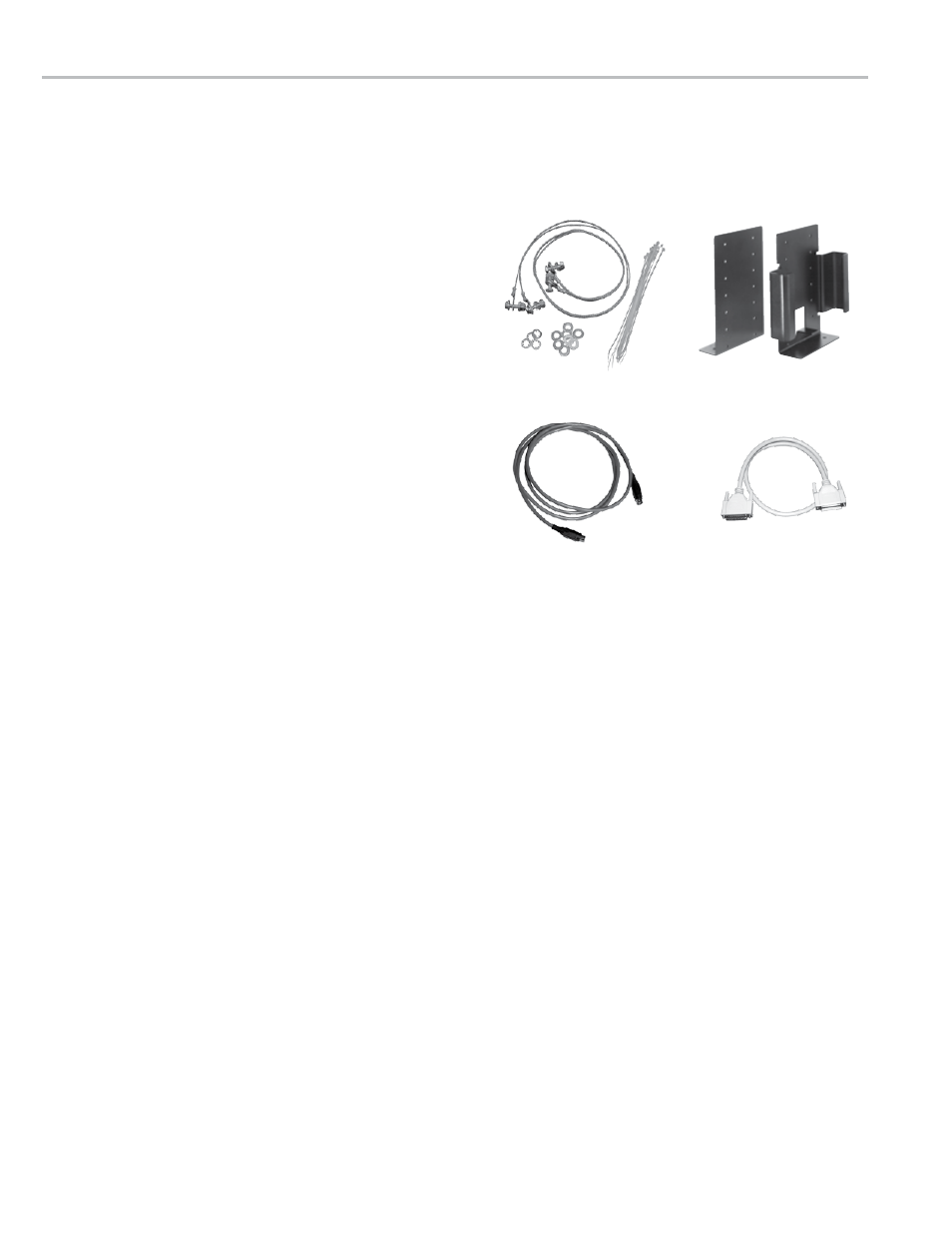

Mounting Brackets
PN 82170
Printer Data Cable
(Optional)
PN 70986
Printer Power Cable
PN 81233
Ground Strap Kit
PN 82180
