16
electronic registration Power -
dMs
The DMS can supply power to one, two, or three
LectroCount registers.
To supply power to lectroCount register(s)
through the dMs:
1. Pull the 10 pin, center terminal block off the back of the
DMS.
2. Connect the red wire from the register’s power cable to
pin 1 and the black wire from the register’s power cable
to pin 2.
3a. To supply power to a second register, connect the red
wire from the second register’s power cable to pin 3 and
the black wire from the second register’s power cable to
pin 4.
3b. To supply power for three registers, connect the the two
red wires from the second and third register’s power
cables to pin 3 and the black wires from the second and
third register’s power cables to pin 4.
4. Replace the 10 pin, center terminal block onto the back of
the DMS.

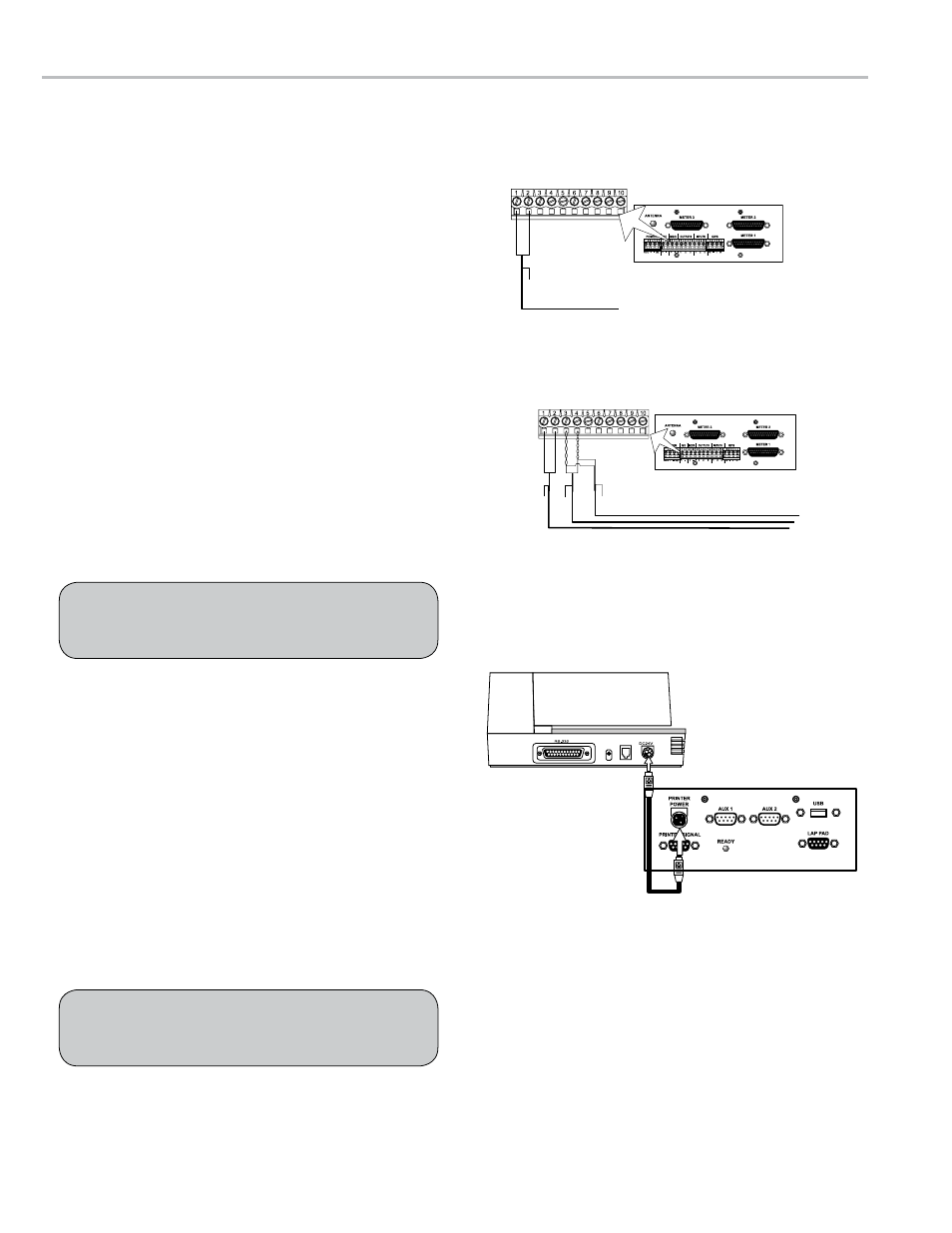

PoWer ConneCTIons
Re
d
Blac
k
Re
d
Blac
k
Register 1
Registers 2 & 3
Drain
Wire
Drain
Wire Drain
Wire
Register Power Cables
81512/84062
Re
d
Blac
k
Drain
Wire
Register Power Cable
81512/84062
LectroCount Register Power Connection
Multiple LectroCount Register Power Connection
Epson Printer Power Connection
If installing the DMS into an existing system, then the printer
may already have a separate power cable with a +24 VDC
converter installed. This may remain in place.
If installing the DMS into an existing system, the electronic
register power supply may already be connected to the
accessory panel. If so, this may remain in place.
epson Printer Power - dMs
The printer operates on +24 VDC. The printer can be
powered through the DMS with a DMS Printer Power
Cable (PN81233) or through the truck accessory panel.
To power an epson slip Printer through the dMs:
1. Plug the power cable into the port labeled “DC24V” on
the back of the printer.
2. Plug the power cable into the port labeled “PRINTER
POWER” on the front panel of the DMS.
