Data conections, Dms lap pad, Epson printer – Liquid Controls DMS Installation User Manual
Page 15
15

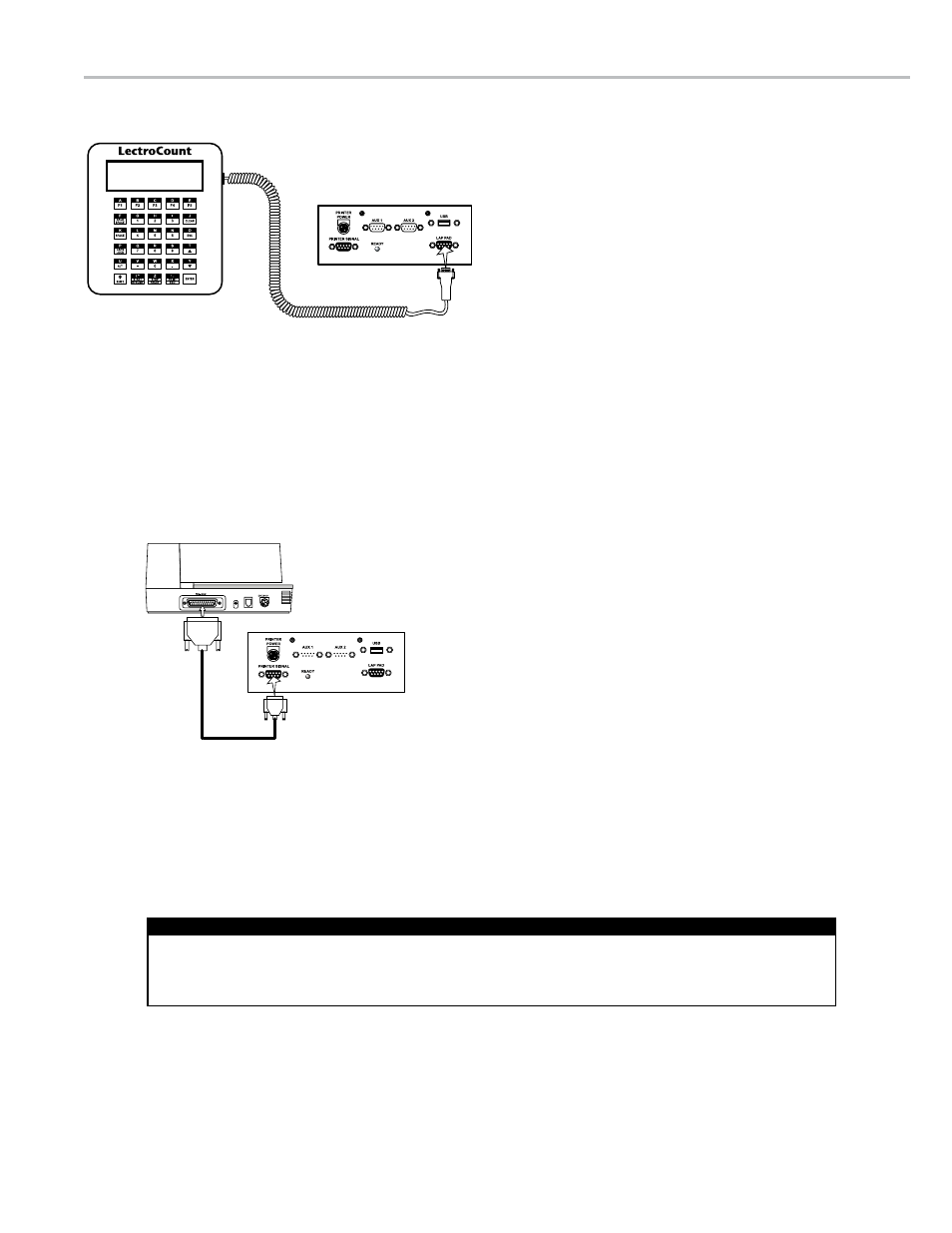

dMs lap Pad
The DMS lap pad connects to the DMS via the attached,
coiled cable. The DB-9 connector plugs into the port
labeled “LAP PAD” on the front of the DMS. Tighten
the two captive screws on the connector to secure it in
place.
daTa ConeCTIons
epson Printer
The printer data cable has a DB-25 connector that plugs
into the back of the printer and a DB-9 connector which
plugs into the “PRINTER SIGNAL” port on the front
panel of the DMS. Install this cable, and secure with the
thumb screws.
Preserve the integrity of cables and their connections to the components. Bind them together with electrical tape, zip
ties, or another fastener, and loop the cables around the mount (or another secure support). This will prevent any
tugging on the connections if the cables are stepped on or pulled inadvertently.
Power and Data Cables
DMS Lap Pad Connection
Epson Printer Data Connection
