Laurel Electronics LAUREATE SERIES 2 SERIAL INPUT METER & REMOTE DISPLAY User Manual
Page 5
5

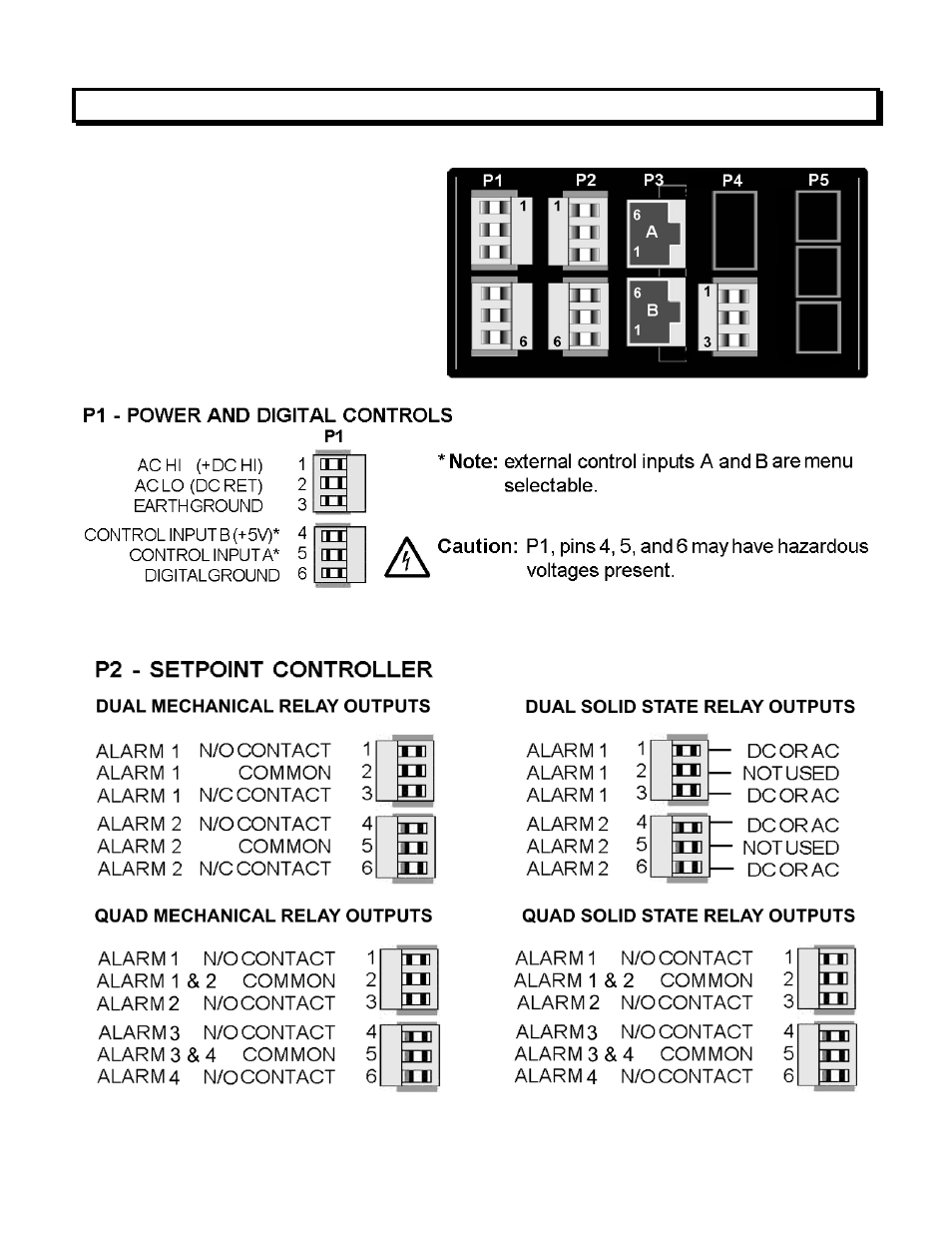

6. CONNECTOR WIRING INFORMATION
CONNECTORS
Connectors for signal and power are U/L
rated screw-clamp terminal blocks that
plug into mating jacks on the printed
circuit board. Communication connectors
are a single RJ11 plug for RS232, dual
RJ11 plugs for RS485, and dual RJ45
plugs for RS485-Modbus.
