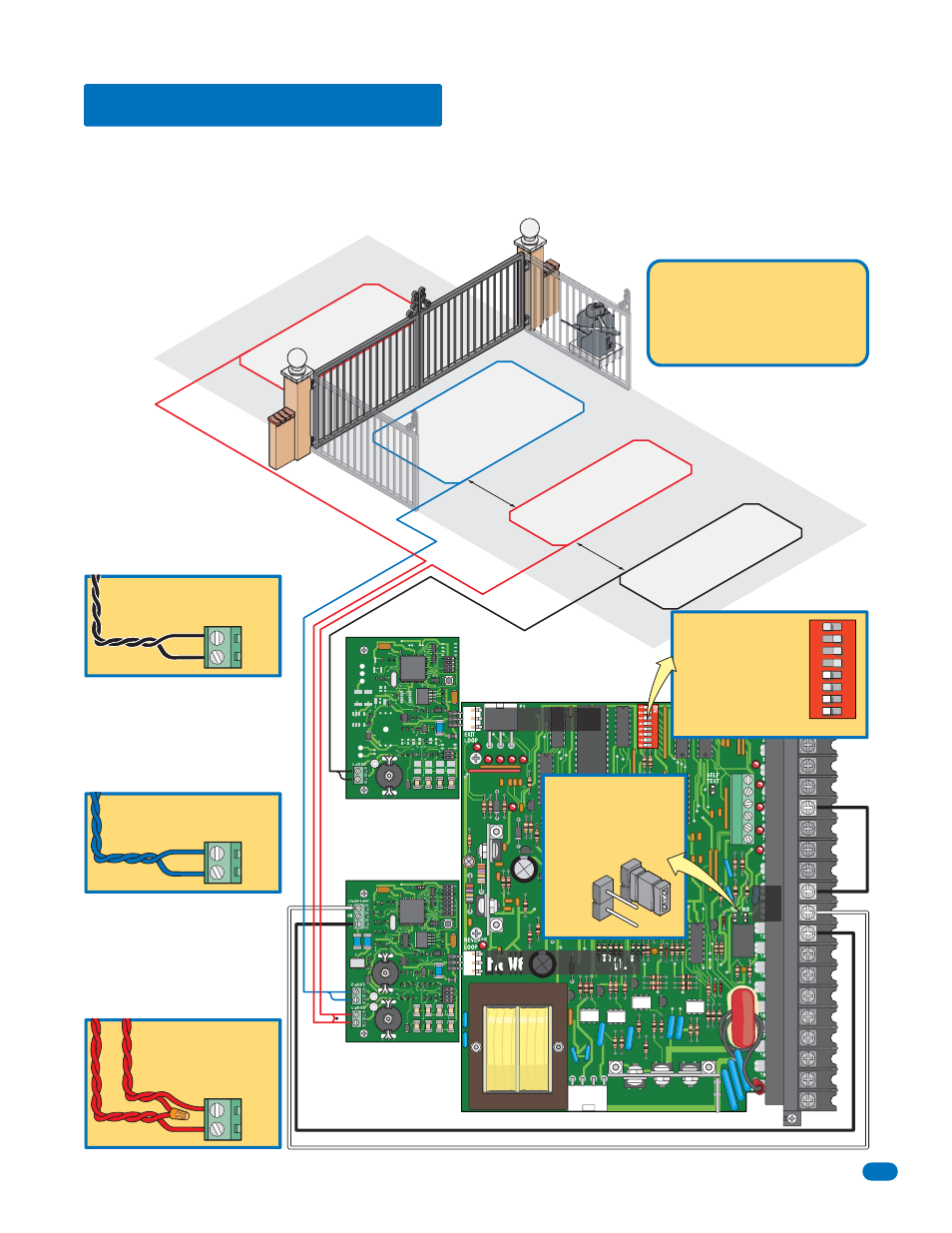

4.3 Loop Detector Wiring

Loop detector wiring is shown for DoorKing

plug-in loop detectors. If other loop detectors are
used, refer to the installation instructions supplied
with those detectors for wiring instructions.

If other detectors are used, use a separate power

supply to power these detectors.

Loop layout shown is for a typical swing gate

application with two-way traffic, or one-way exit
only

traffic.

Com

Jumper

N.O.

Jumper Note:
SW 1, switch 5 OFF.

Relay Note:
SW 1, switches 7
and 8 must be OFF.

Shadow Loop Note:
Circuit board relay
MUST be used and
set to
N.O.

Shadow Loop

Output

4405

DoorKing offers a free “Loop and
Loop-Detectors Information
Manual
” PDF located at
DoorKing’s web site for more
information. www.dkaccess.com

SW 1

1

ON

2

3

4

5

6

7

8

NO

NC

Exit Loop Port

Reverse Loop Port

DoorKing Plug-In

Single Channel

Loop Detector

9410

DoorKing Plug-In

Dual Channel

Loop Detector

9409

LOOP 1

LOOP 2

LOOP 1

To help protect the operator from accidentally closing on vehicles
in the gate’s path, DoorKing highly recommends that loops and
loop detectors be installed. Loops are laid underneath, cut into
asphalt or concrete driveways or buried beneath gravel and earth
driveways. A loop detection system will sense a vehicle like a
metal detector and send a signal to the gate operator preventing
the gate from automatically opening or closing on a vehicle
when it is in the gate’s path. DoorKing recommends that a
licensed installer perform this work.

Relay
Relay

Reverse Loops

are placed on

each side of the gate to prevent the gate
from closing on a vehicle in the gate’s
path. They will stop or reverse the
cycling of the gate while a vehicle is in
or near the gate’s pathway.

Shadow Loop

will ONLY HOLD the

main gates in the Full Open Position when
a vehicle is on the shadow loop. However,
it WILL NOT stop or reverse the main
gates once they start to close.

Automatic Exit Loop

Automatically opens the gate for exiting
vehicles without having to use a transmitter or
keypad. The exit loop can be placed a minimum of 4
feet away from the reverse loop or far enough away from
the gate so the gate has started opening or even completely
opened by the time you drive up to it (Free exit).

4 Ft.

min. to avoid gate

movement inter

ference.

4 Ft.

min. to avoid reverse

loop inter

ference.
