SECTION 1 - INSTALLATION

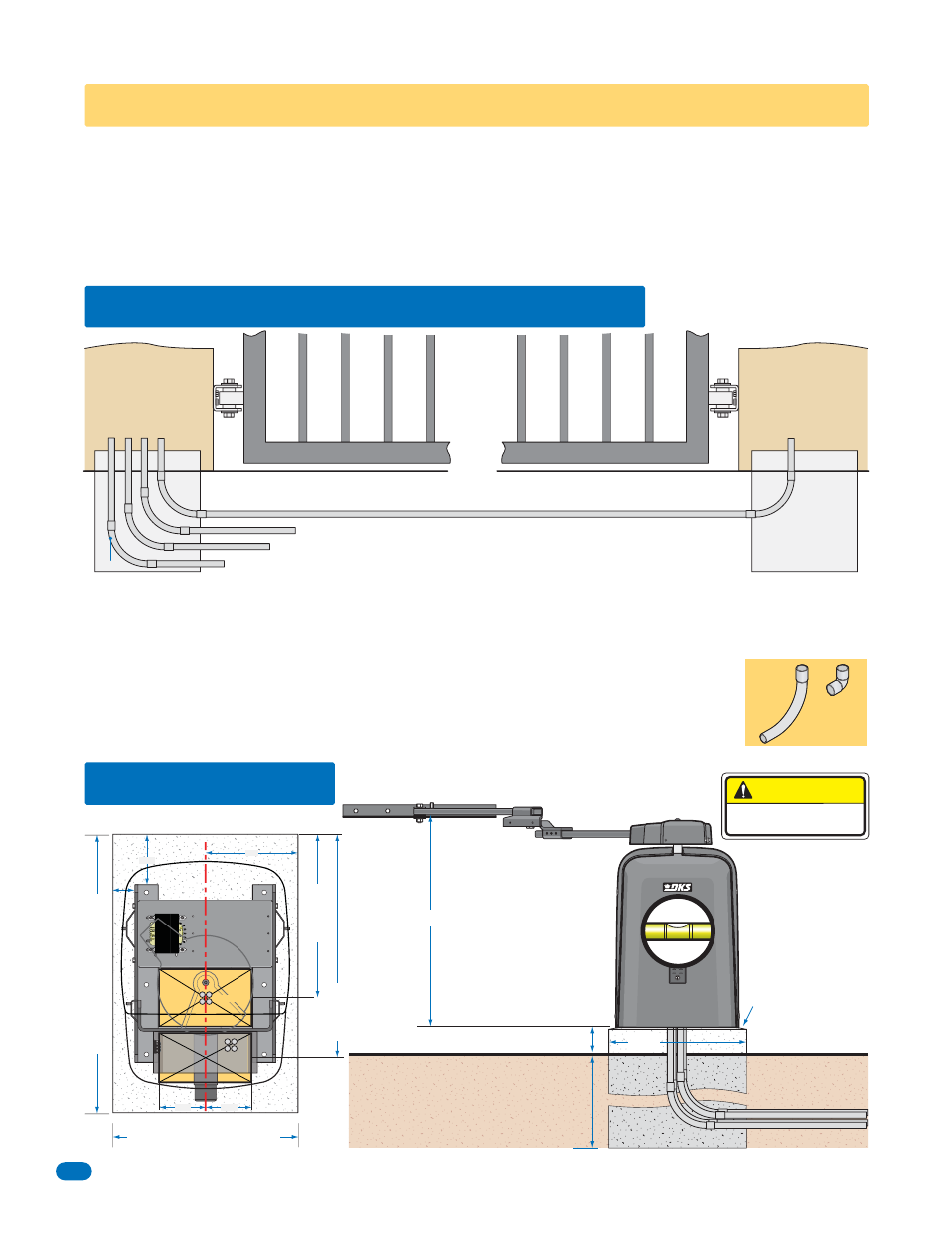

1.1 Underground Conduit Requirements
1.2 Concrete Pad
Sweeps
Concrete Pad
Primary
Operator
Position
Secondary
Operator
Position
Underground depth of the concrete
pad is determined by soil conditions
and local building codes. Reinforced
concrete recommended.
24” Concrete Pad Width
36” Concrete Pad Length
Concrete pad
MUST be level.
Note: Bevel the
edges of concrete
pad to eliminate
water puddling
under the operator.
4” minimum above ground
Conduit Location
24”
Approximate
Conduit Position
CAUTION
NEVER REMOVE HUB
after manual release.
• The conduit requirements are for a typical slide gate operator installation (the secondary operator is shown for those
applications where a secondary operator may be used). The conduit requirements for your application may vary from
this depending on your specific needs.
• Use only sweeps for conduit bends. Do not use 90° elbows as this will make wire pulls very difficult
and can cause damage to wire insulation.
• DoorKing recommends using 3/4-inch conduit.
• Be sure that all conduits are installed in accordance with local codes.
• Never run low voltage rated wire insulation in the same conduit as high voltage rated wire insulation.
Elbow
NO
Sweep
YES
Control and/or P.A.M.S. Wires (Low Voltage wire insulation)
Loop Lead-In Wires (Low Voltage wire insulation)
AC Input Power (High Voltage wire insulation)
DoorKing’s Primary/Secondary Interconnection Cable (Dual Operator Application Only)
(Secondary Power and Communication wires)
38”
Center Line
3”
Conduit
Area
13” x 6 1/2” Conduit
Area
21 1/4”
to
Center
of
Conduit
Area
6 1/2”
12”
6 1/2”
6 1/2”
29”
to
Center
of
Conduit
Area
13” x 7 1/2”
208/230/460
Step-Down
Transformer
Plate
Prior to beginning the installation of the swing gate operator, we suggest that you become familiar with the
instructions, illustrations, and wiring guide-lines in this manual. This will help insure that your installation is
performed in an efficient and professional manner compliant with UL 325 safety and ASTM F2200 construction
standards.
The proper installation of the vehicular swing gate operator is an extremely important and integral part of the
overall access control system.
Check all local building ordinances and building codes prior to installing
this operator. Be sure your installation is in compliance with local codes.
