6550-065-A-4-12 12

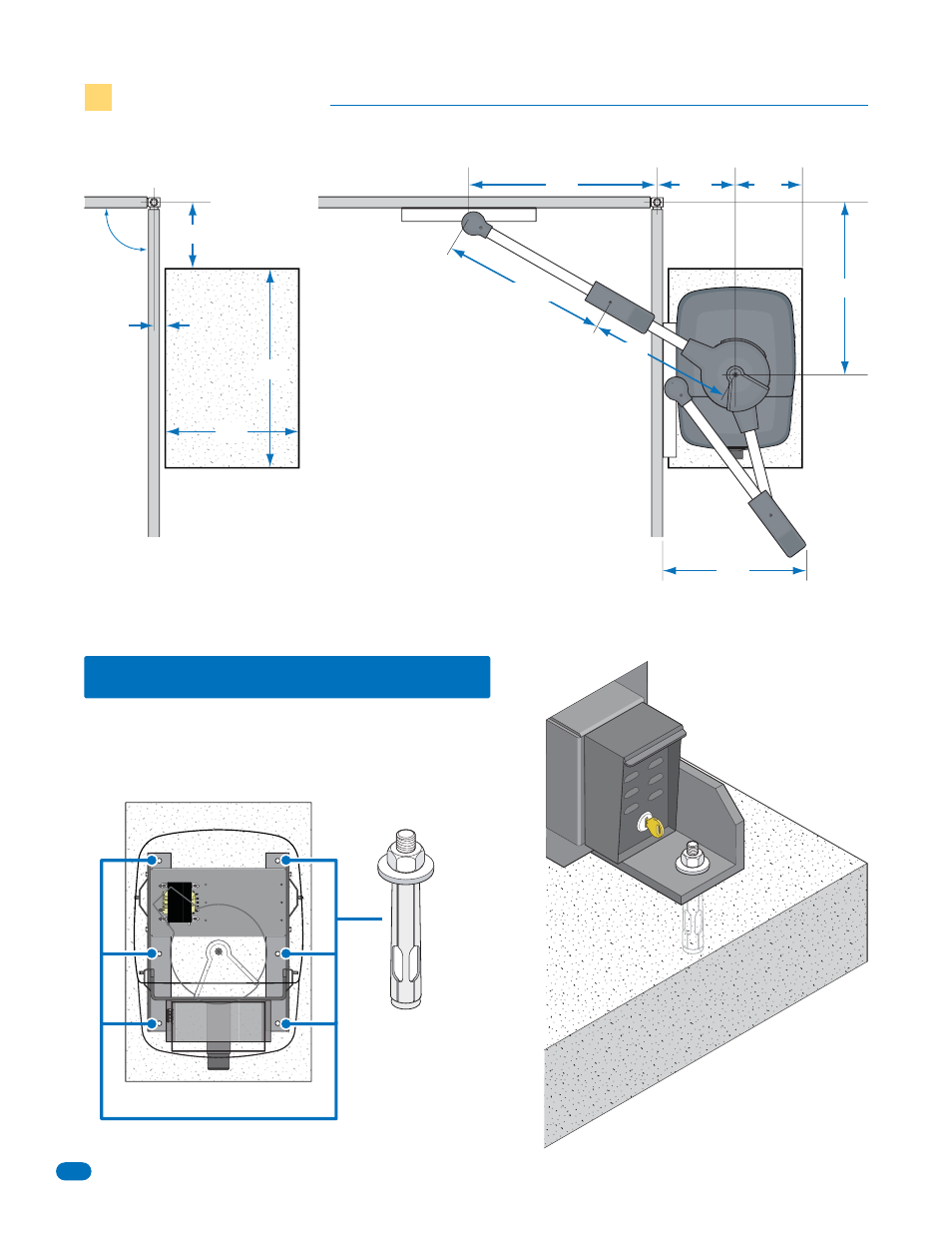

Compact Installation 3
90°
Concrete Pad Location
Operator Installation
Concrete Pad
34” 14” 12”
26”
30”
29.5”
24”
36”
12”
2”
26”
Recommended for gates up to 14 feet opening 90°.
Permanently attach the operator to the concrete pad using six
(6) 3/8” x 3” sleeve anchors (not supplied).
1.4 Securing Operator to Pad
Sleeve Anchor
(Not supplied)
3/8
208/230/460
Step-Down
Transformer
Plate
