3.2 Continued
Switch 1 Must OPEN the primary operator’s gate upon initial AC power up and open command. If the FIRST open command
begins to close the gate, turn AC power off and reverse this switch.
Switch 2 Must OPEN the secondary operator’s gate upon initial AC power up and open command. If the FIRST open command
begins to close the gate, turn AC power off and reverse this switch. This switch will be set the opposite of switch 1 (e.g. If
switch 1 is OFF, then switch 2 will be ON).
Switch 3 Determines that a device wired to terminal #4 is a normal full open command OR terminal #4 becomes the output
from the exit loop detector that is plugged into the EXIT Loop port in the circuit board (Used for specialized functions).
Switch 4 Turns the auto-close timer on or off. Maximum time that the close timer can be set for is approximately 23 seconds.
Switch 5 OFF setting is Standard Reverse for a CLOSING gate. An input to terminal #6 (e.g.: photo beam gets obstructed)
AND/OR reverse loops will stop and reverse the gate back to the full open position. If the auto-close timer is ON, when gate
reaches the open position, timer will not close the gate. Another input command is needed to reset and close the gate.
DO Not use the ON setting for the 6550 operator.
Switch 6 Sets up the circuit board for a single gate operator or primary / secondary (dual) gate operators.
Switches 7-8 These work in conjunction with each other and determine when the relay on the board will be activated. This relay
can be used as a switch for various functions such as illuminating a warning light when the gate is moving, or turning on a
green light when the gate is full open. This relay is not available for these uses if it is being used for the shadow loop function.
1 ON
2
3
4
5
6
7
8

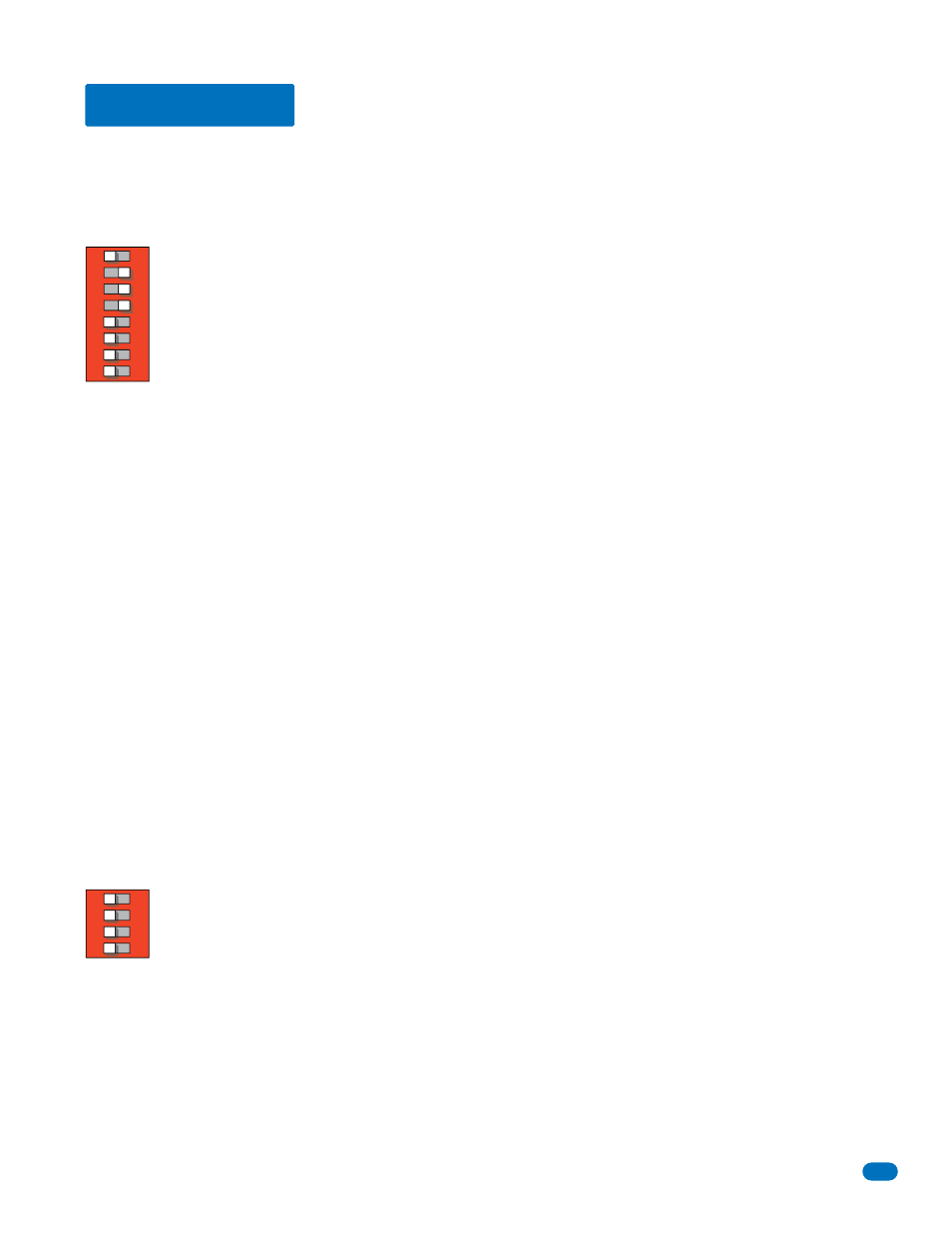

SW 1 (Top 8 Switches)
Typical
Settings
SW 2 (Bottom 4 Switches)
Typical
Settings
1 ON
2
3
4
Switch Definitions
Switch 1 When the gate overlap is OFF, the gate operator(s) will start the open and close cycles at the same time. This is the
normal setting for a single gate operator.
Turning the gate overlap ON when using dual gate operators will cause the secondary operator to start the open cycle 1.5
seconds before the primary operator. The primary operator will start the close cycle 1.5 seconds before the secondary opera-
tor.
Switch 2 If a magnetic lock is not used with the gate operator, leave this switch in the OFF position. Turn this switch ON if a
magnetic lock is used and connected to terminals 9 and 12. This applies magnetic lock power and logic to these terminals (NC).
Switch 3 MUST be turned OFF for the Model 6550.
Switch 4 MUST be turned OFF for the Model 6550.
