2.3 Bi-Parting Gates Wiring - Dual Gate Operators
1
Motor
2
Motor
3
Neutral
4
24V
AC
5
Limit
6
Spare
7
Limit
8
COM
1
Motor
2
Motor
3
Neutral
4
24V
AC
5
Limit
6
Spare
7
Limit
8
COM
Conduit
Secondary Operator Terminal
Conduit
Primary
Operator
Secondary
Operator
Primary Operator Control Board (4405)
•
Secondary operator contains
NO control board.
•
All loop detector, safety and access control devices
are wired to the primary operator.
Operator
Chassis
Ground
Primar
y/secondar
y
inter
connection cable
in underground conduit.
AC Power
Optional 3.3 Amp Heater Installation Note:
If the optional heaters are to be installed on the
operators, run two (AWG 16-600 volt insulation)
power wires through the interconnection cable conduit to
power the secondary operator’s heater. Refer to the instruction
sheet with the heater kit (P/N 6550-480) for more information.

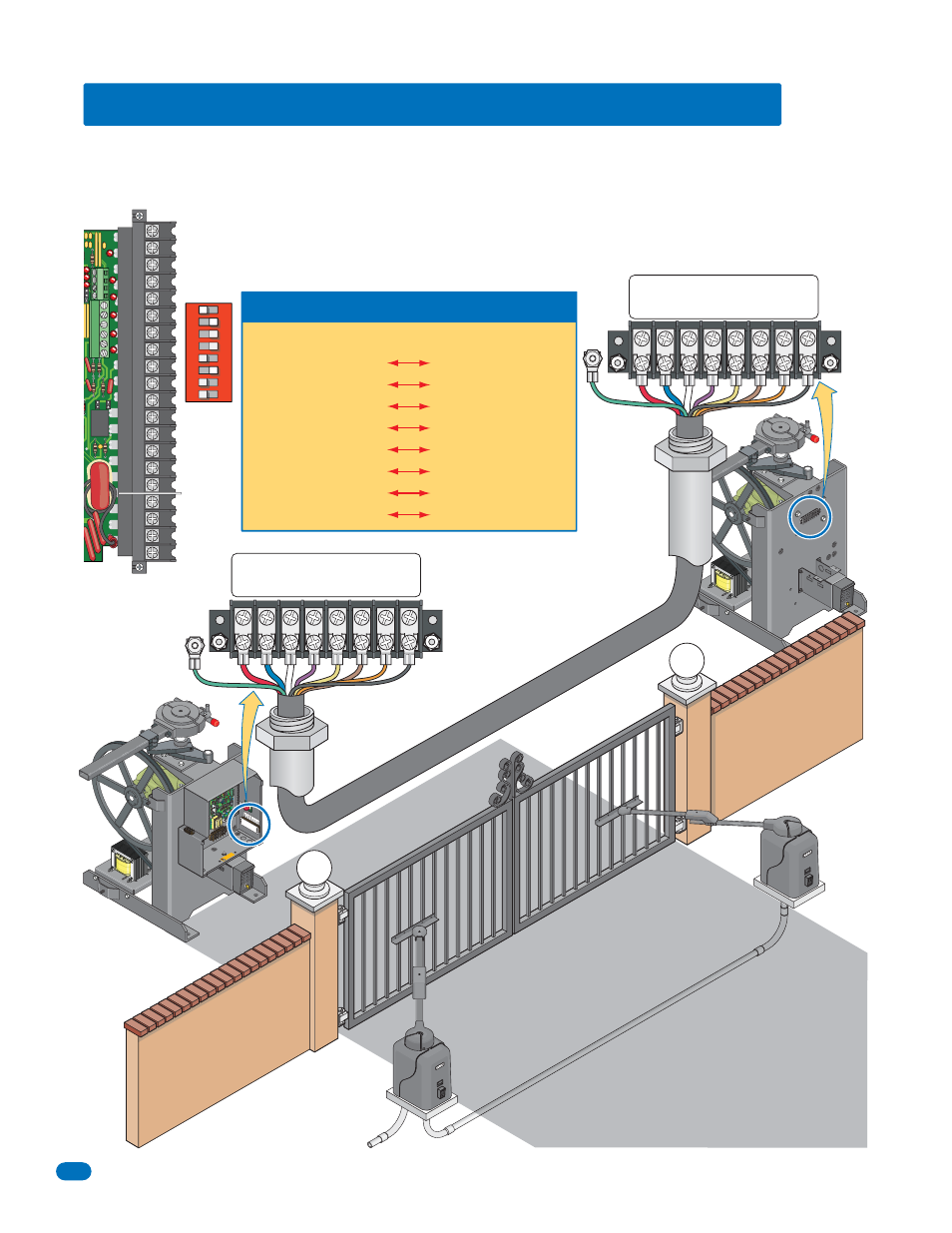

Connect the Primary/Secondary operators together with DoorKing’s interconnection cable as shown (Different lengths sold
separately). High voltage power and low voltage communications are supplied to the secondary operator by DoorKing’s UL
approved cable that is run in a single conduit. Two conduits (High voltage and low voltage) will need to be provided to the
secondary operator when NOT using DoorKing’s UL listed, wet environment interconnection cable.
(Red) Motor 1 High
(Blue) Motor 2 High
(White) Neutral 3 High
(Purple) 24VAC 4 Low
(Yellow) Limit 5 Low
(Brown) Spare 6 Low
(Orange) Limit 7 Low
(Gray) COM 8 Low
Motor 1 High (Red)
Motor 2 High (Blue)
Neutral 3 High (White)
24VAC 4 Low (Purple)
Limit 5 Low (Yellow)
Spare 6 Low (Brown)
Limit 7 Low (Orange)
COM 8 Low (Gray)
Secondary Operator
Primary Operator
Interconnection Cable Wiring
SW 1,
switches 1
and 2 will
be opposite
each other.
Switch 6
MUST be
ON, see
page 18.
1
ON
2
3
4
5
6
7
8
DoorKing’
s UL Listed (W
et Environment)
Primar
y/Secondar
y Interconnection Cable
30 feet: P/N 2600-755, 40 feet: P/N 2600-756, 50
feet: P/N 2
600-75
7
Primary Operator
8-Pin
Secondary
Interface
Terminal
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
SELF
TEST
NC
NO
1
2
3
4
5
6
7
8
9
13
12
11
10
14
15
16
17
18
19
20
4405
Chassis
Ground
AC power
conduit to primary
operator only.
