4.2 Entrapment and Safety Protection Device Locations

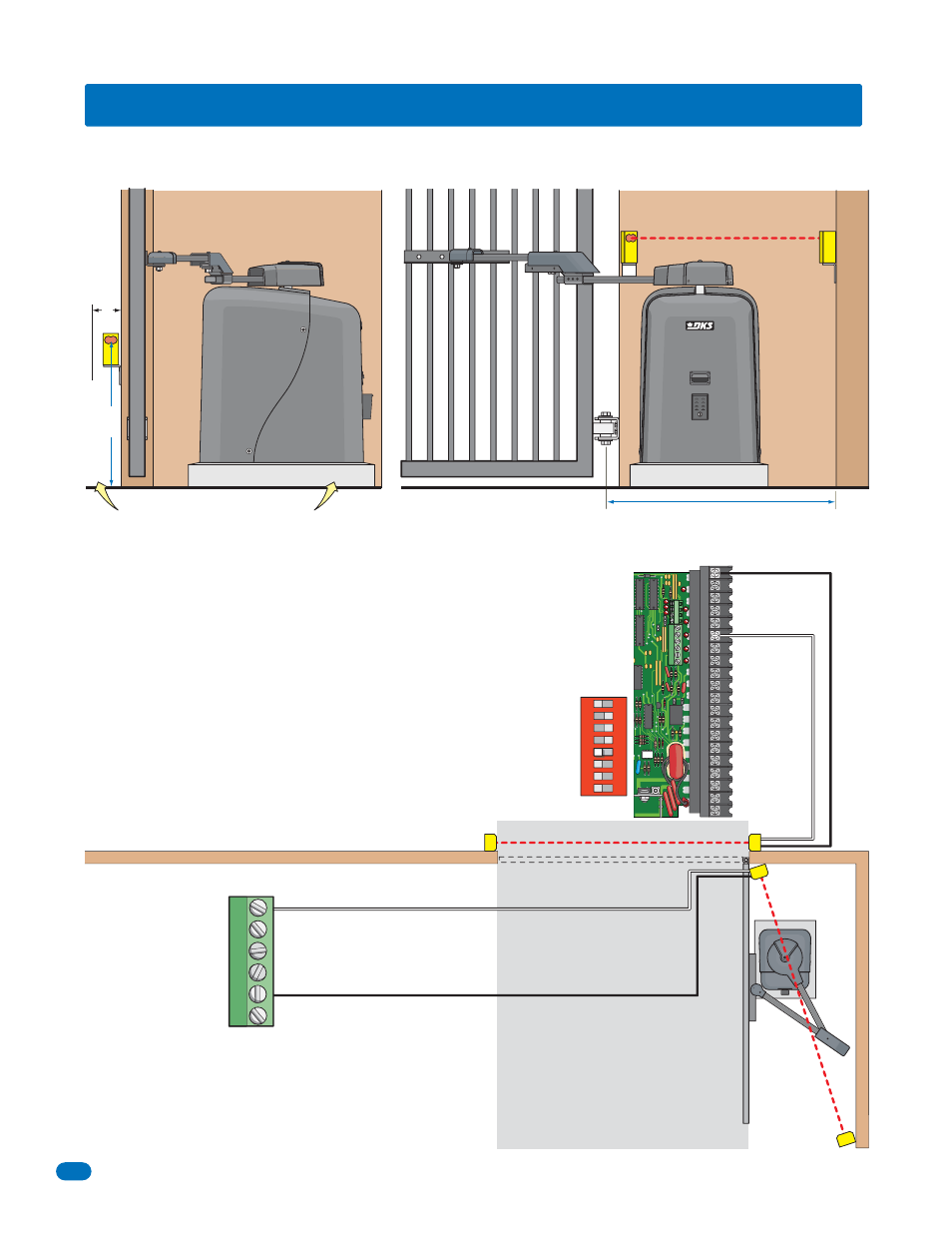

Photo Sensors Sample Setup
Typical UL Photo Sensor mounting height and distance away from gate.
Opening-Direction Photo Sensors Closing-Direction Photo Sensors
Wall
UL sensor mounted just
above top of operator
Normally Open
Common
Common
Normally Open
“Reverse” Closing-Direction Option
SW 1
1 ON
2
3
4
5
6
7
8
SW 1, switch 5
MUST be OFF.
If this space is less than 16 inches,
secondary entrapment protection
is required in this area.
or less
5”
Gate Frame (Closed) Gate Frame (Closed)
21”
Typical
Opened Gate
Wall
Opening-Direction
Photo Beam
Closing-Direction Photo Beam
Closed Gate
NC NO
1
2
3
4
5
6
7
8
9
13
12
11
10
14
15
16
17
18
19
20
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
543
2
1
4405-010
Photo Sensor Power Note: Photo sensors can be powered by the
built-in convenience outlets located on the operator (See previous page).
6-Pin UL 325 Terminal Wiring
1
2
3
4
5
6
OPEN Entrapment Sensor
CLOSE Entrapment Sensor
Not Used
Not Used
Low Voltage Common
Low Voltage Common
IF the closing-direction photo sensor is wired to the UL 325
terminal #2, a closing-direction photo beam that gets obstructed
will STOP the gate then resume closing the gate when the
obstructed photo beam has been cleared (Typically not used).
IF the closing-direction photo sensor
is wired to the #6 main terminal, a
closing-direction photo beam that gets
obstructed will REVERSE the gate back
to the open position (Typical).
This diagram is for illustration
purposes. The actual placement of the
protection devices is dependent on the
specific installation requirements.
