3 bi-parting gates wiring - dual gate operators, Primary operator control board (4405), Interconnection cable wiring – Controlled Products Systems Group 6550-080 User Manual

Page 18: Secondary operator terminal, Primary operator secondary operator, Secondary operator primary operator, Conduit, Ac power conduit to primary operator only

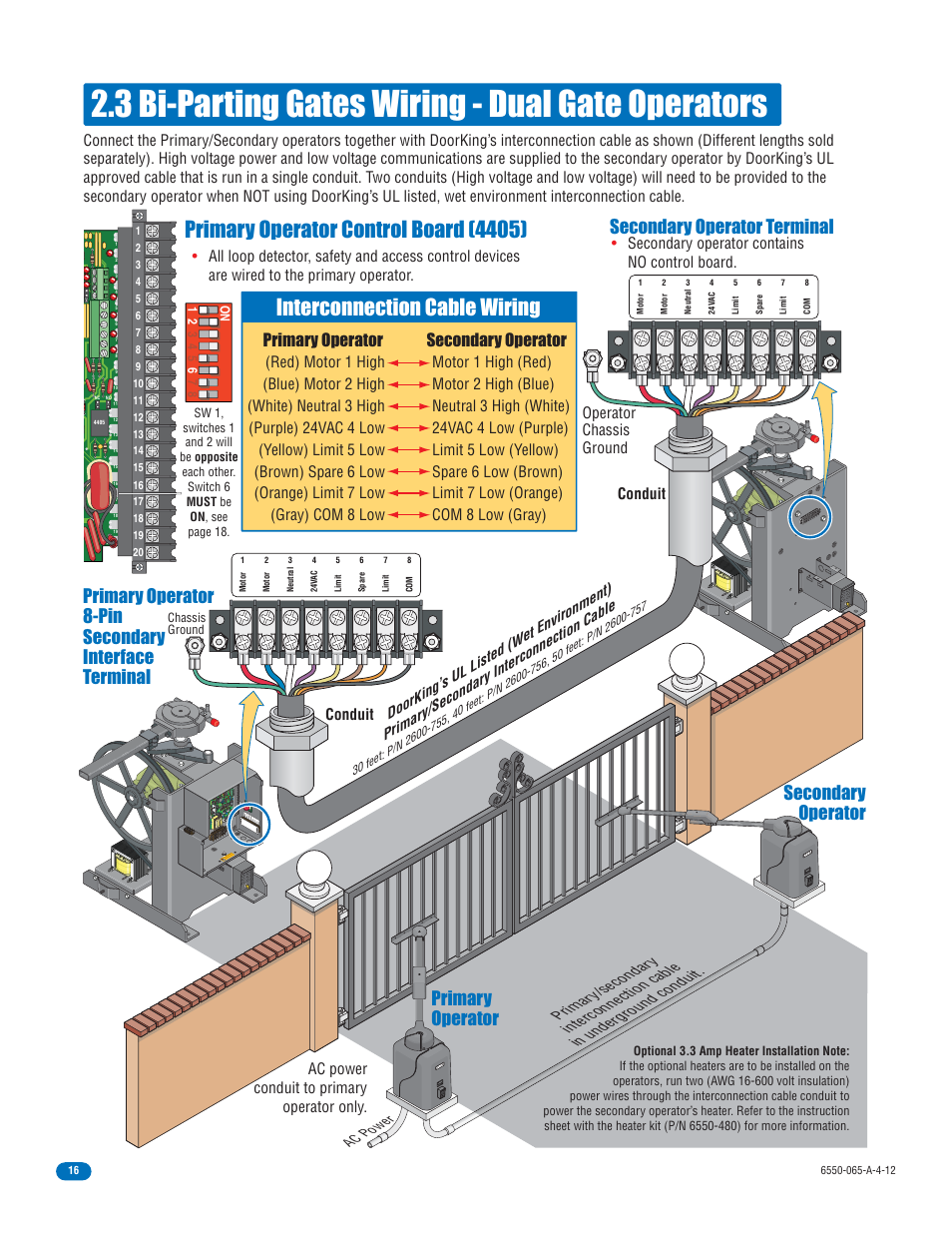

3 bi-parting gates wiring - dual gate operators, Primary operator control board (4405), Interconnection cable wiring | Secondary operator terminal, Primary operator secondary operator, Secondary operator primary operator, Conduit, Ac power conduit to primary operator only | Controlled Products Systems Group 6550-080 User Manual | Page 18 / 42 3 bi-parting gates wiring - dual gate operators, Primary operator control board (4405), Interconnection cable wiring | Secondary operator terminal, Primary operator secondary operator, Secondary operator primary operator, Conduit, Ac power conduit to primary operator only | Controlled Products Systems Group 6550-080 User Manual | Page 18 / 42
