6.8.10 Central Tie Line Bad

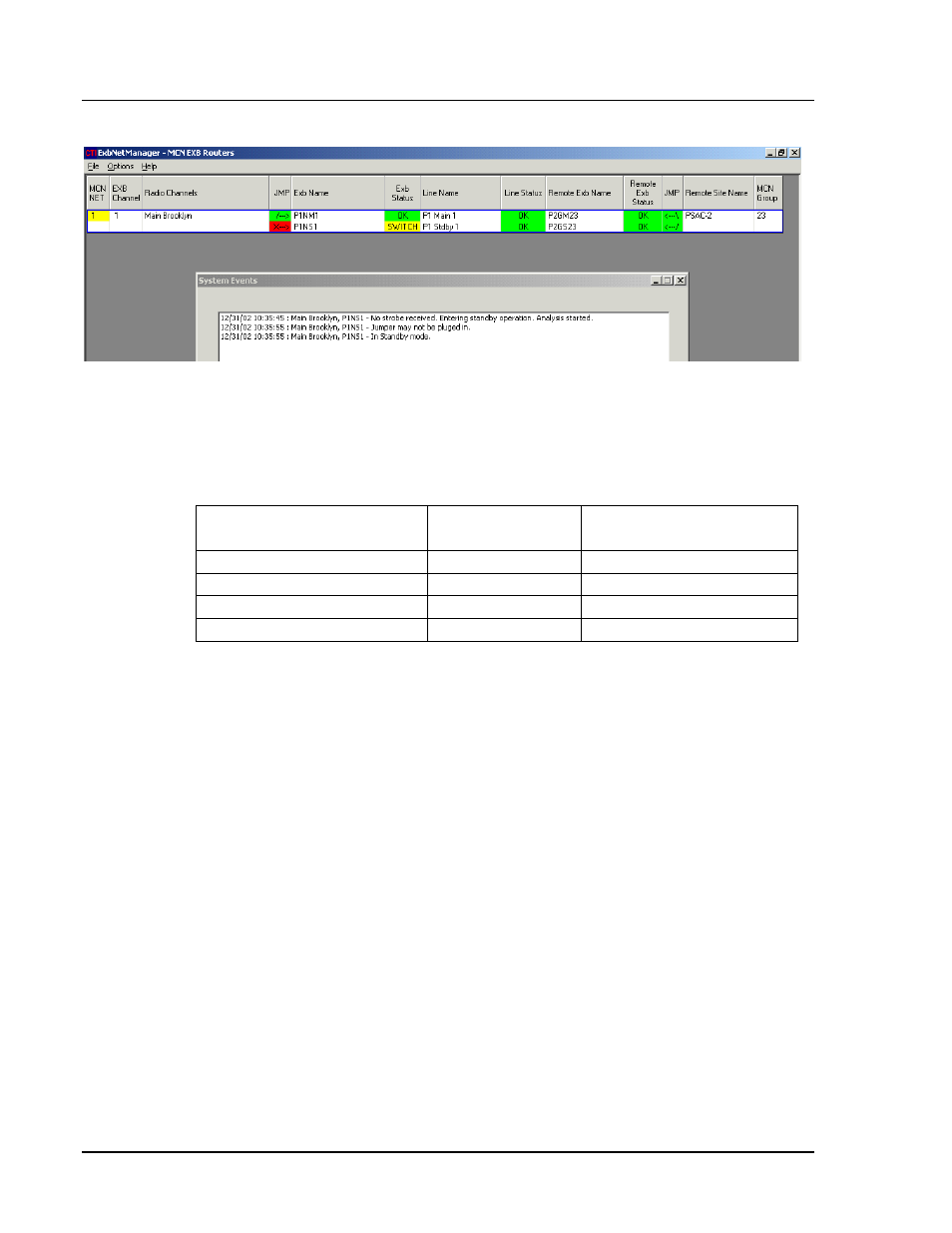

Figure 36 Central Tie Line Bad
Since the loop is not complete, the Standby EXB turns on its network switch to
pass traffic over the Standby WAN line.
In this condition, the program can talk to the units as follows:
EXB Forward
(Clockwise) Reverse
(Counter-Clockwise)
Main (Central) Yes No
Remote Main Yes No
Remote Standby Yes No
Standby (Central) Yes No
Based upon this, the program determines that the Central Tie Line to the Standby
EXB unit is bad.
Note that if the MCNRCD PCs at the central site are connected to the Standby
EXB, they may actually be receiving data via the Standby path.
Other possible causes for this display could be:
1. Bad MCN Network port on the Standby EXB unit.
