CTI Products EXB Network Manager User Manual
Page 19
Hot-Standby EXB / Network Manager Software Manual
Configuration
CTI Products, Inc.
Program
15
68-11707-100
Note that "Near" and "Far" refer to the sides of the internal router that are closer or
further from the EXB Network Management Software PC.
5.3 Configuration Program Operation
When the program is started, it will come up in one of two states:
1. A Blank screen if MCNChannels.dat is missing or blank
2. A screen with channel information if MCNChannels.dat has valid data.

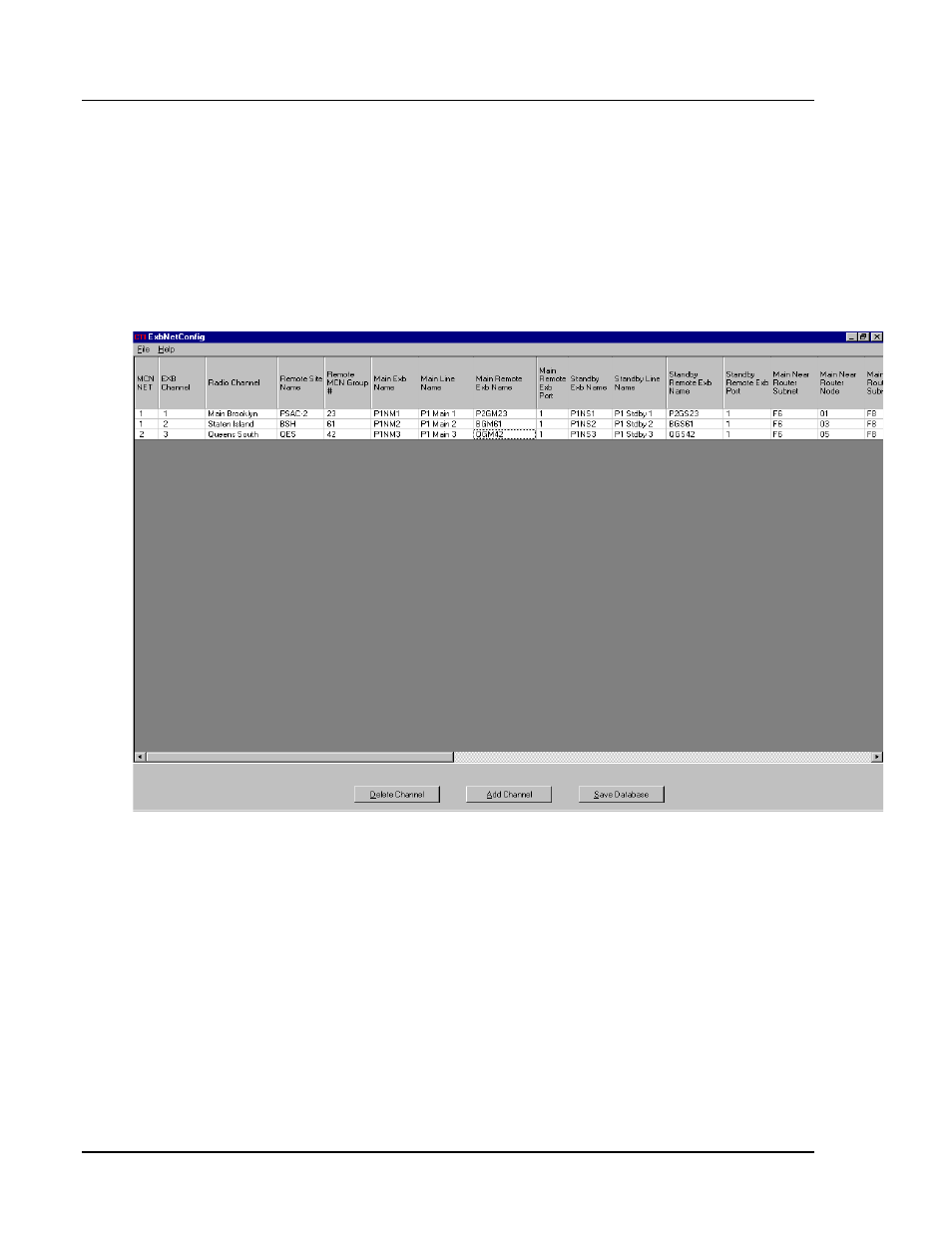

Figure 6 Typical Configuration Screen
5.3.1 Navigating in the Program
The program functions like a typical Windows program.
To move between cells, use the mouse or arrow keys
To see a portion of the database that is off the screen, use the Scroll bar(s).
To access menu functions, use the mouse hit Alt-F (for File) or Alt-H (for
Help).
To access the bottom buttons, click on them with a mouse or hit the Ctrl key
along with the indicated shortcut.
