CTI Products EXB Network Manager User Manual
Page 37
Hot-Standby EXB / Network Manager Software Manual
Network Manager
CTI Products, Inc.
Program Operation
33
68-11707-100
6.8.3 Main WAN Line Disconnected

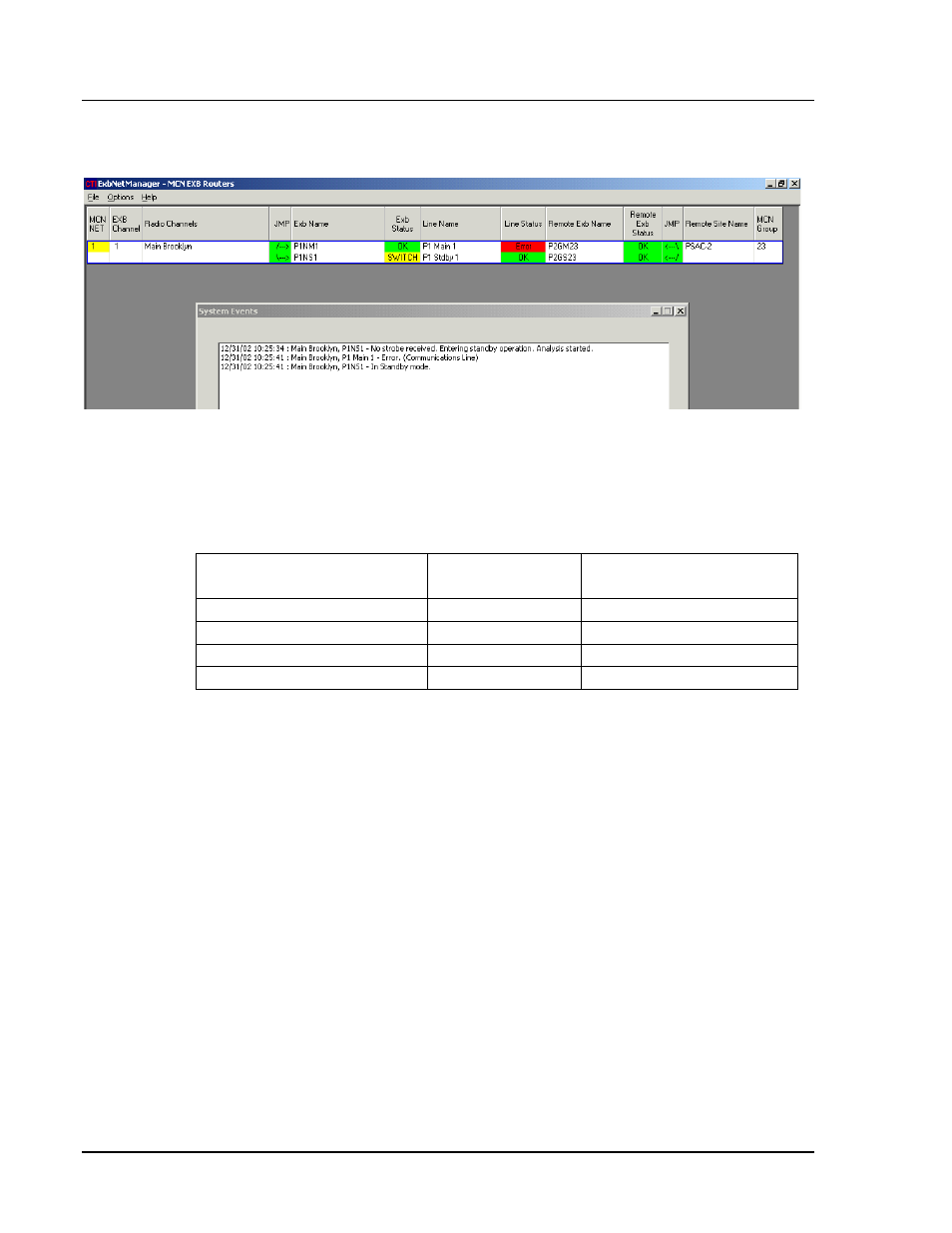

Figure 29 Main WAN Line Disconnected
Since the loop is not complete, the Standby EXB turns on its network switch to
pass traffic over the Standby WAN line.
In this condition, the program can talk to the units as follows:
EXB
Forward
(Clockwise)
Reverse
(Counter-Clockwise)
Main (Central)
Yes
No
Standby (Central)
No
Yes
Remote Standby
No
Yes
Remote Main
No
Yes
Based upon this, the program determines that the Main WAN Line is bad.
Other possible causes for this display could be:
1. A bad cable from one of the EXBs to the Main WAN line.
2. Bad Main Central or Main Remote EXB Module.
Possibly a bad modem in an Analog / Telco EXB unit
Possibly a bad serial port on a Serial EXB unit.
