2.3 Normal Link Condition

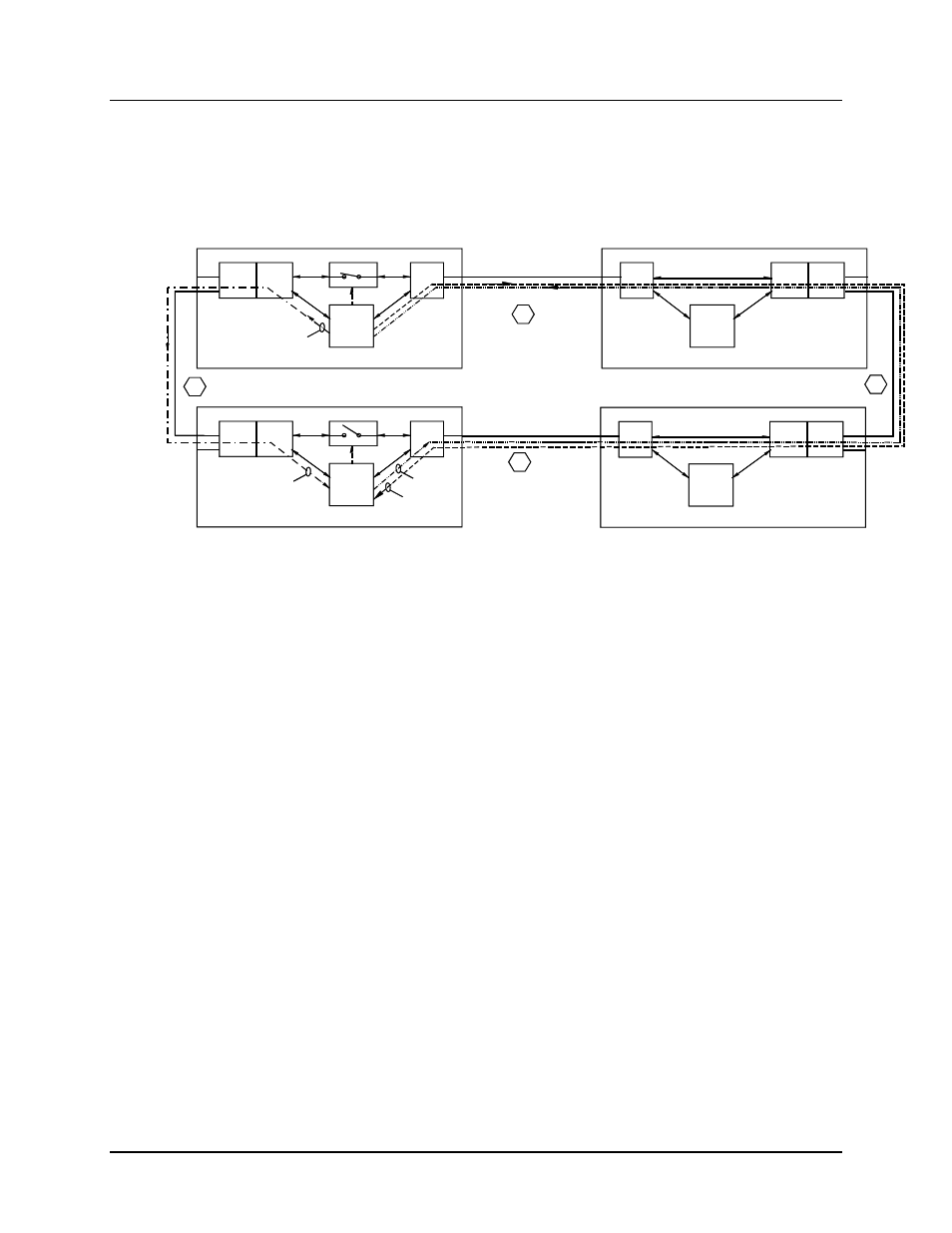

Figure 2 Normal Link Operation
In Normal Operation:
1. The Main EXB Control Neuron issues a Probe packet to the Standby EXB
Control Neuron
2. The Standby Control Neuron returns a Probe ACK.
3. When the Main EXB Control Neuron receives the Probe ACK, it issues a Holdoff
packet to the Standby EXB Control Neuron.
3a The Standby EXB Control Neuron will return a Holdoff ACK (not shown)
4. Since the Standby EXB Control Neuron received both a Probe and a Holdoff
packet, it keeps its switch open and does not pass normal MCN traffic to or from
the remote site.
