CTI Products EXB Network Manager - Manual (Page 30)

Hot-Standby EXB / Network Manager Software Manual Network Manager
CTI Products, Inc. Program Operation
26
68-11707-100
6.3.1 Select Printer
The Select Printer dialog box allows you to select either a local or a network
printer. Typically, dot-matrix line printers are used, since error events are only a
few lines long and do not generate a whole sheet of data.
Navigate to the desired printer and hit the Select button.

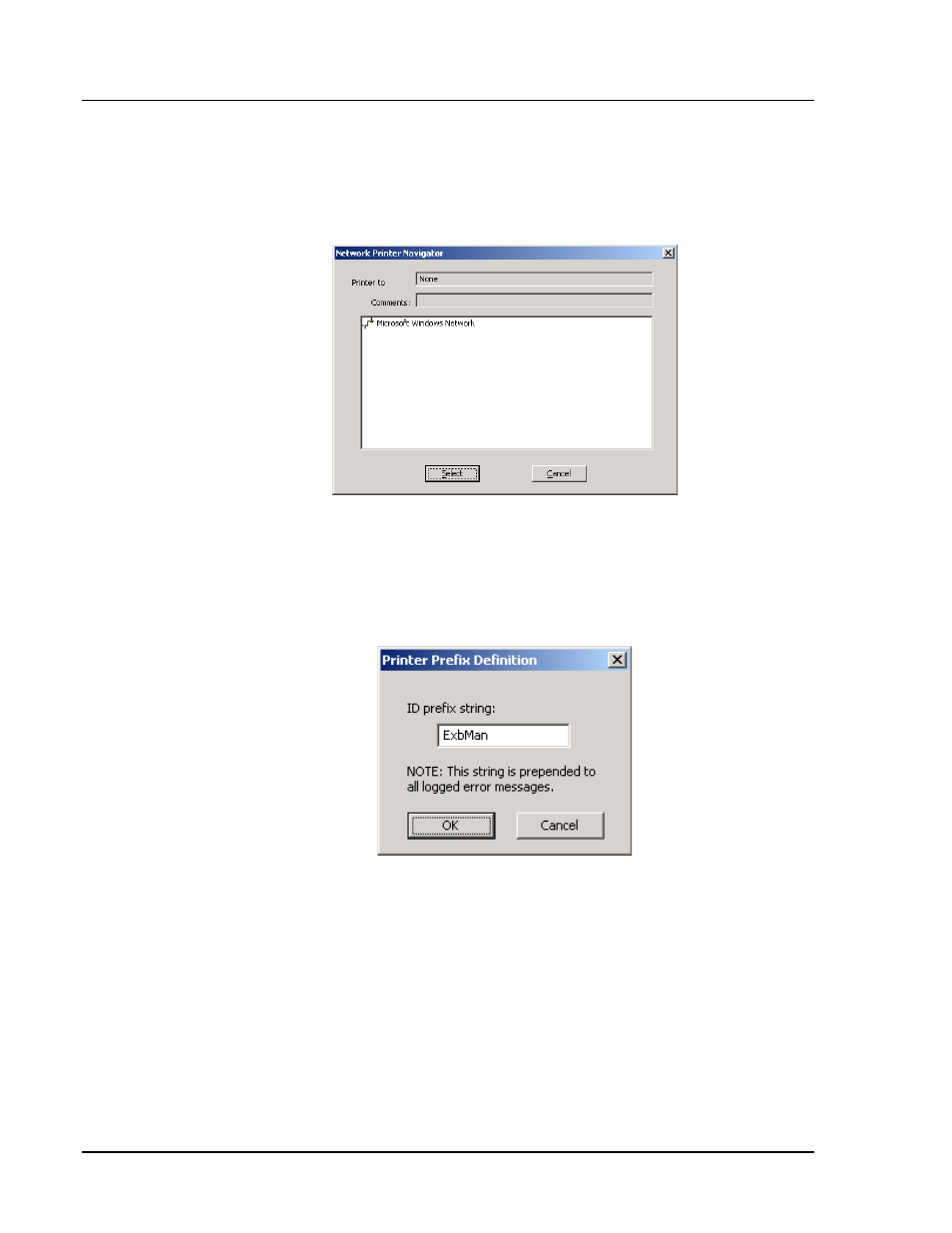

Figure 18 Selet Printer Dialog Box
6.3.2 Set Identification Prefix
If the program is using a shared printer, you may wish it to send an identification
prefix before each line of data. In this way, you can tell which PC each line of
data came from. Use the Set Identification Prefix dialog box for this purpose.
Figure 19 Set Identification Prefix Dialog Box
